Part Number # CA3SK20BD
SKU # 206278
CA3SK20BD

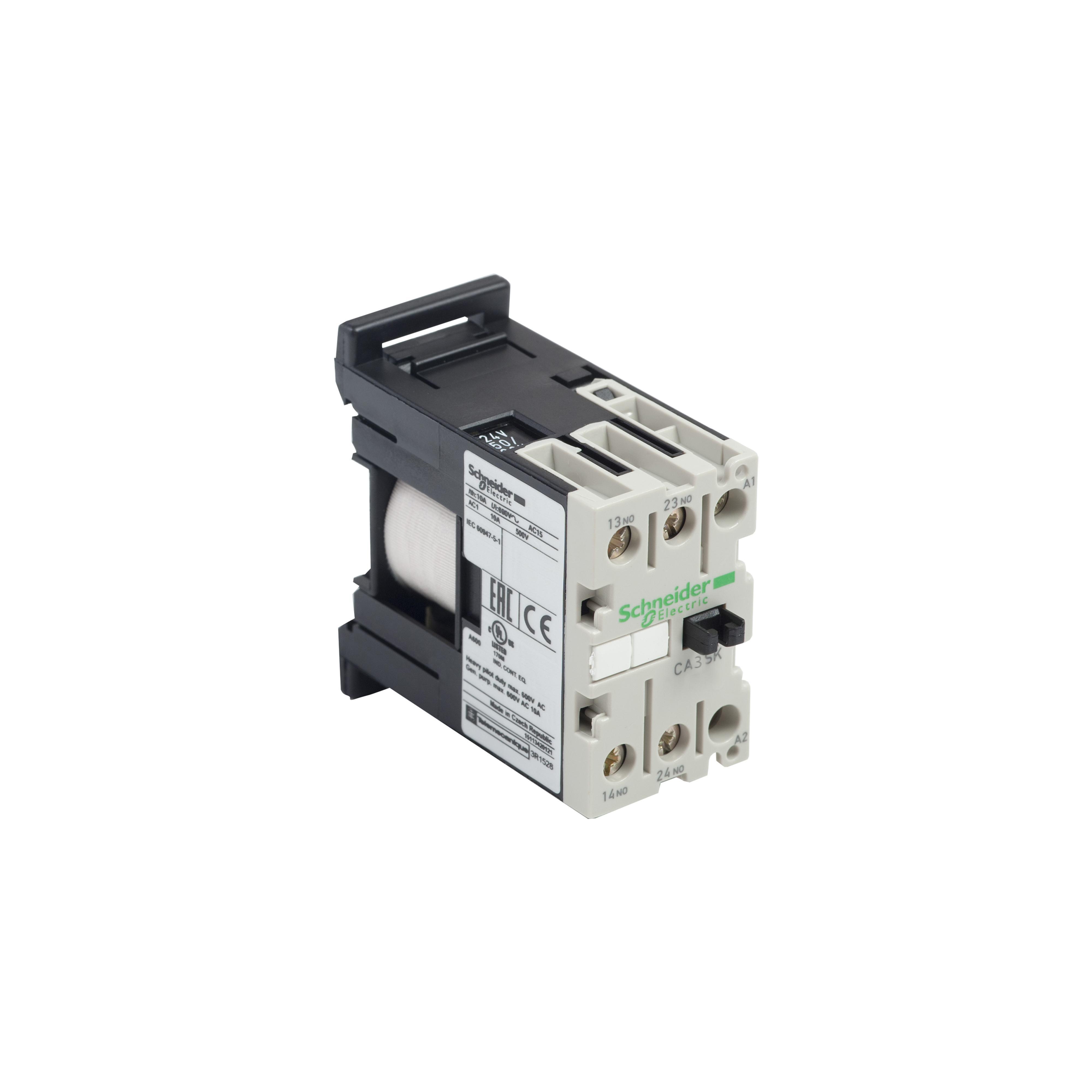

Schneider Electric CA3SK20BD Tesys Control Relay
Part Number # CA3SK20BD
SKU # 206278
Schneider Electric CA3SK20BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CA3SK20BD |
| SKU #: | 206278 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 2NO, 2NO 2 Form A |
| Contact Rating: | 10 A at 690 V AC, 10 A at 690 VAC |
| Dimensions: | 27 mm W x 55.5 mm D x 56 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Number of Poles: | 2 |
| Series: | SK Series |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Terminal Type: | Screw Clamp |
| Country of origin: | CZ |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901866756 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric CA3SK20BD Tesys Control Relay
Brand: Schneider Electric
Part Number: CA3SK20BD
Schneider Electric Square D TeSys Control Relay, Series: SK Series, 10 A, 2.2 W Power, 400 Hz Frequency, 24 VDC Coil, 2NO Contact Form, 10 A at 690 VAC Contact, 2 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -20 to 50 deg C, 27 mm W x 55.5 mm D x 56 mm H Dimensions
Additional Description: SQD -CA3SK20BD RELAY
Catalog Description: Control relay, TeSys SK, 2NO, <= 690V, 24V DC standard coil
CA3SK20BD Application
Control Circuit ApplicationsCA3SK20BD Item Features
- 10 A at 120/240/480/600 VAC, 0.2 A at 240 VDC, 0.8 A at 110 VDC, 2 A at 60 VDC, 3 A at 24 VDC contact rating
CA3SK20BD Standards
CSA File No. LR43364 Class 321103|cULus Listed|IEC Certified|RoHS Compliant|UL File No. E148.39|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #206278Part Number #CA3SK20BDUNSPSC39122331UPC00785901866756
Image provided may only be a representation of final product and may include optional equipment
