CAD326U7

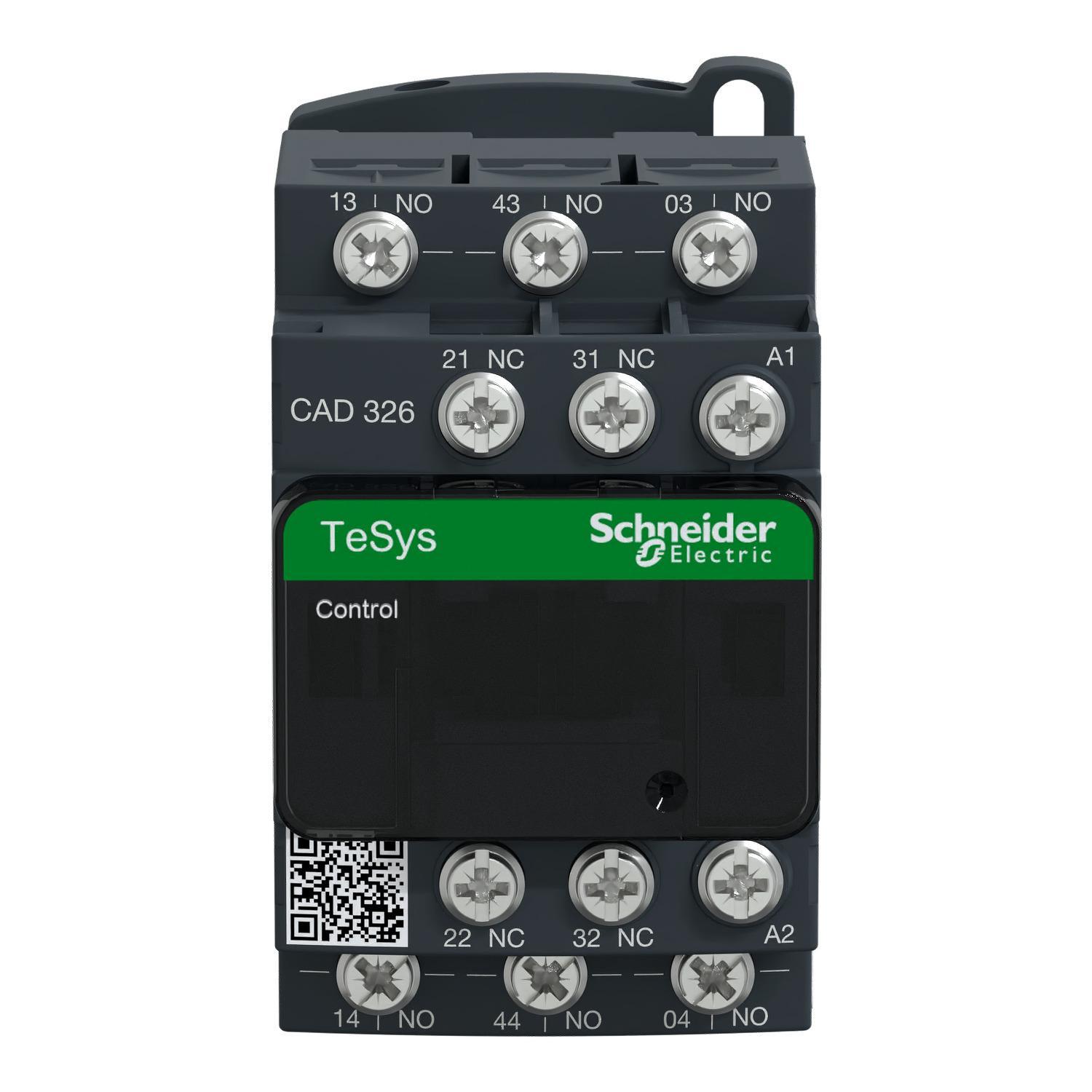

Schneider Electric CAD326U7
Part Number # CAD326U7
SKU # 2461961
$124.93 / Each
Schneider Electric CAD326U7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD326U7 |
| SKU #: | 2461961 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 240 V AC |
| Contact Form: | 3NO-2NC 3 Form A/2 Form B |
| Contact Rating: | 140 A at 690 V AC/250 A at 690 V DC |
| Dimensions: | 45 mm W x 84 mm D x 77 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60 Hz |
| Series: | CAD Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Country of origin: | US |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901448631 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$124.93 / Each
Quantity:
- Schneider Electric Square D TeSys D Control Relay, Series: CAD Series, 10 A, 8 VA Power, 50/60 Hz Frequency, 240 V AC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 140 A at 690 VAC/250 A at 690 VDC Contact, DIN Rail/Surface Mounting, IP2X Enclosure, -40 to 70 deg C, 45 mm W x 84 mm D x 77 mm H Dimensions
CAD326U7 Application
For industrial applicationCAD326U7 Item Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD326U7 Standards
BS 4794|CSA Certified|ECCN: EAR99|EN 60947-5|IEC 60947-5-1|NF C63-140|Green Premium|RoHS Compliant|UL Listed|VDE 0660|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.govSKU #2461961Part Number #CAD326U7UNSPSC39122331UPC00785901448631
Image provided may only be a representation of final product and may include optional equipment
