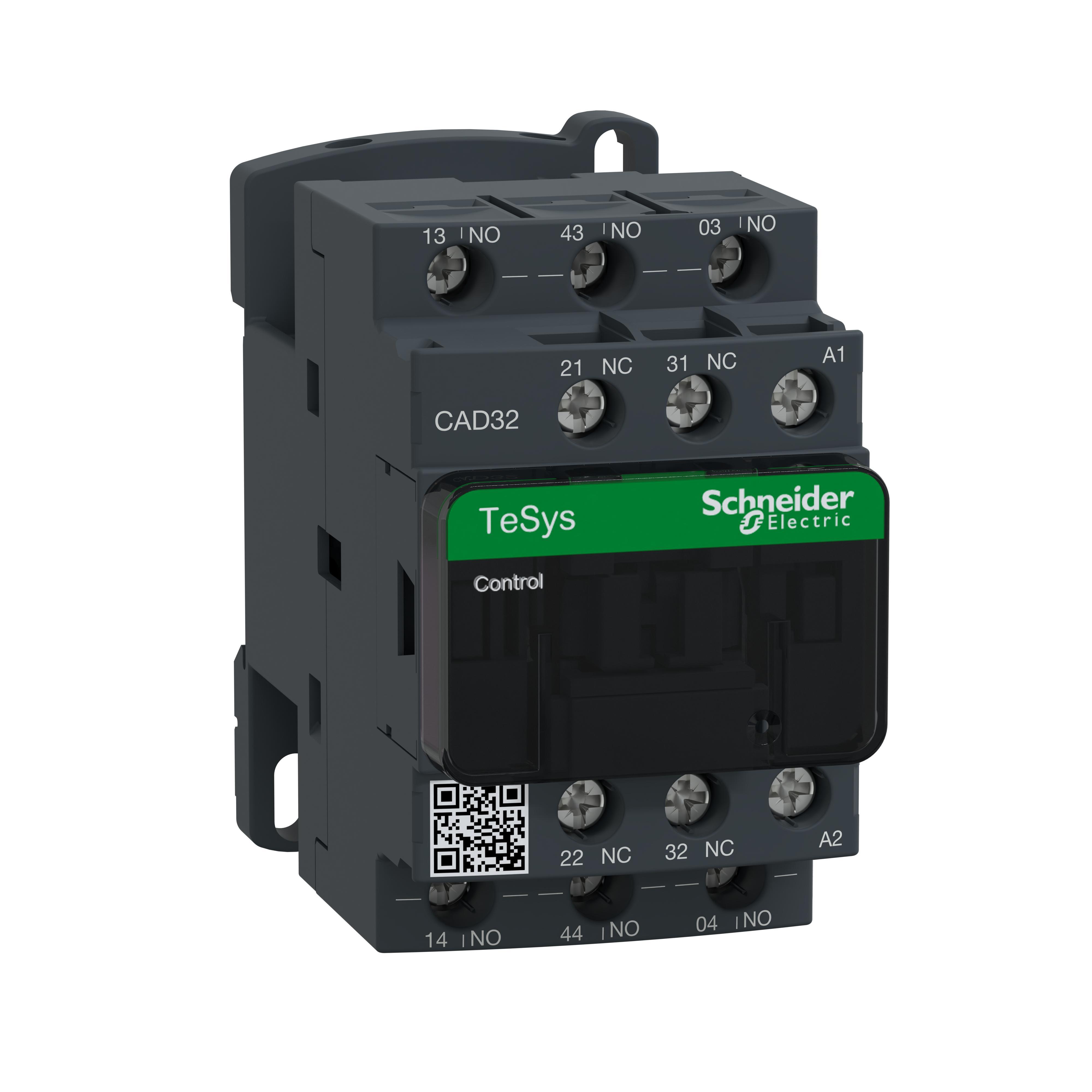

Schneider Electric CAD32B7 Tesys Control Relay
Part Number # CAD32B7
SKU # 934305
CAD32B7
Schneider Electric CAD32B7 Tesys Control Relay
Part Number # CAD32B7
SKU # 934305
$83.28 / Each
Schneider Electric CAD32B7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD32B7 |
| SKU #: | 934305 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC |
| Contact Form: | 3NO-2NC 3 Form A/2 Form B |
| Contact Rating: | 10 A at 600 V AC |
| Dimensions: | 45 mm W x 84 mm D x 77 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400 Hz |
| Number of Poles: | 3 |
| Series: | D Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw Clamp |
| Type: | Coil Standard |
| Country of origin: | US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901204800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.28 / Each
Quantity:
- Schneider Electric Square D TeSys Control Relay, Coil Standard, Series: D Series, 10 A, 70 VA Power, 400 Hz Frequency, 24 V AC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 10 A at 600 VAC Contact, 3 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 45 mm W x 84 mm D x 77 mm H Dimensions
CAD32B7 Application
For use with control circuit applicationsCAD32B7 Item Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD32B7 Standards
CE Certified|CSA Certified|CSA File No. LR43364 Class 3211 03|ECCN EAR99|IEC Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164353 CCN NKCR|UL Listed|VDE 0106SKU #934305Part Number #CAD32B7UNSPSC39122331UPC00785901204800
Image provided may only be a representation of final product and may include optional equipment
