CAD32BL

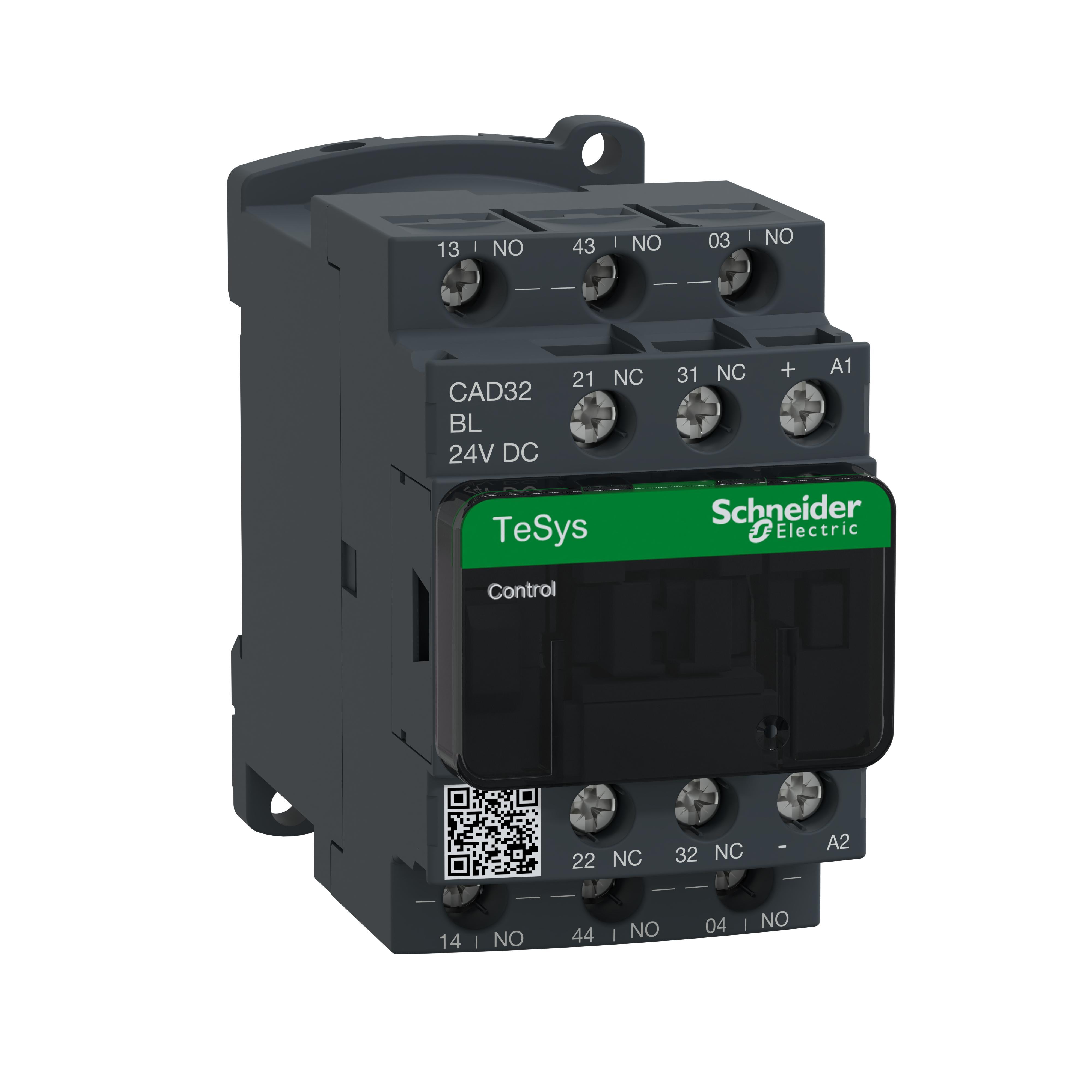

Schneider Electric CAD32BL Tesys Control Relay
Part Number # CAD32BL
SKU # 2252238
$145.89 / Each
Typical price:$147.74 / Each
Schneider Electric CAD32BL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD32BL |
| SKU #: | 2252238 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 3NO-2NC, 3NO-2NC 3 Form A/2 Form B |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Dimensions: | 1.77 in W x 3.66 in D x 3.03 in H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Series: | D Series |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw Clamp |
| Country of origin: | ID |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901407089 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.89 / Each
Typical price:$147.74 / Each
Quantity:
- Schneider Electric Square D TeSys Control Relay, Series: D Series, 10 A, 2.4 W Power, 400 Hz Frequency, 24 VDC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 10 A at 600 V AC Contact, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 1.77 in W x 3.66 in D x 3.03 in H Dimensions
CAD32BL Application
Control Circuit ApplicationsCAD32BL Item Features
- 690 VAC conforming to IEC 60947-5 1, 600 VAC certifications UL, 600 VAC certifications CSA rated insulation voltage
- 65 to 88 ms coil energization and no closing, 14 to 25 ms coil de-energization and no opening, 57 to 77 ms coil energization and NC opening, 28 to 42 ms coil de-energization and NC closing operating time
- 180 cycles/min operating rate
- 17 VAC minimum switching voltage
- 5 mA minimum switching current
- 6 kVAC conforming to IEC 60947 rated impulse withstand voltage
- -76 to 176 deg F storage temperature
- 690 VAC system voltage
CAD32BL Standards
BS 4794|CCN NKCR|CE Marked|CSA Certified|CSA File No. LR43364 Class 321103|ECCN: EAR99|EN/IEC 60947-5|IEC 60947-5-1|NFC 63-140|RoHS Compliant|UL File No. E164353|UL Listed|VDE 0660|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2252238Part Number #CAD32BLUNSPSC39122331UPC00785901407089
