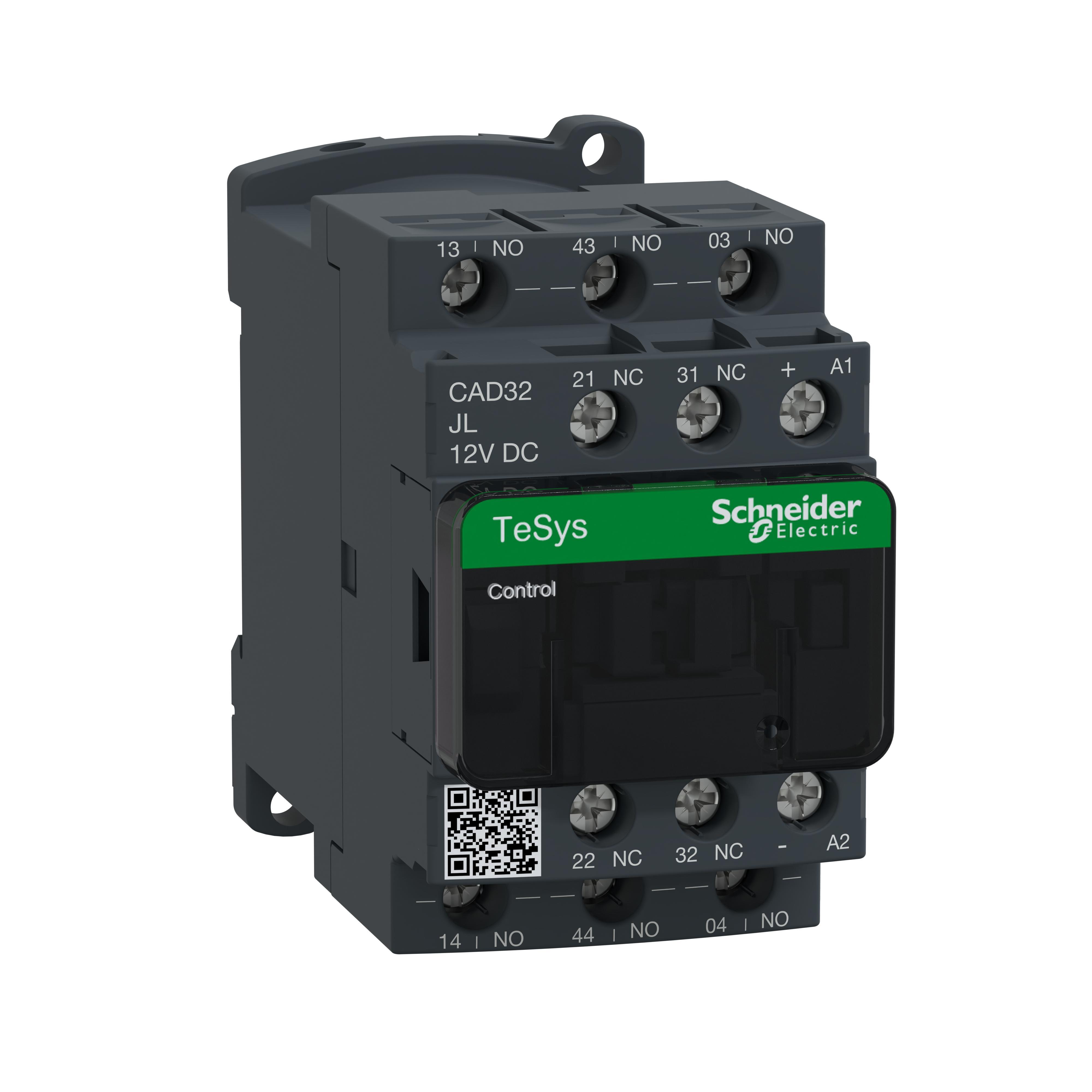

Schneider Electric CAD32JL Iec Control Relay
Part Number # CAD32JL
SKU # 2210366
CAD32JL
Schneider Electric CAD32JL Iec Control Relay
Part Number # CAD32JL
SKU # 2210366
Schneider Electric CAD32JL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD32JL |
| SKU #: | 2210366 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 12 V DC |
| Contact Form: | 3NO-2NC 3 Form A/2 Form B |
| Dimensions: | 3.03 in H x 1.77 in W x 3.66 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 5 |
| Series: | TeSys D |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw Clamp |
| Country of origin: | MX |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901407102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric CAD32JL Iec Control Relay
Brand: Schneider Electric
Part Number: CAD32JL
Schneider Electric Square D IEC Control Relay, Series: TeSys D, 10 A, 2.4 W Power, 50/60 Hz Frequency, 12 V DC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 5 Pole, Plate/Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 3.03 in H x 1.77 in W x 3.66 in D Dimensions
Additional Description: SQD -CAD32JL (N) TeSys AUXILIARY CONTACTOR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 12 V DC low consumption coil
CAD32JL Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCAD32JL Item Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD32JL Standards
RoHS Compliant|REACH Compliant|UL File No. 164353|CCN NKCR|CSA File No. LR43364|CLASS:3211 03|CE Certified|VDE 0660|IEC 60947-5-1|NF C 63-140|BS 4794|EN 60947-5|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2210366Part Number #CAD32JLUNSPSC39122331UPC00785901407102
Image provided may only be a representation of final product and may include optional equipment
