Part Number # CAD32V7
SKU # 2278005
Image Disclaimers Message
CAD32V7

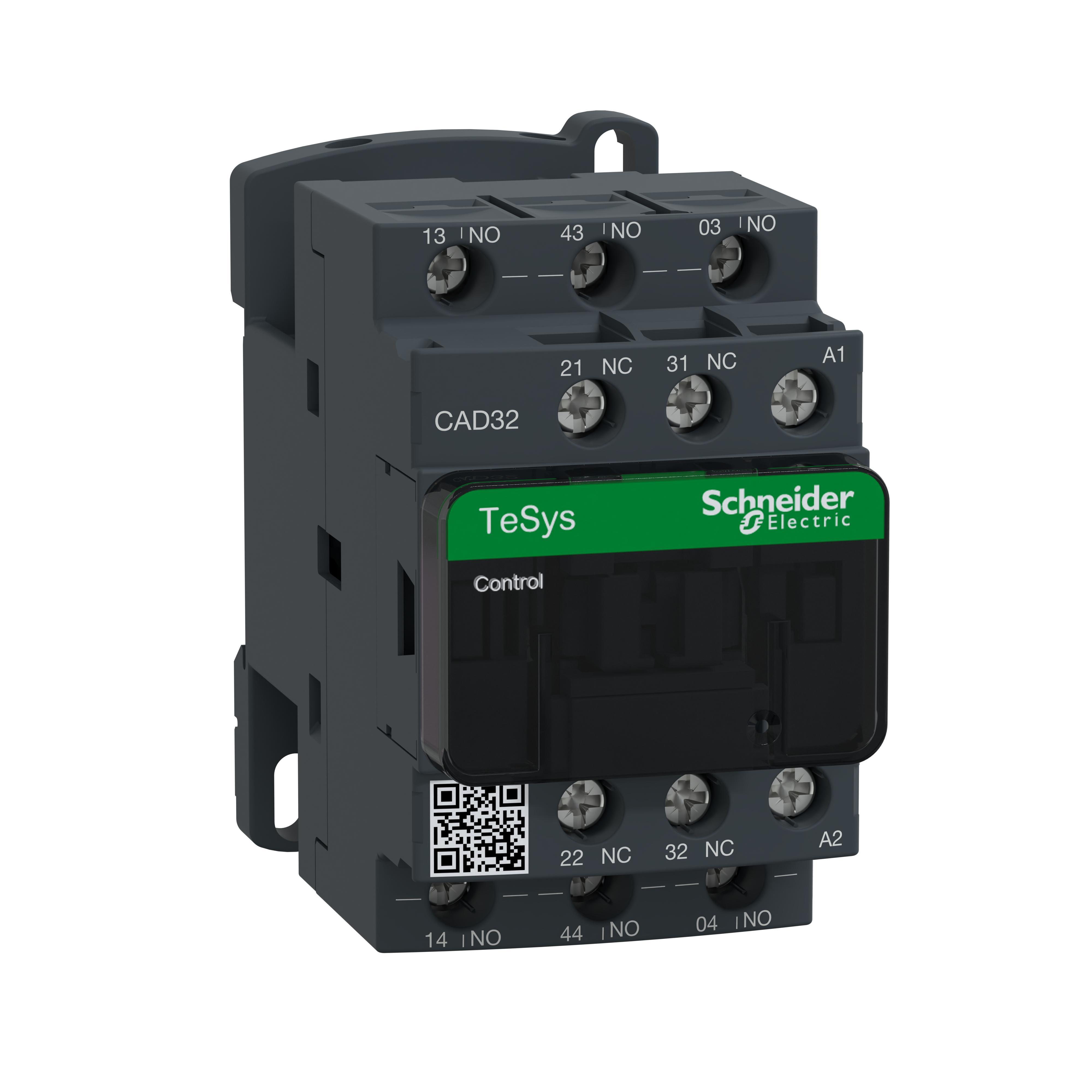

Schneider Electric CAD32V7 Iec Control Relay
Part Number # CAD32V7
SKU # 2278005
$82.24 / Each
Typical price:$83.28 / Each
Schneider Electric CAD32V7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD32V7 |
| SKU #: | 2278005 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 400, 400 V AC, 400 VAC |
| Contact Form: | 3NO-2NC, 3NO-2NC 3 Form A/2 Form B |
| Dimensions: | 3.03 in H x 1.77 in W x 3.31 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 5 |
| Series: | TeSys D, TeSys™ D |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | FR, ID |
| Mounting type: | Front/Plate Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901583707 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.24 / Each
Typical price:$83.28 / Each
Quantity:
- Schneider Electric Square D IEC Control Relay, Series: TeSys D, 10 A, 8/70 VA Power, 50/60 Hz Frequency, 400 V AC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 5 Pole, Front/Plate Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 3.03 in H x 1.77 in W x 3.31 in D Dimensions
CAD32V7 Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCAD32V7 Item Features
- 70 VA inrush and 8 VA hold-in power rating
CAD32V7 Standards
RoHS Compliant|REACH Compliant|UL File No. 164353|CCN NKCR|CSA File No. LR43364|CLASS:3211 03|CE Certified|VDE 0660|IEC 60947-5-1|NF C 63-140|BS 4794|EN 60947-5|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2278005Part Number #CAD32V7UNSPSC39122331UPC00785901583707
