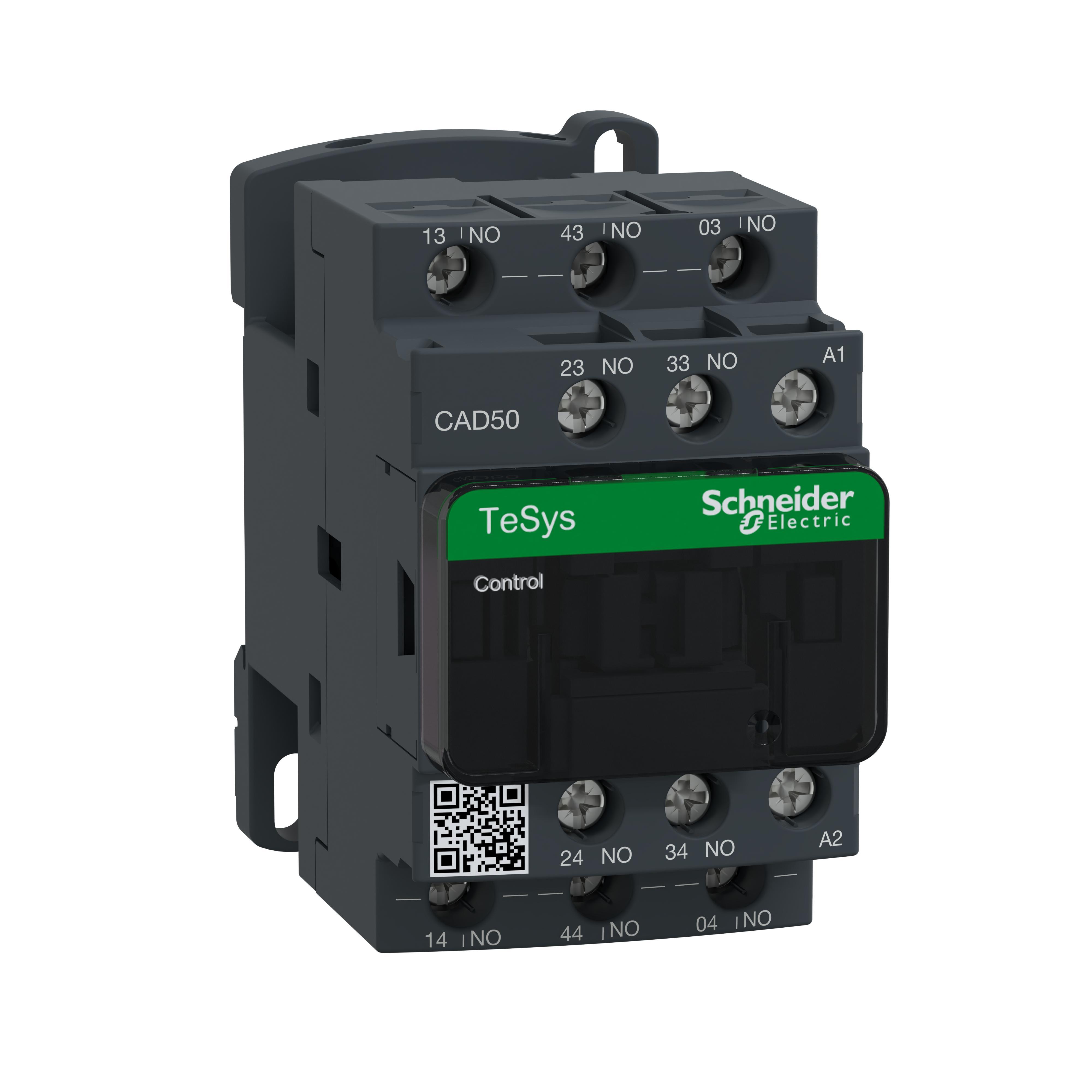

Schneider Electric CAD50B7 Tesys D Iec Control Relay
Part Number # CAD50B7
SKU # 2143621
CAD50B7
Schneider Electric CAD50B7 Tesys D Iec Control Relay
Part Number # CAD50B7
SKU # 2143621
$83.28 / Each
Schneider Electric CAD50B7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD50B7 |
| SKU #: | 2143621 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC |
| Contact Form: | 5NO 5 Form A |
| Contact Rating: | 10 A at 690 V AC |
| Dimensions: | 45 mm W x 84 mm D x 77 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 5 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw Clamp |
| Type: | Coil Standard |
| Country of origin: | ID |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901204886 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.28 / Each
Quantity:
- Schneider Electric Square D TeSys D IEC Control Relay, Coil Standard, 10 A, 8/70 VA Power, 50/60 Hz Frequency, 24 VAC Coil, 5NO 5 Form A Contact Form, 10 A at 690 V AC Contact, 5 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 45 mm W x 84 mm D x 77 mm H Dimensions
CAD50B7 Application
For multi-pole switching applicationsat voltages up to 600 and control circuit applicationsCAD50B7 Item Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD50B7 Standards
BS 4794|CCN NKCR|CE Certified|CLASS:3211 03|CSA Certified|CSA File No. LR43364|ECCN: EAR99|EN 60947-5|Green Premium|IEC 60947-5-1|NF C 63-140|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL File No. 164353|UL Listed|VDE 0106|VDE 0660|WEEE CompliantSKU #2143621Part Number #CAD50B7UNSPSC39122331UPC00785901204886
Image provided may only be a representation of final product and may include optional equipment
