Part Number # CAD50BD
SKU # 932491
Image Disclaimers Message
Brand: Schneider Electric
CAD50BD

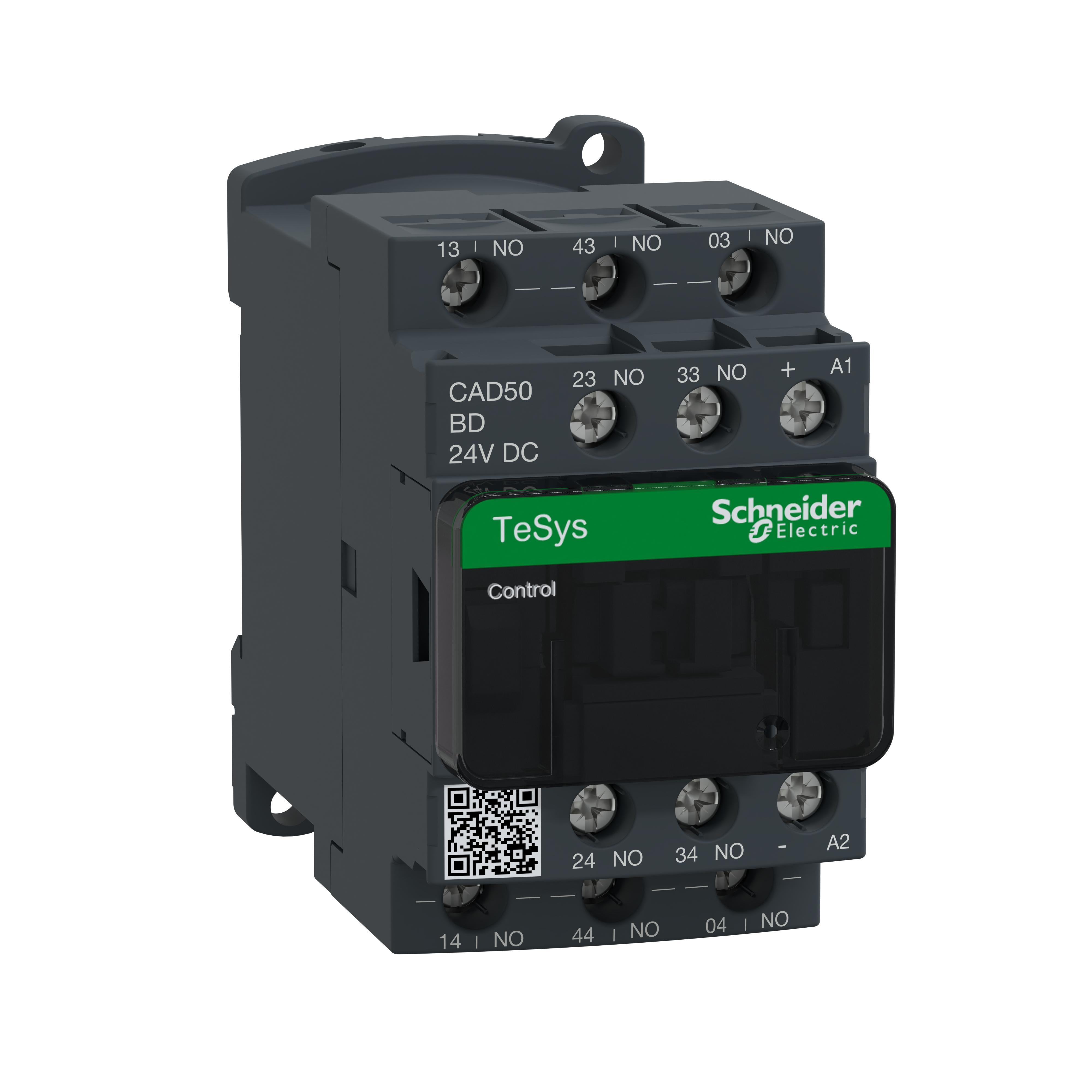

Schneider Electric CAD50BD Tesys Control Relay
Part Number # CAD50BD
SKU # 932491
$145.89 / Each
Typical price:$147.74 / Each
Schneider Electric CAD50BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD50BD |
| SKU #: | 932491 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Form: | 5NO, 5NO 5 Form A |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Dimensions: | 45 mm W x 77 mm D x 93 mm H, 45 mm W x 95 mm D x 99 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 400, 400 Hz |
| Number of Poles: | 5 |
| Series: | D Series |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw Clamp |
| Type: | Coil Standard |
| Country of origin: | FR, ID |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901204893 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.89 / Each
Typical price:$147.74 / Each
Quantity:
- Schneider Electric Square D TeSys Control Relay, Coil Standard, Series: D Series, 10 A, 400 Hz Frequency, 24 V DC Coil, 5NO 5 Form A Contact Form, 10 A at 600 VAC Contact, 5 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 45 mm W x 77 mm D x 93 mm H Dimensions
CAD50BD Application
For use with control circuit applicationsCAD50BD Standards
CE Certified|CSA Certified|CSA File No. LR43364 Class 3211 03|ECCN EAR99|IEC Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164353 CCN NKCR|UL Listed|VDE 0106SKU #932491Part Number #CAD50BDUNSPSC39122331UPC00785901204893
