Part Number # CAD50FD
SKU # 2218097
Image Disclaimers Message
Brand: Schneider Electric
CAD50FD

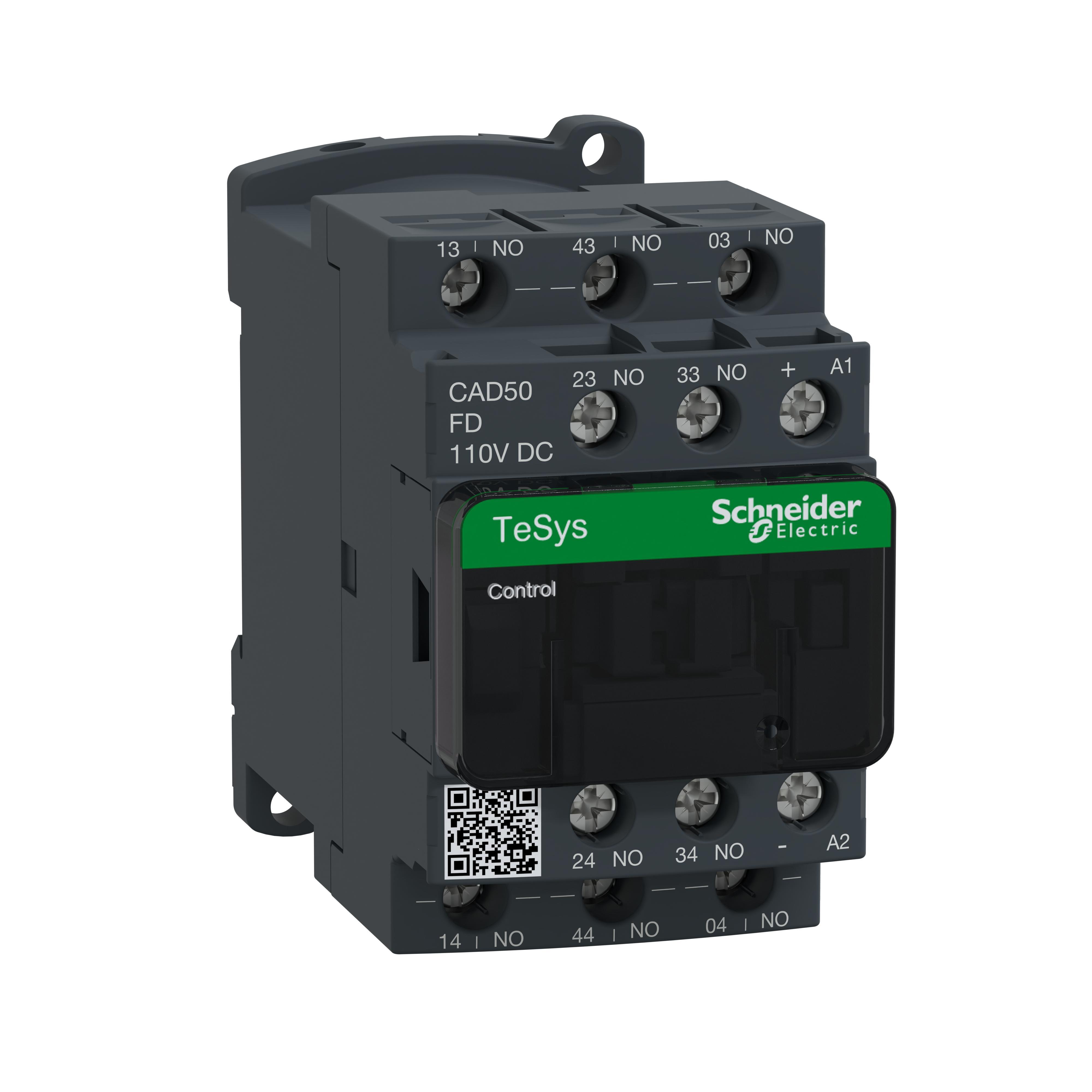

Schneider Electric CAD50FD Iec Control Relay
Part Number # CAD50FD
SKU # 2218097
$145.89 / Each
Typical price:$147.74 / Each
Schneider Electric CAD50FD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD50FD |
| SKU #: | 2218097 |
| Amperage Rating: | 10, 10 A |
| Coil Voltage: | 110, 110 V DC, 110 VDC |
| Contact Form: | 5NO, 5NO 5 Form A |
| Dimensions: | 3.03 in H x 1.77 in W x 3.66 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 5 |
| Series: | TeSys D, TeSys™ D |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Country of origin: | ID |
| Mounting type: | Front/Plate Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901611943 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.89 / Each
Typical price:$147.74 / Each
Quantity:
- Schneider Electric Square D IEC Control Relay, Series: TeSys D, 10 A, 5.4 W Power, 50/60 Hz Frequency, 110 V DC Coil, 5NO 5 Form A Contact Form, 5 Pole, Front/Plate Rail Mounting, Screw Clamp Terminal, IP2X Enclosure, -40 to 70 deg C, 3.03 in H x 1.77 in W x 3.66 in D Dimensions
CAD50FD Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCAD50FD Item Features
- 5.4 W inrush and hold-in power rating
CAD50FD Standards
RoHS Compliant|REACH Compliant|UL File No. E164353|CCN NKCR|CSA File No. LR43364|Class 3211-03|CE Certified|IEC Certified|VDE 0106/0660|IEC 60947-5-1|NF C 63-140|BS 4794|EN 60947-5|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2218097Part Number #CAD50FDUNSPSC39122331UPC00785901611943
