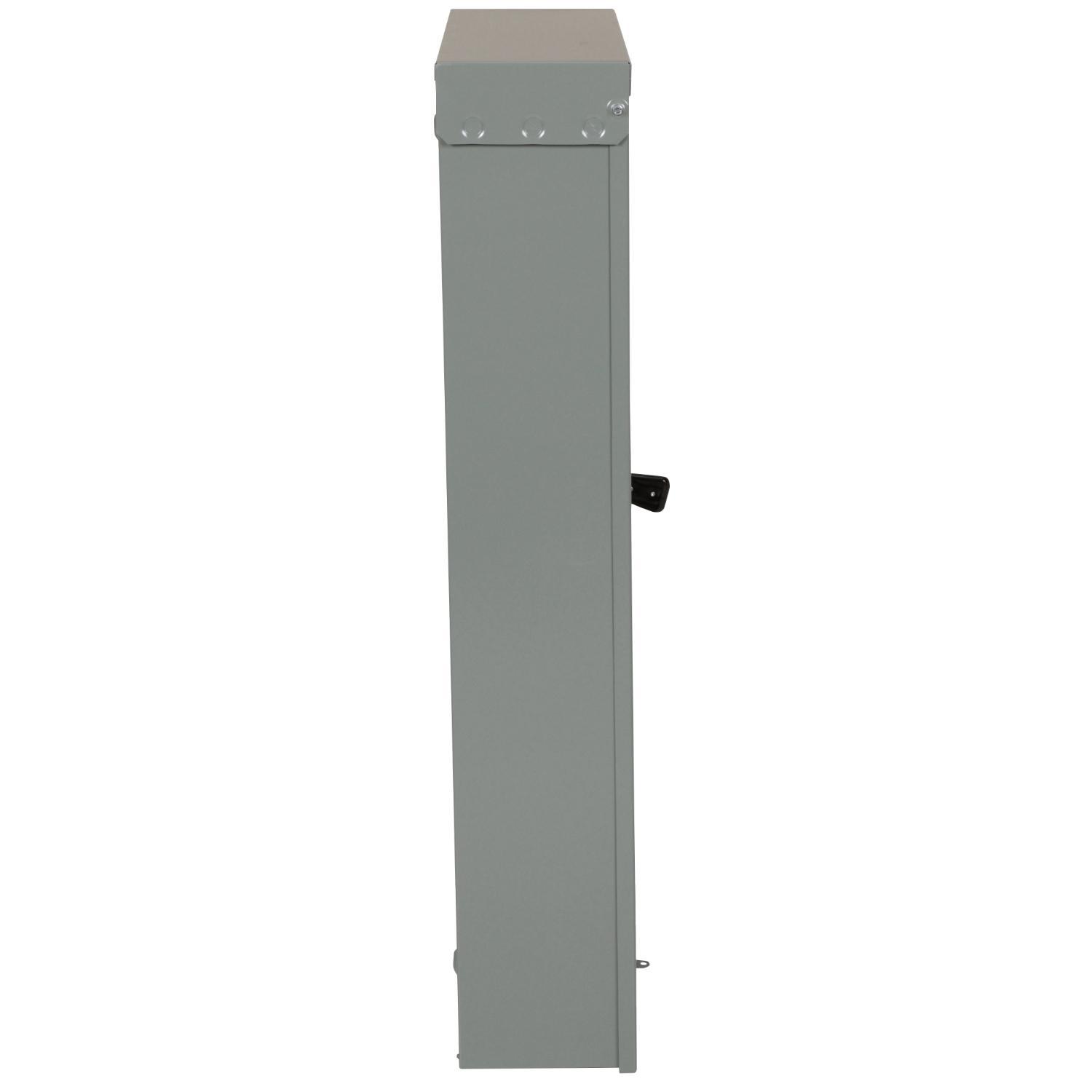

Schneider Electric D226NR Safety Switch
Schneider Electric D226NR Safety Switch
Part #:D226NR
SKU #: 2393239
Key Features
Part #:D226NR
SKU #: 2393239
Brand: Schneider Electric
Actuator Type: Handle
Amperage Rating: 600, 600 A
Contact Form: DPST
Dimensions: 24.75 in W x 8.88 in D x 49.13 in H
Enclosure Type: NEMA 3R
- This product is a Single Throw Safety Switch with a NEMA 3R rating This switch has a 100 kA current rating and complies to UL listed Standards
- Visible blades for positive indication that switch is off
- Quick-make, quick break operating mechanism
- Multiple padlock provisions in the OFF position
- Tangential knockouts alleviate the need for offset bends
- Spring reinforced plated copper fuse clips
Schneider Electric D226NR Safety Switch
Square D Safety Switch, Fusible General Duty Iceproof Rainproof Sleetproof, Series: E1 Series, 240 VAC, 600 A, 2 Pole, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 24.75 in W x 8.88 in D x 49.13 in H Dimensions, Steel, Gray, Baked Enamel/Galvanized/Phosphatized
Additional Description: SQD -D226NR SWITCH FUSIBLE GD 240V 600A 2P NEMA3R
Catalog Description: Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed
