DF143NC

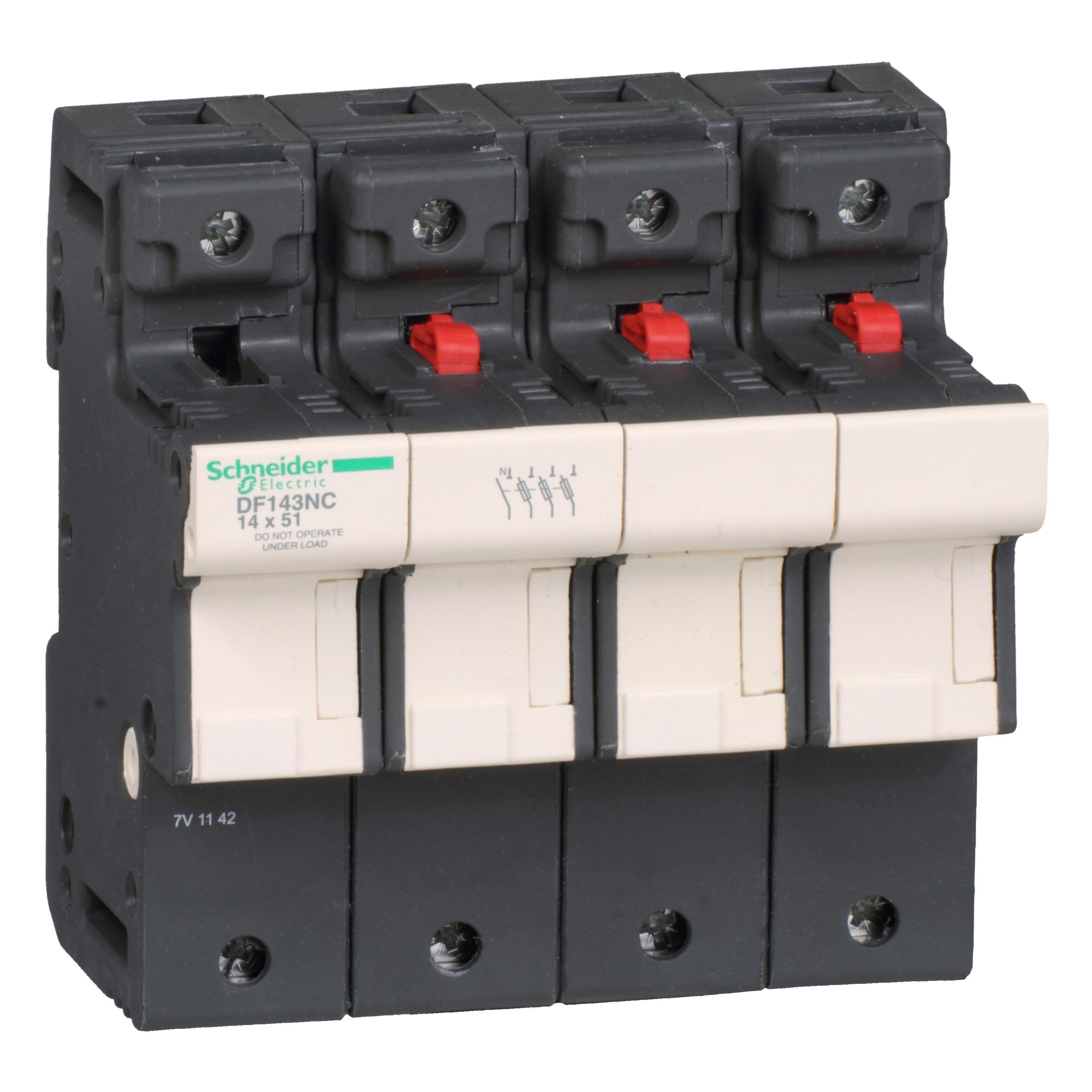

Schneider Electric DF143NC Fuse Holder
Part Number # DF143NC
SKU # 2371046
$132.65 / Each
Typical price:$145.59 / Each
Schneider Electric DF143NC Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | DF143NC |
| SKU #: | 2371046 |
| Accessory Type: | Fuse carrier |
| Amperage Rating: | 50 A |
| Dimensions: | 4.36 in H x 4.13 in W x 3.01 in D |
| Interrupt Rating: | 120 kA |
| Series: | DF14 |
| Suitable For Use With: | DF3EA fuse cartridge striker/DF3EN fuse cartridge striker/DF14AM auxiliary contact block |
| Country of origin: | TN |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121624 |
| UPC: | 03389119407427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$132.65 / Each
Typical price:$145.59 / Each
Quantity:
- Schneider Electric DF143NC, Fuse carrier Accessory, DF14, 50 A, 690 V AC/DC, 120 kA Interrupt, For Use With: DF3EA fuse cartridge striker/DF3EN fuse cartridge striker/DF14AM auxiliary contact block , 4.36 in H x 4.13 in W x 3.01 in D Dimensions
DF143NC Item Features
- Fuses from 25A to 125A
- Compact size helps to reduce the overall size of the installation
- Ergonomic handle for easier opening
- LED blown fuse indicator
- Dual position locking system for easy DIN-rail mounting
- Multi-pole configurations 1P, N, 1P+N, 2P, 3P, 3P+N
- Protection against direct finger contact
- TeSys LS1
- 45 mm wide mounting dimensions, matching TeSys starters and contactors
- Accepts Class CC fuses (such as Bussmann FNQ-R or KTK-R)
- US Fuse Types CC, KTK-R
- European Fuse Types aM, gG
- Rated 30A, 600 Vac, 3 phase
- Uses screw clamp terminations (spring terminal version under development)
- Connects to LC1D09 through LC1D38 contactors (with use of GV2AF3 connector or GV2AF4)
- Meets application needs for fusible starter
- 14 x 51 mm fuse size
- 690 V AC ui rated insulation voltage
- 8 kV uimp rated impulse withstand voltage
DF143NC Standards
IEC|UL Recognized|CSA|EAC|EN/IEC 60947-3|EN/IEC 60269-2|UL 4248-1|CSA C22.2 No 4248-1|PROP65: Cancer - www.P65Warnings.ca.govSKU #2371046Part Number #DF143NCUNSPSC39121624UPC03389119407427
