Part Number # DT323RB
SKU # 2443226

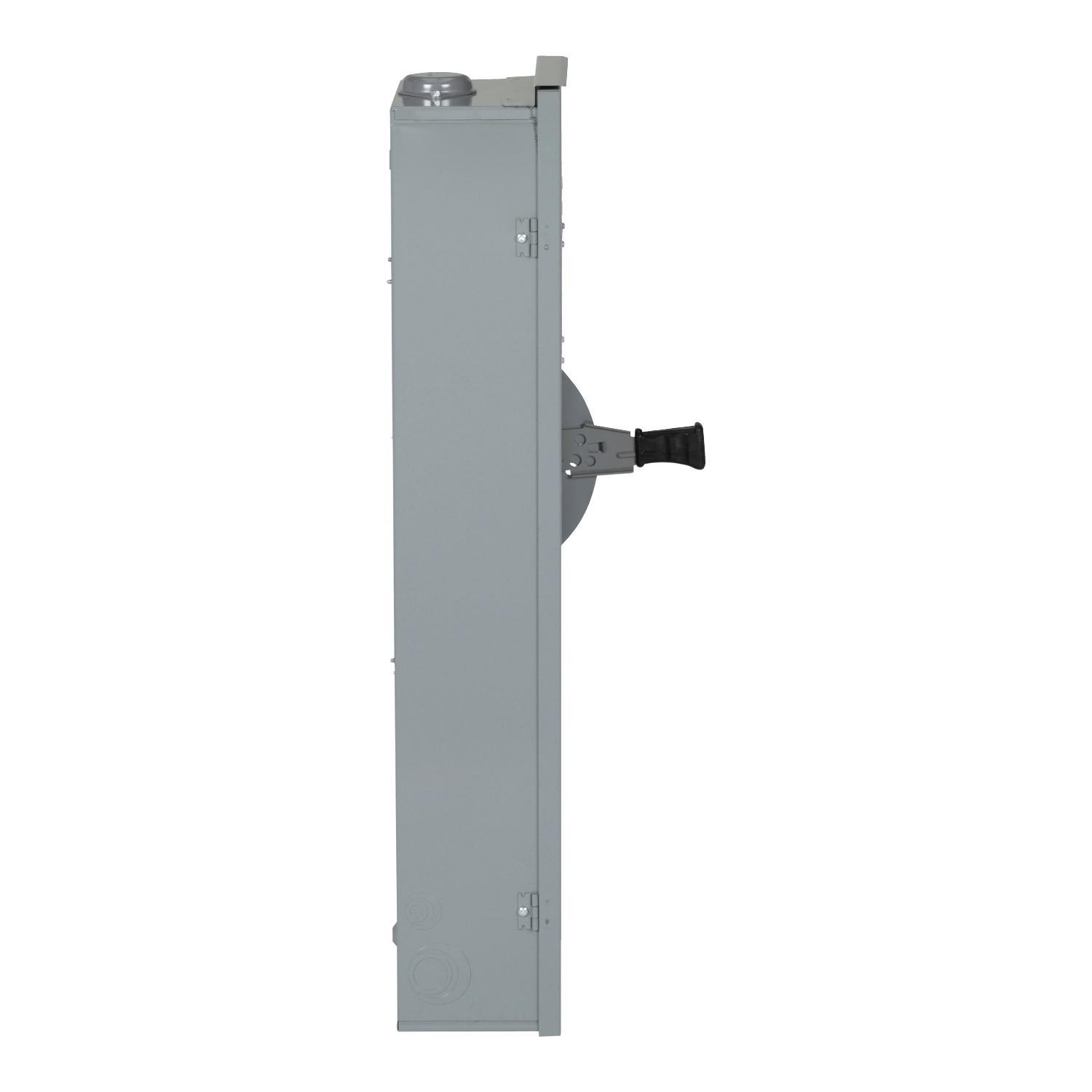

Image provided may only be a representation of
final product and may include optional equipment
DT323RB
Schneider Electric DT323RB
Part Number # DT323RB
SKU # 2443226
Schneider Electric DT323RB Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | DT323RB |
| SKU #: | 2443226 |
| Amperage Rating: | 100 A |
| Contact Form: | 3 Form C 3PDT, TPDT |
| Dimensions: | 38 in H x 8.12 in W x 6.6 in D |
| Enclosure Type: | NEMA 3R |
| Finish: | Galvannealed |
| Horsepower: | 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 1/3 |
| Series: | F5 |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Fusible General Purpose |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901308560 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric DT323RB
Brand: Schneider Electric
Part Number: DT323RB
Square D™ Double Throw Safety Switch, Fusible General Purpose, Series: F5, 240 VAC/250 VDC, 100 A, 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC, 1/3 Phase, 3 Pole, 3 Wires, 200 kA Short Circuit, TPDT Contact Form, NEMA 3R Enclosure, Surface Mounting, 38 in H x 8.12 in W x 6.6 in D Dimensions, Steel, Galvannealed
Additional Description: SQD -DT323RB SWITCH FUSIBLE DT 240VAC 100A 3P NEMA 3R
Catalog Description: Safety switch, double throw, fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 3R, bolt on hub prov
DT323RB Application
Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial and Outdoor ApplicationsDT323RB Item Features
- Reliable performance
- Long term durability
- Enclosed operating mechanism
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
DT323RB Standards
RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2443226Part Number #DT323RBUNSPSC39122205UPC00785901308560
