Part Number # EX45T3HFNLP
SKU # 2463815
EX45T3HFNLP
Schneider Electric EX45T3HFNLP
Part Number # EX45T3HFNLP
SKU # 2463815
Schneider Electric EX45T3HFNLP Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EX45T3HFNLP |
| SKU #: | 2463815 |
| Dimensions: | 30.08 in W x 22.76 in D x 42.01 in H |
| Efficiency: | 98.71 % |
| Enclosure Type: | NEMA 1/2/3R/ST-20 |
| Insulation: | Class 220 |
| Maximum Amperage Rating: | 4.1 kA |
| Number of Taps: | (2) 2.5% FCAN/(4) 2.5% FCBN |
| Primary Voltage: | 480 V Delta |
| Secondary Voltage: | 208Y/120 V |
| Connection type: | 2-Hole 0.44 in NEMA Pad Primary, 2-Hole 0.44 in NEMA Pad Secondary and 4-Hole 0.44 in NEMA Pad Secondary |
| UNSPSC: | 39121032 |
| UPC: | 00785901571704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EX45T3HFNLP
Brand: Schneider Electric
Part Number: EX45T3HFNLP
Square D Energy Efficient Transformer, Dry Type Low Voltage, 480 V Delta Primary, 208Y/120 V Secondary, 45 kVA Power, 60 Hz Frequency, 3 ph, 4.1 kA Maximum, (2) 2.5% FCAN/(4) 2.5% FCBN Taps, 2-Hole 0.44 in NEMA Pad Primary, 2-Hole 0.44 in NEMA Pad Secondary and 4-Hole 0.44 in NEMA Pad Secondary Connection, Floor Mounting, Class 220 Insulation, NEMA 1/2/3R/ST-20 Enclosure, 115 deg C Rise, 98.71 % Efficiency, Copper Winding, 30.08 in W x 22.76 in D x 42.01 in H Dimensions
Additional Description: SQD -EX45T3HFNLP (N) TRANSFORMER DRY TYPE 45KVA 480D208Y K13 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 20K, 115C rise, K13
EX45T3HFNLP Application
Building Management and Security, Data Centers, Networks and Secure Power and Electrical Distribution ApplicationsEX45T3HFNLP Item Features
- Comes in a space-saving design
- Terminals sized to handle Square D equipment
- Bending radius for side and bottom access to the transformer
- https://youtu.be/Ks1cBzorOEQ
EX45T3HFNLP Standards
CSA C22.2 47|UL File No. 1561|RoHS Compliant|REACH Compliant|PROP65: This product can expose you to chemicals including, Phenyl Glycidyl Ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2463815Part Number #EX45T3HFNLPUNSPSC39121032UPC00785901571704

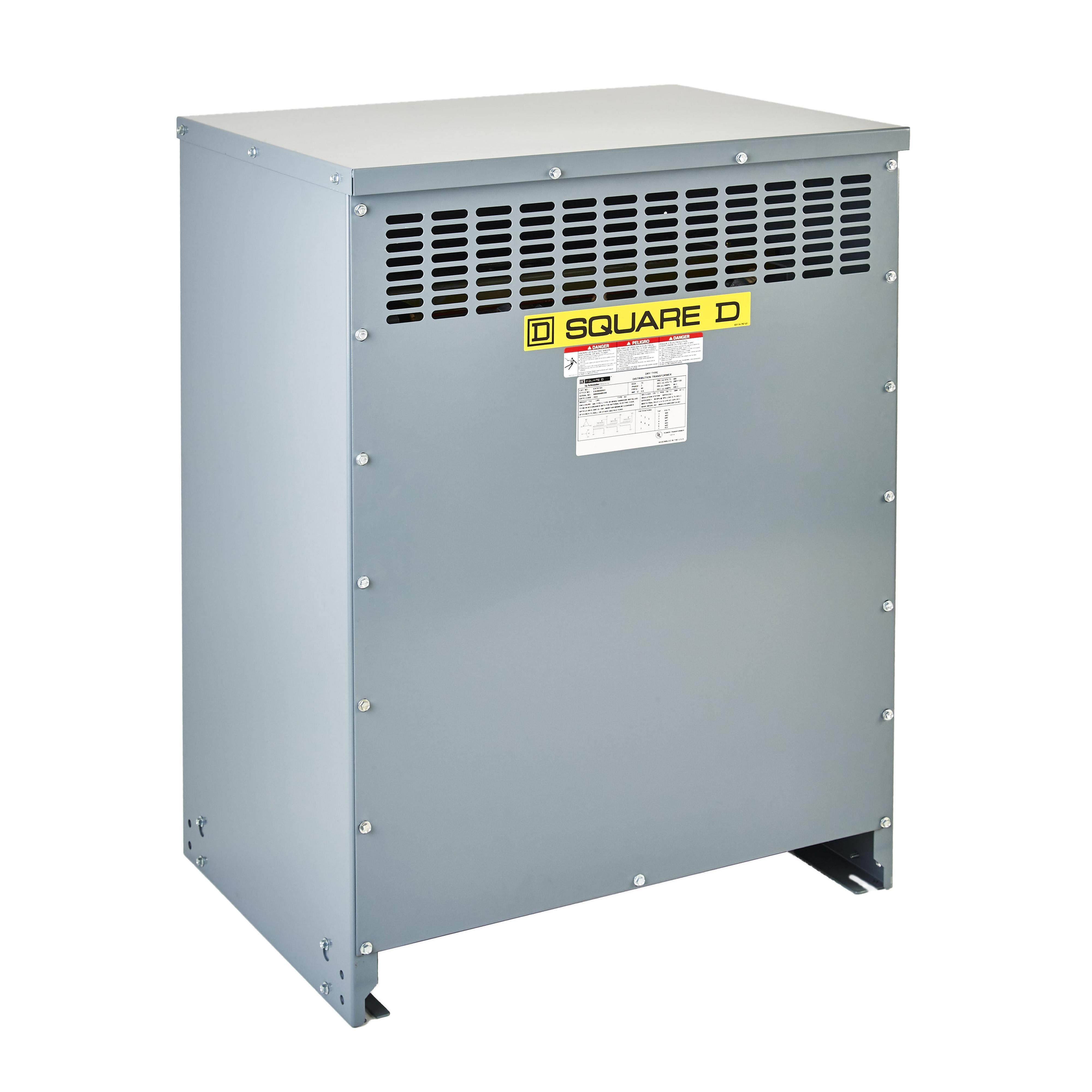

Image provided may only be a representation of final product and may include optional equipment
