EZM31000CB
Schneider Electric EZM31000CB
Part Number # EZM31000CB
SKU # 2452183
Schneider Electric EZM31000CB Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EZM31000CB |
| SKU #: | 2452183 |
| Dimensions: | 18.66 in W x 11.5 in D x 53.97 in H |
| Operating Temperature: | NEMA 3R |
| Wire Size: | (1) Cable #6 AWG to 300 kcmil Ground/(4) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral |
| UNSPSC: | 39121102 |
| UPC: | 00785901305002 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EZM31000CB
Brand: Schneider Electric
Part Number: EZM31000CB
Square D EZ Meter-Pak Main Circuit Breaker, 208Y/120 240/120 Delta V AC, 1000 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(4) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H
Additional Description: SQD -EZM31000CB EZM MAIN 3PH 1000A CB
Catalog Description: Main circuit breaker unit, EZ Meter-Pak, 1000A, 240VAC max, 3ph/4W, 1200A bus, 65kA, OH/UG, Type 3R
EZM31000CB Includes
3 Pole 1000 A 240 VAC 65 kA Interrupt Rating Circuit Breaker and Closing PlateEZM31000CB Item Features
- This branch unit supplies three phases in, three phases out with a four wire configuration
- It is rated for 208Y/120VAC or 240/120VAC delta and 225A
- The meter socket compartment has two ringed, seven jaw meter sockets
- The compartment has a test block bypass, without jaw release
- The compartment has four 1200A rated horizontal busbars
- These bars can be secured using the Visi-Tite nut, which eliminates the need for torque readings
EZM31000CB Standards
ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govEZM31000CB Warranty
18 MonthsSKU #2452183Part Number #EZM31000CBUNSPSC39121102UPC00785901305002

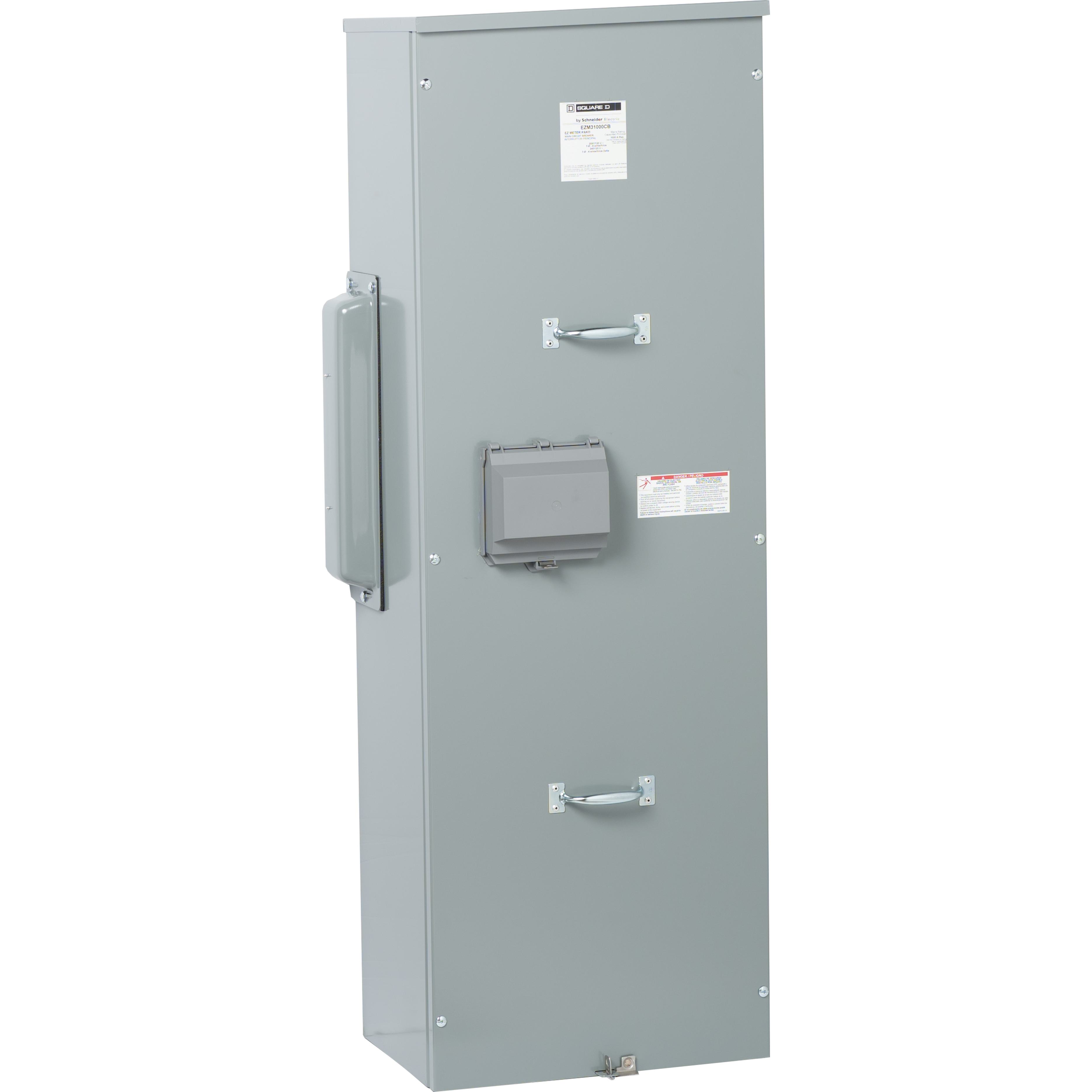

Image provided may only be a representation of final product and may include optional equipment
