EZM32000CB
Schneider Electric EZM32000CB
Part Number # EZM32000CB
SKU # 2452149
Schneider Electric EZM32000CB Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EZM32000CB |
| SKU #: | 2452149 |
| Wire Size: | 6 AWG to 300 kcmil, 1/0 AWG to 700 kcmil Al/Cu |
| UNSPSC: | 39121102 |
| UPC: | 00785901534792 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EZM32000CB
Brand: Schneider Electric
Part Number: EZM32000CB

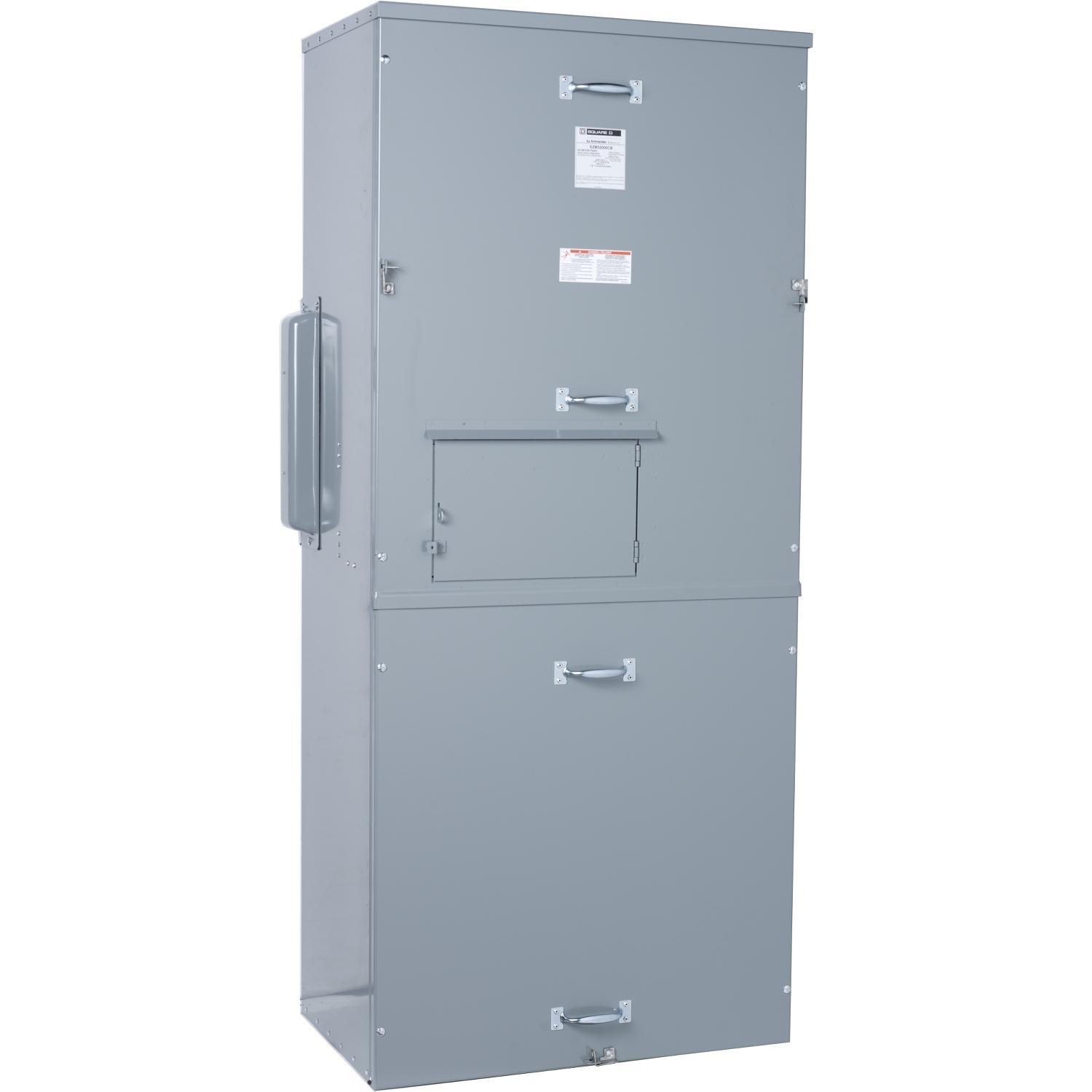

Square D Meter-Pak Meter Center Main Unit, 4-Wire, Series: EZM, 208Y/120 VAC, 240/120 Delta VAC, 2000 A, 3 ph, Overhead/Underground Feed, 6 AWG to 300 kcmil, 1/0 AWG to 700 kcmil Al/Cu Wire, Closing Plate Hub, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 68.7 in H x 30.19 in W x 18.33 in D Dimensions
Additional Description: SQD -EZM32000CB METERING EZM MAIN BREAKER 3 PHASE OH/UG
Catalog Description: Main circuit breaker unit, EZ Meter-Pak, 2000A, 240VAC max, 3ph/4W, 1200A bus, 100kA, OH/UG, Type 3R
EZM32000CB Includes
Closing Plate HubEZM32000CB Item Features
- Resin-filled general purpose transformers are epoxy encapsulated
- The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection
- This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V
- Compact footprint for installation flexibility
EZM32000CB Standards
UL File No. E10582/E131840|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govEZM32000CB Warranty
18 MonthsSKU #2452149Part Number #EZM32000CBUNSPSC39121102UPC00785901534792
Image provided may only be a representation of final product and may include optional equipment
