Part Number # EZML111225
SKU # 2452145
EZML111225
Schneider Electric EZML111225
Part Number # EZML111225
SKU # 2452145
Schneider Electric EZML111225 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EZML111225 |
| SKU #: | 2452145 |
| Dimensions: | 39.06 in H x 19.44 in W x 9.44 in D |
| Series: | EZM |
| Wire Size: | 8 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu |
| UNSPSC: | 39121102 |
| UPC: | 00785901408888 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EZML111225
Brand: Schneider Electric
Part Number: EZML111225

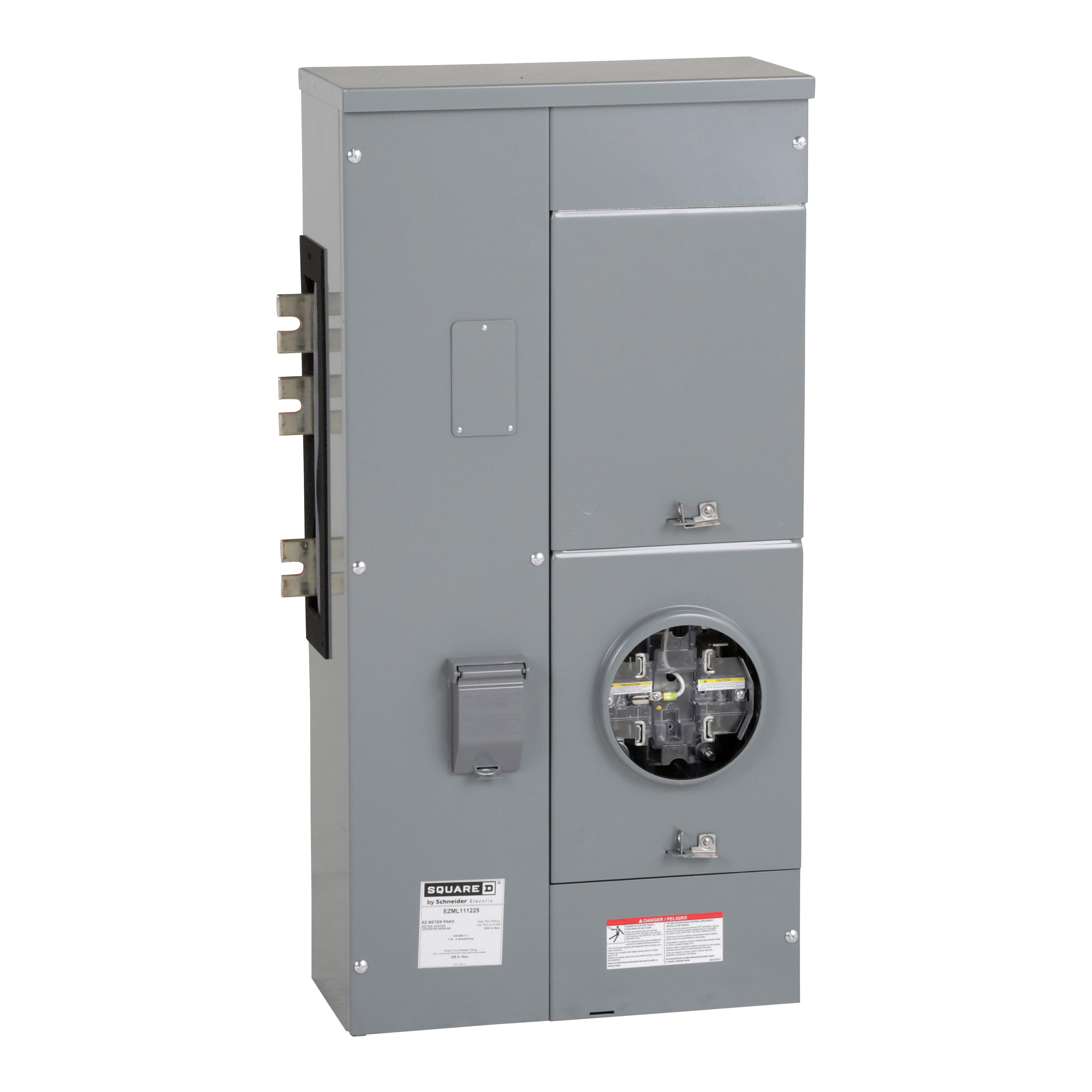

Square D™ Meter-Pak™ Meter Center Branch Unit, 3-Wire, Series: EZM, 120/240 VAC, 225 A, 1 ph, Overhead/Underground Feed, 5 Jaws, 8 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu Wire, Ringless Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 39.06 in H x 19.44 in W x 9.44 in D Dimensions
Additional Description: SQD -EZML111225 EZM BR 1200A 1 PHASE LEVR BYP 225A 1 POS
Catalog Description: Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar
EZML111225 Item Features
- Meter sockets and tenant circuit breaker slots for downstream metering and protection
- 125A, 225A, and 400A units available, ringless or ring type with varied bypass options
- 800A horizontal busbar standard (1200A busbar optional)
- Corner, elbow, transition, and bus extensions create system design flexibility
- NEMA Type 3R for outdoor and indoor installation
EZML111225 Standards
UL ListedSKU #2452145Part Number #EZML111225UNSPSC39121102UPC00785901408888
Image provided may only be a representation of final product and may include optional equipment
