Part Number # EZML334225
SKU # 2452142
EZML334225
Schneider Electric EZML334225
Part Number # EZML334225
SKU # 2452142
Schneider Electric EZML334225 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EZML334225 |
| SKU #: | 2452142 |
| Amperage Rating: | 225 A |
| Dimensions: | 67.06 in H x 19.44 in W x 9.44 in D |
| Enclosure Type: | NEMA 3R |
| Phase: | 3 |
| Series: | EZM |
| Type: | 4-Position 4-Wire |
| Country of origin: | MX |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121102 |
| UPC: | 00785901299998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EZML334225
Brand: Schneider Electric
Part Number: EZML334225

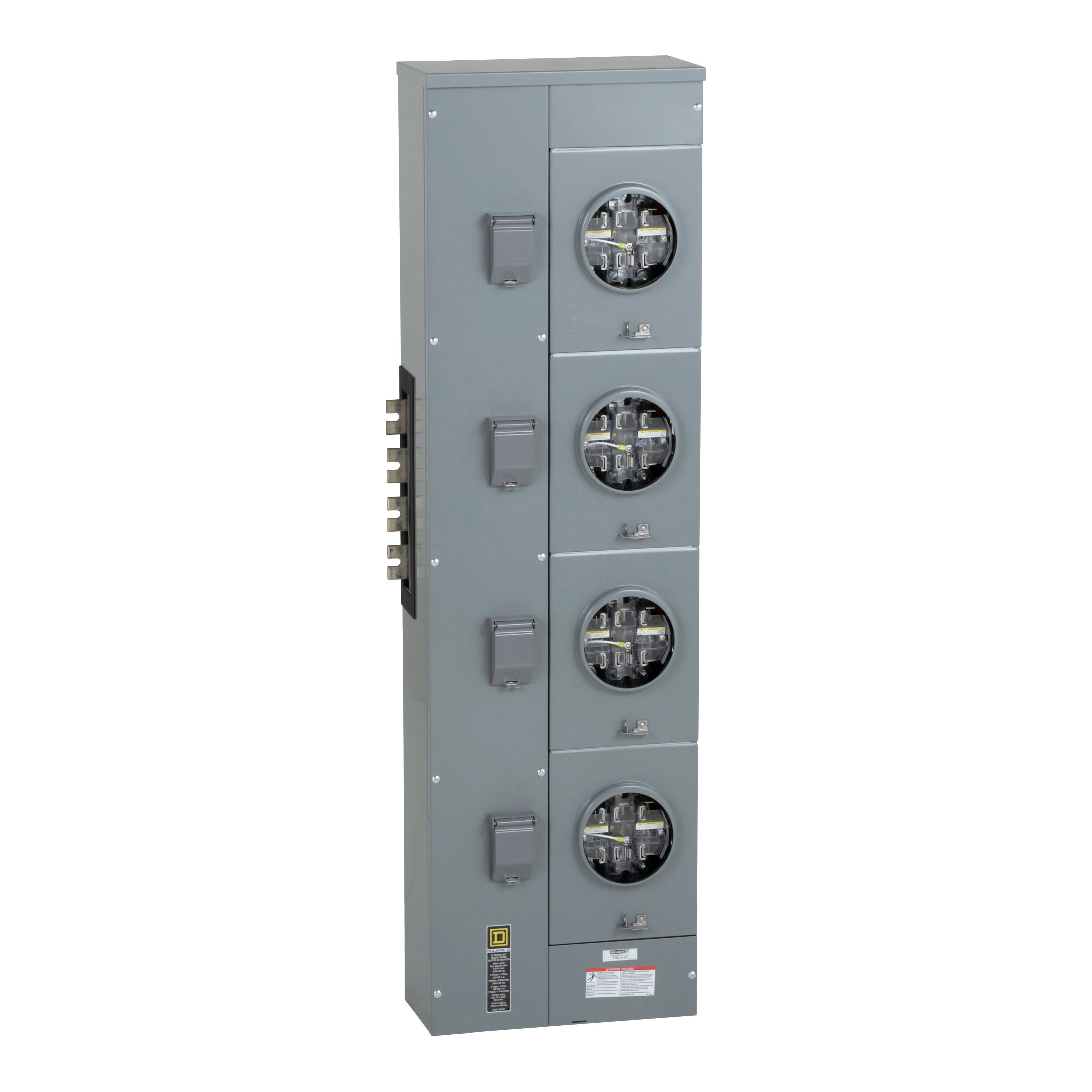

Square D™ Meter-Pak™ Meter Center Branch Unit, 4-Position 4-Wire, Series: EZM, 208Y/120 VAC, 120/240 Delta VAC, 225 A, 3 ph Phase, Overhead/Underground Feed, 7 Jaws, Ringless Cover, Surface Mount, NEMA 3R, 67.06 in H x 19.44 in W x 9.44 in D
Additional Description: SQD -EZML334225 EZM BR 1200A 3PH-3PH LVER BYP 225A 4 POS
Catalog Description: Branch unit, EZ Meter-Pak, 225A, 4 x 7 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
EZML334225 Application
For service equipmentEZML334225 Item Features
- Meter sockets and tenant circuit breaker slots for downstream metering and protection
- 125A, 225A, and 400A units available, ringless or ring type with varied bypass options
- 800A horizontal busbar standard (1200A busbar optional)
- Corner, elbow, transition, and bus extensions create system design flexibility
- NEMA Type 3R for outdoor and indoor installation
EZML334225 Standards
UL ListedSKU #2452142Part Number #EZML334225UNSPSC39121102UPC00785901299998
Image provided may only be a representation of final product and may include optional equipment
