GBX1600081403F

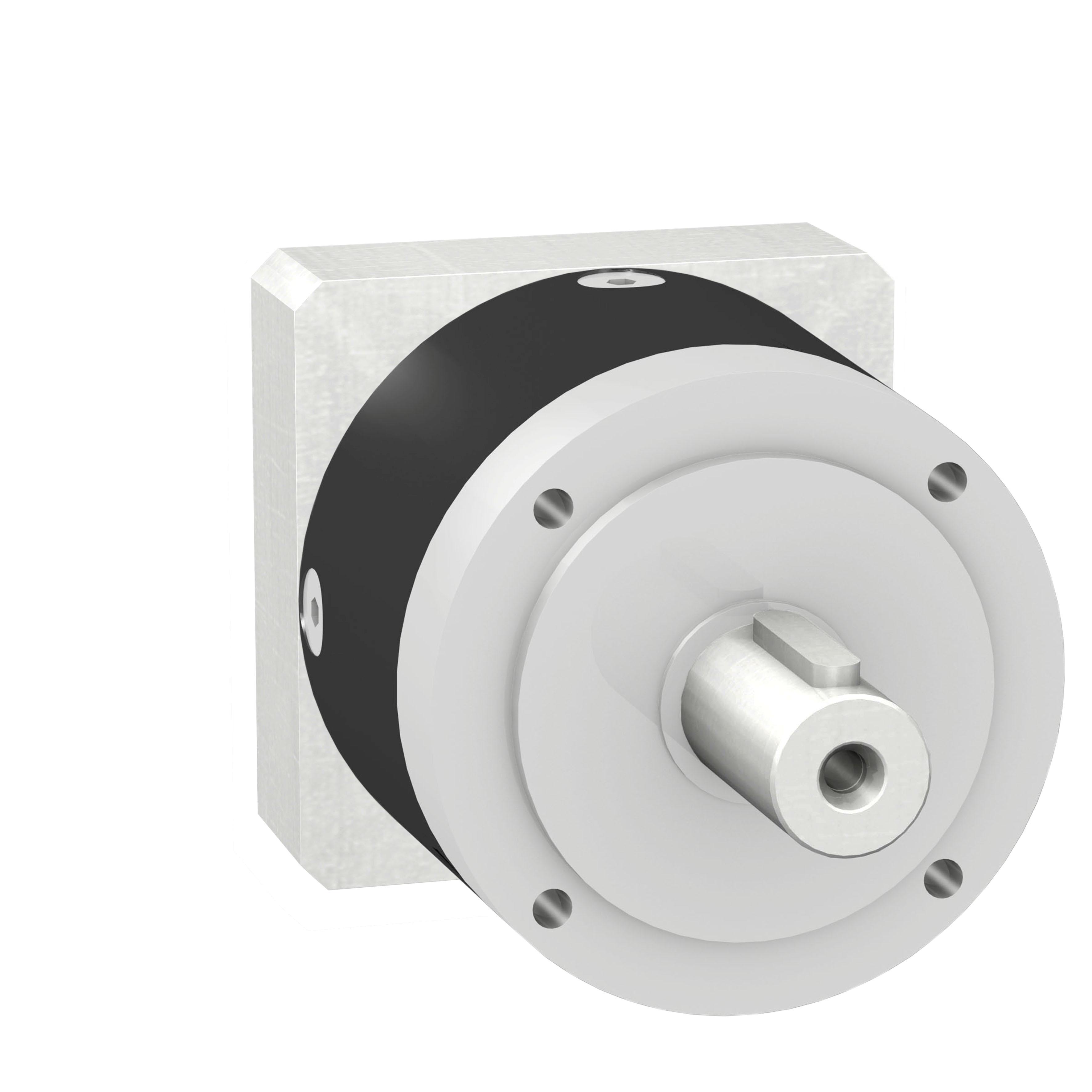

Schneider Electric GBX1600081403F Servo Drives
Part Number # GBX1600081403F
SKU # 2400009
$2810.51 / Each
Schneider Electric GBX1600081403F Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | GBX1600081403F |
| SKU #: | 2400009 |
| Efficiency: | 96 % |
| Gear Ratio: | 8:1 |
| Output Maximum Speed: | 100 rpm |
| Series: | GBX |
| Torque Rating: | 450 N-m |
| Type: | Planetary gearbox |
| Country of origin: | DE |
| Material: | Black anodized aluminium |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121021 |
| UPC: | 03389118145214 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2810.51 / Each
Quantity:
- Schneider Electric GBX1600081403F, Planetary gearbox, GBX, 8:1 Gear Ratio, 100 rpm Output Maximum, 450 N-m Torque, 6 arc.min Backlash, 96 % Efficiency, Black anodized aluminium
GBX1600081403F Item Features
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- Safe Torque Off on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- Straight teeth gear box type
- 6.30 in (160 mm) gearbox external diameter
- 8:1 reduction ratio
- 6 arc.min maximum torsional backlash
- 38 N.m/arcmin torsional rigidity
- Black housing colour
- Black anodized aluminium housing material
