H325R

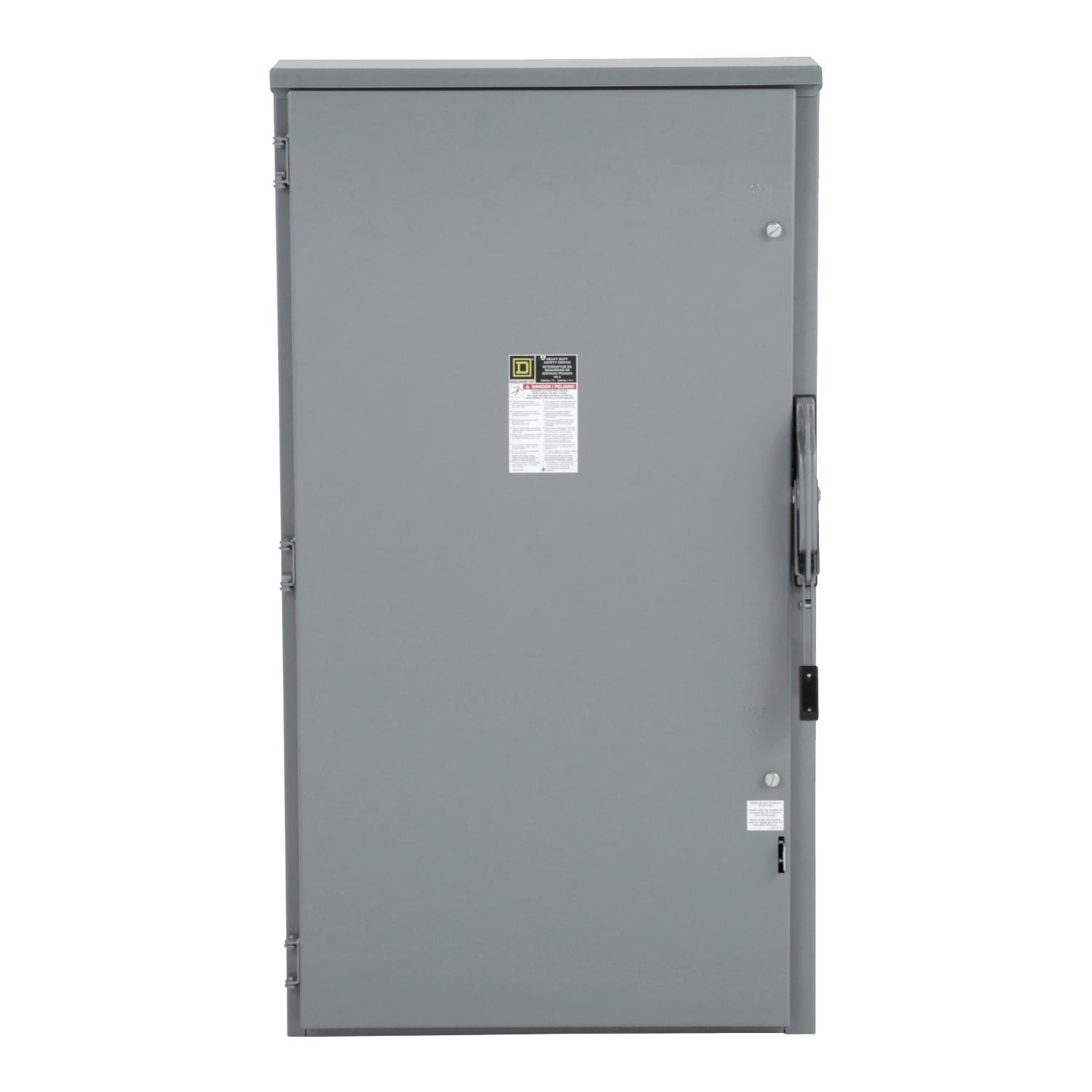

Schneider Electric H325R
Part Number # H325R
SKU # 2452365
$2700.42 / Each
Typical price:$3975.00 / Each
Schneider Electric H325R Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | H325R |
| SKU #: | 2452365 |
| Actuator Type: | Handle/Single Throw |
| Amperage Rating: | 400 A |
| Contact Form: | 3NO 3 Form A |
| Dimensions: | 27.88 in W x 10.13 in D x 50.31 in H |
| Enclosure Type: | NEMA 3R |
| Finish: | Galvannealed/Painted |
| Horsepower: | 125 hp at 240 VAC, 50 hp at 250 VDC |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | E5 |
| Short Circuit Current Rating (kA): | 10 to 200 kA |
| Temperature Rating (Degrees F): | -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Fusible Rainproof |
| Color: | Gray |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901451433 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2700.42 / Each
Typical price:$3975.00 / Each
Quantity:
- Square D Heavy Duty Safety Switch, Fusible Rainproof, Series: E5, 240 V AC/250 V DC, 400 A, 125 hp at 240 VAC, 50 hp at 250 VDC, 3 ph, 3 Pole, 3 Wires, 10 to 200 kA Short Circuit, 3NO 3 Form A Contact Form, Handle/Single Throw Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 27.88 in W x 10.13 in D x 50.31 in H Dimensions, Steel, Gray, Galvannealed/Painted
H325R Application
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor ApplicationsH325R Item Features
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- https://www.youtube.com/embed/qZyLdmwykug
H325R Standards
