Part Number # H326R
SKU # 2452366
H326R
Schneider Electric H326R
Part Number # H326R
SKU # 2452366
Schneider Electric H326R Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | H326R |
| SKU #: | 2452366 |
| Actuator Type: | Handle/Single Throw |
| Amperage Rating: | 600 A |
| Contact Form: | 3NO 3 Form A |
| Dimensions: | 50.31 in H x 27.88 in W x 10.13 in D |
| Enclosure Type: | NEMA 3R |
| Finish: | Galvannealed/Painted |
| Horsepower: | 200 hp at 240 VAC, 50 hp at 250 VDC |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | E5 |
| Short Circuit Current Rating (kA): | 10 to 200 kA |
| Temperature Rating (Degrees F): | -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Heavy Duty Fusible Rainproof |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901451471 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric H326R
Brand: Schneider Electric
Part Number: H326R
Square D™ Safety Switch, Heavy Duty Fusible Rainproof, Series: E5, 240 VAC, 250 VDC, 600 A, 200 hp at 240 VAC, 50 hp at 250 VDC, 3 ph, 3 Pole, 3 Wires, 10 to 200 kA Short Circuit, 3NO Contact Form, Handle/Single Throw Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, -22 to 104 deg F, 50.31 in H x 27.88 in W x 10.13 in D Dimensions, Steel, Gray, Galvannealed/Painted
Additional Description: SQD -H326R SWITCH FUSIBLE HD 240V 600A 3P NEMA3R
Catalog Description: Safety switch, heavy duty, fusible, 600A, 3 pole, 200hp, 240VAC/250VDC, NEMA 3R
H326R Application
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor ApplicationsH326R Item Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- All feature a quick-make, quick-break operating mechanism, a dual cover interlock
- Designed to have a mechanical endurance three times greater than NEMA standards
- https://www.youtube.com/embed/mbIMCO9g7oI
H326R Standards
RoHS Compliant|Federal Specification WS-865c|UL 98 File No. E154828|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2452366Part Number #H326RUNSPSC39122205UPC00785901451471

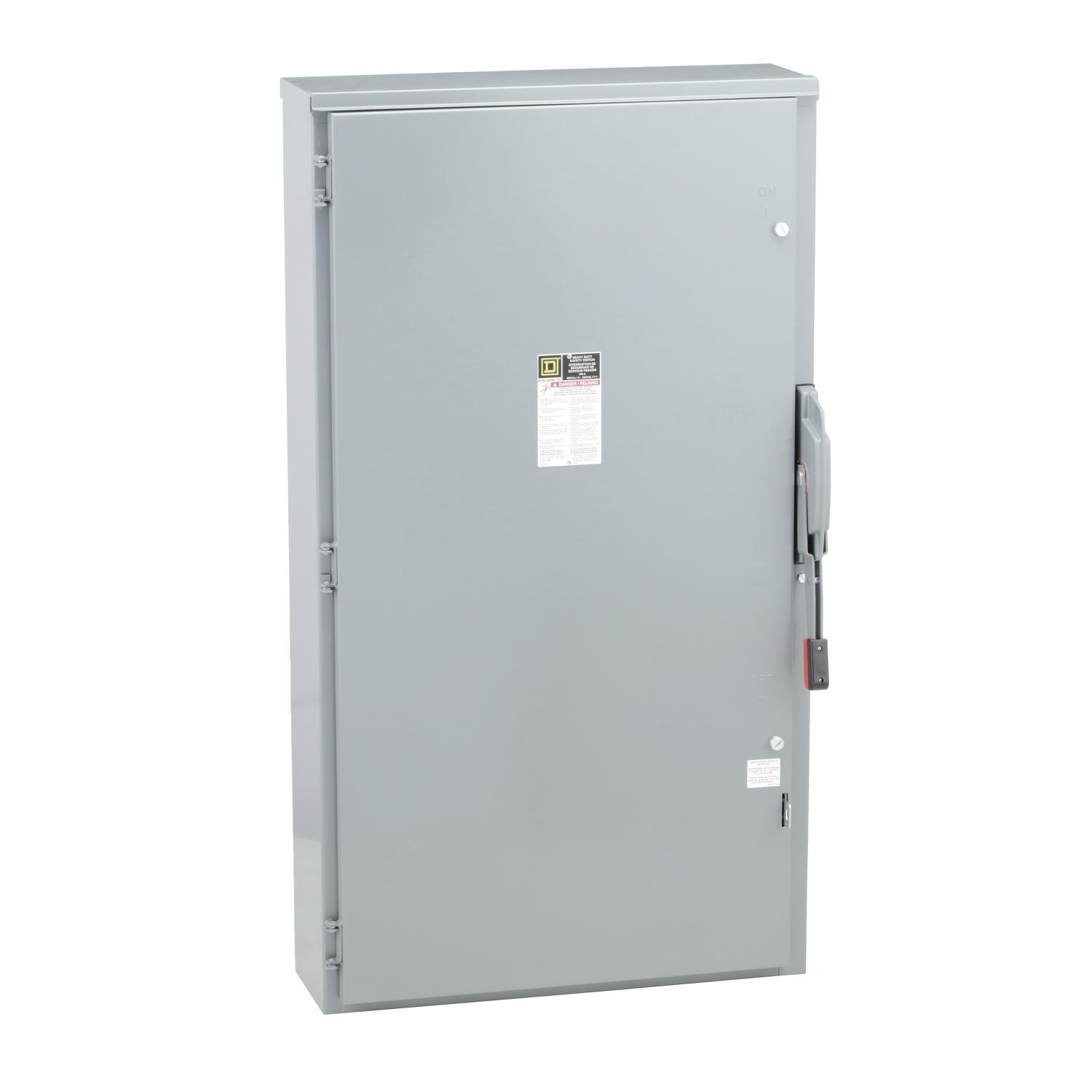

Image provided may only be a representation of final product and may include optional equipment
