Part Number # H363AWA
SKU # 2451443
Image Disclaimers Message
Brand: Schneider Electric
H363AWA

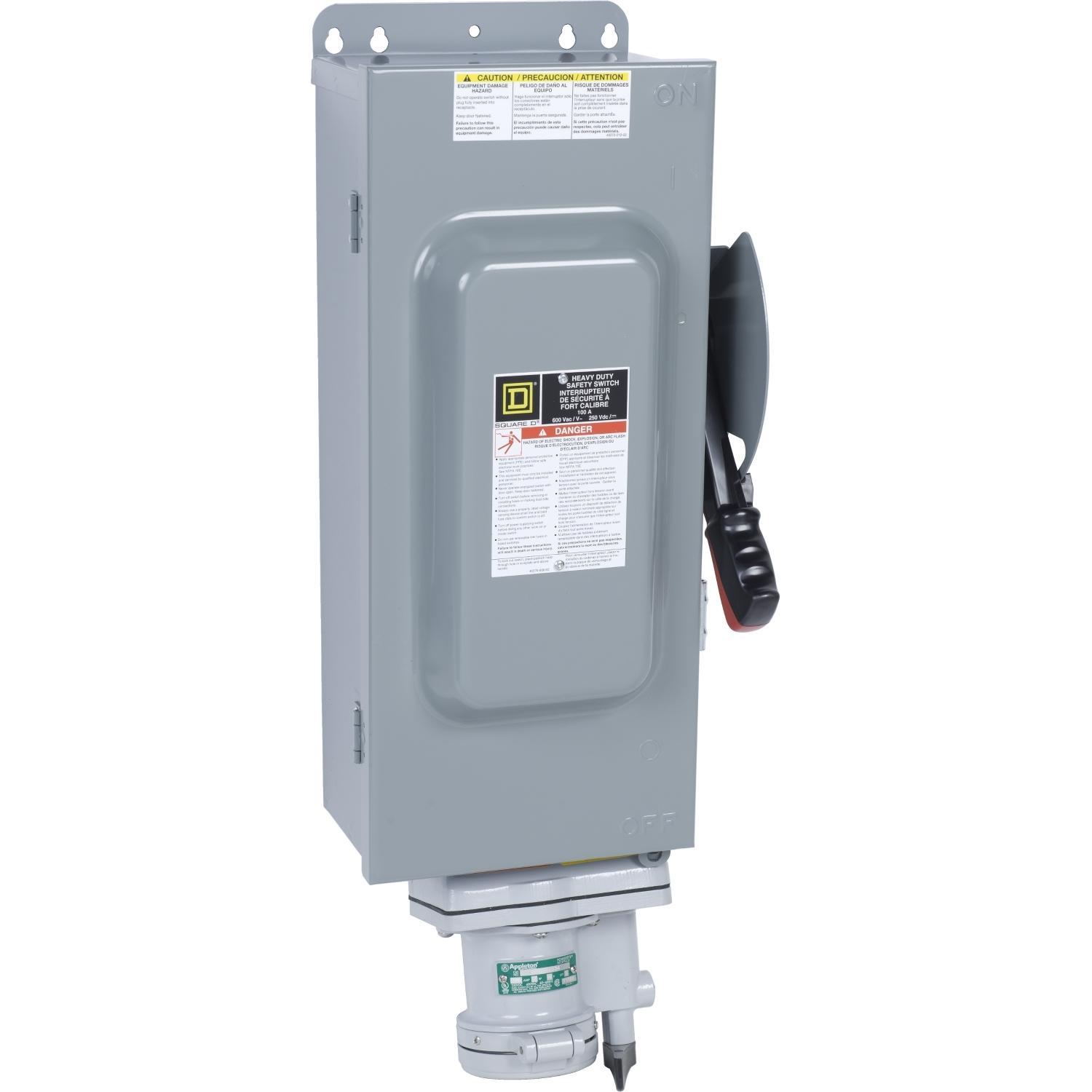

Schneider Electric H363AWA
Part Number # H363AWA
SKU # 2451443
$3575.63 / Each
Typical price:$3758.00 / Each
Schneider Electric H363AWA Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | H363AWA |
| SKU #: | 2451443 |
| Actuator Type: | Handle |
| Amperage Rating: | 100 A |
| Contact Form: | 3PST, TPST |
| Dimensions: | 20-1/2 in H x 10-1/2 in W x 7 in D |
| Enclosure Type: | NEMA 3R/12 |
| Finish: | Galvannealed/Painted |
| Horsepower: | 30 hp, 75 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1/3 |
| Series: | F7 |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Dusttight Driptight Heavy Duty Fusible Disconnect |
| Color: | Gray |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 00785901776277 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3575.63 / Each
Typical price:$3758.00 / Each
Quantity:
- Square D Receptacle Safety Switch, Dusttight Driptight Heavy Duty Fusible Disconnect, Series: F7, 600 V AC/250 V DC, 100 A, 30 hp, 75 hp, 1/3, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 3PST, Handle Actuator, NEMA 3R/12, Surface Mount, Lug Terminal, -22 to 104 deg F, 20-1/2 in H x 10-1/2 in W x 7 in D, Steel, Gray, Galvannealed/Painted
H363AWA Application
Commercial, Industrial and Indoor ApplicationsH363AWA Item Features
- Type 12K with knockouts indoor dust and drip tight enclosure with Appleton Powertite receptacle
- Suitable for service entrance (US only) when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
H363AWA Standards
RoHS Compliant|Federal Specification WS-865C|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2451443Part Number #H363AWAUNSPSC39122205UPC00785901776277
