Brand: Schneider Electric

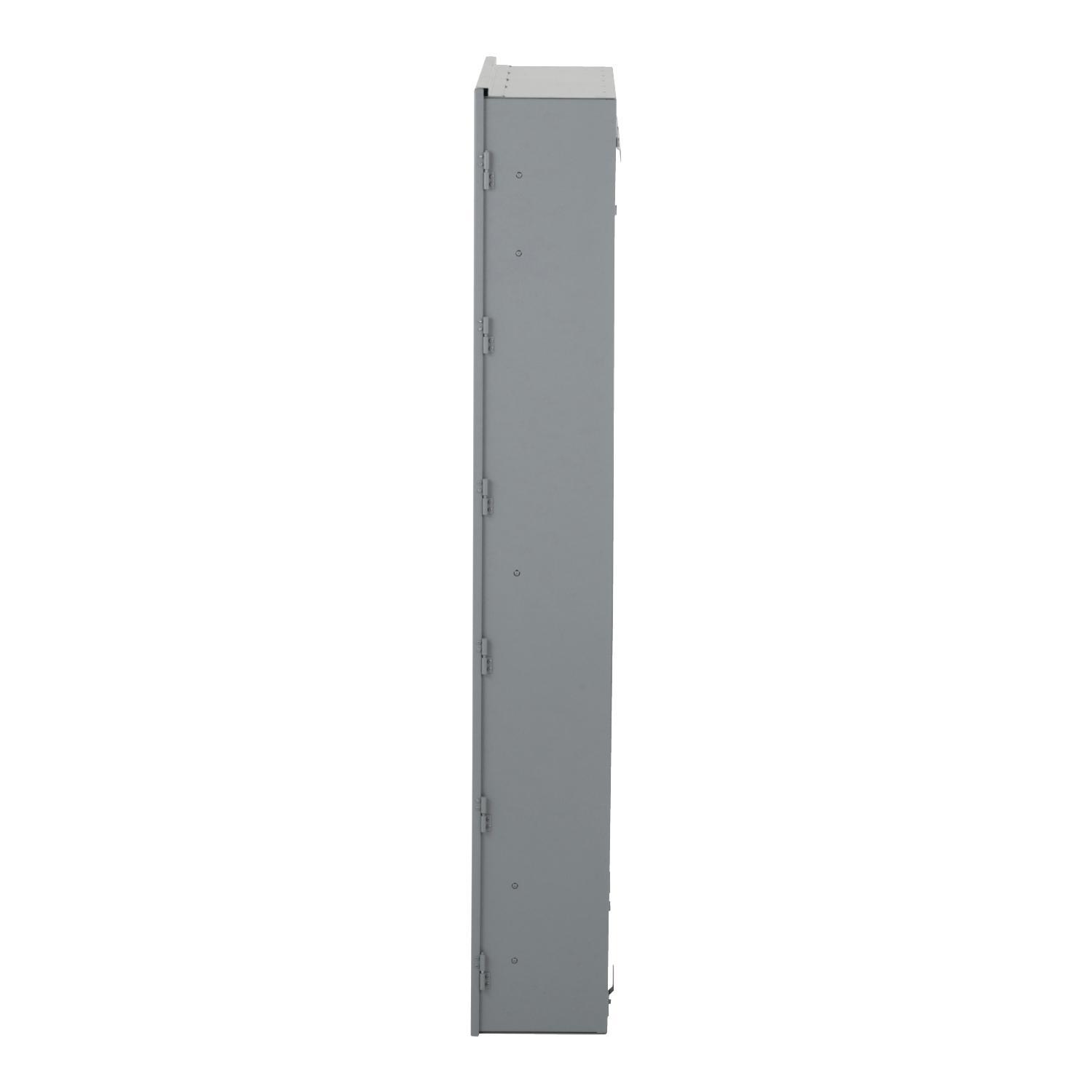

Schneider Electric HCJ3291WP Type 1 Enclosure, NEMA 1/NEMA 3R NEMA Rating, 298.45 mm D
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric HCJ3291WP Type 1 Enclosure, NEMA 1/NEMA 3R NEMA Rating, 298.45 mm D
Brand: Schneider Electric
Schneider Electric HCJ3291WP Type 1 Enclosure, NEMA 1/NEMA 3R NEMA Rating, 298.45 mm D
Part #:HCJ3291WP
SKU #: 2429531
$2007.06/EA
Key Features
Part #:HCJ3291WP
SKU #: 2429531
Brand: Schneider Electric
NEMA Rating: NEMA 1/NEMA 3R
Type: Type 1
Country of origin: MX
Depth: 298.45 mm
Mounting type: Wall
$2007.06/EA
- 600 Vac, 250 Vdc maximum
- 1200 Amp main circuit breaker or main lugs
- 1200 Amp maximum branch circuit breaker
- Fully rated and series rated systems available
- Main Lug interiors are field convertible for top or bottom feed
- Interior, front and circuit breakers require only a screwdriver for installation
- Dead front trim is easily installed
- Branch circuit breaker mounting flexibility; capable of mounting a 15 A circuit breaker next to or across from a 1200 A circuit breaker
- Circuit breakers on right-hand side of I-Line bus stack completely independent of position and frame size of circuit breakers on left-hand side
- Circuit breaker plug-on jaws have no fasteners - less time spent on installation and maintenance
- Circuit breakers do not require any additional external mounting hardware
- Average branch circuit breaker installation time less than one minute
- Circuit breaker connections are blow-on type which draw the connector jaws together, providing a firmer grip under high level short circuit conditions
- Circuit breakers include a push-to-trip feature to exercise the tripping mechanism
Specifications
Brand: Schneider Electric
NEMA Rating: NEMA 1/NEMA 3R
Type: Type 1
Country of origin: MX
Depth: 298.45 mm
Mounting type: Wall
Manufacturer Name: Schneider Electric
UNSPSC: 39121103
UPC: 00785901492788
Schneider Electric HCJ3291WP Type 1 Enclosure, NEMA 1/NEMA 3R NEMA Rating, 298.45 mm D
Additional Description: SQD -HCJ3291WP HCJ 32 x 91 inch Type 3R enclosure
Catalog Description: Box, I-Line Panelboard, HCJ, 32in W x 91in H x 9.5in D, Type 3R/5/12, w/front
Item FeaturesFor Panelboard
Item Features
Item FeaturesUL|CSA
