HMISCU8A5

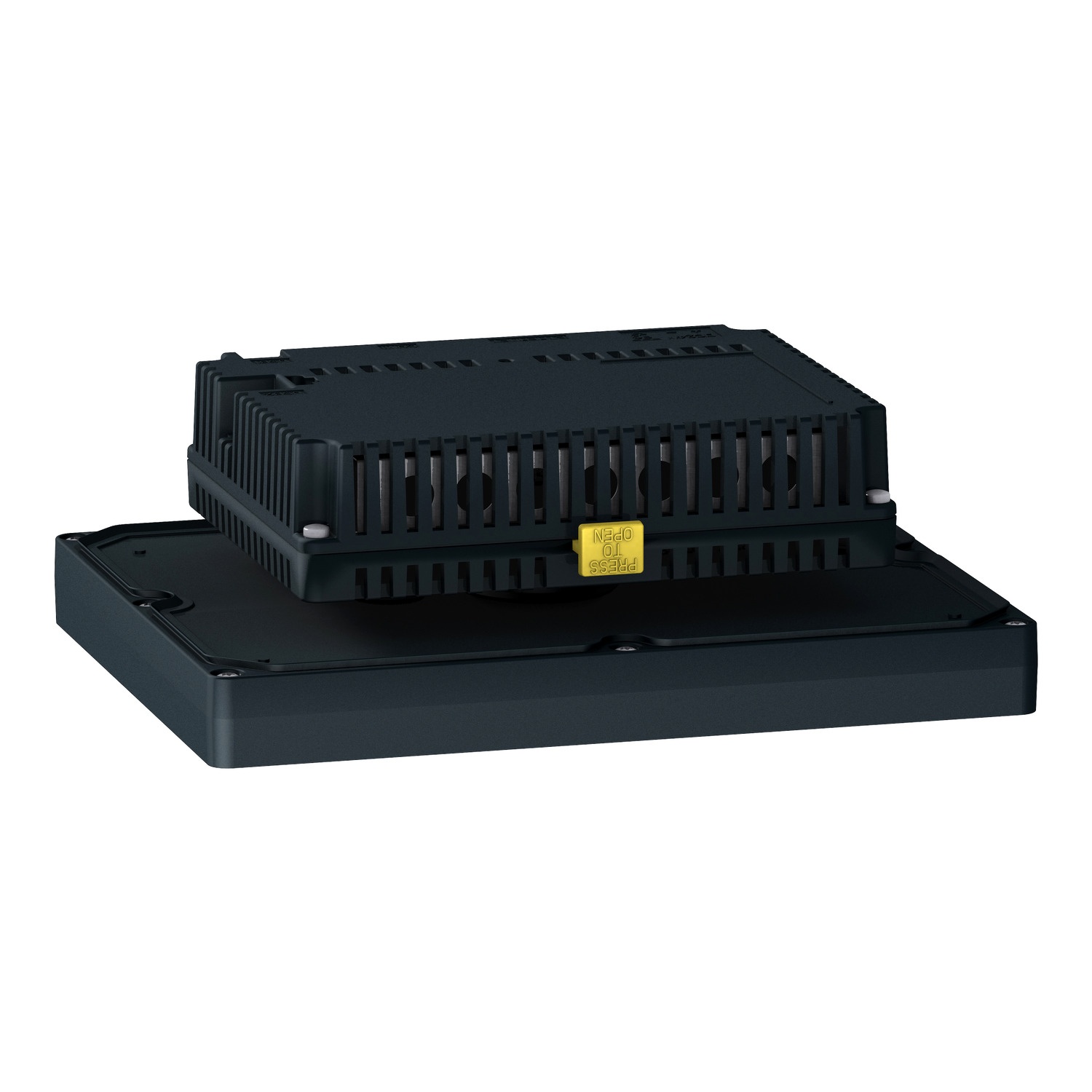

Schneider Electric HMISCU8A5 Magelis Scu Hmi Controller Panel
Part Number # HMISCU8A5
SKU # 2275814
$1374.30 / Each
Schneider Electric HMISCU8A5 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HMISCU8A5 |
| SKU #: | 2275814 |
| Dimensions: | 76.22 mm L x 163 mm W x 129.4 mm H |
| Display Resolution: | 320 x 240 pixel QVGA |
| Display Size: | 5.7 in |
| Display Type: | Backlit LED Color TFT LCD |
| Power Source: | 24 VDC, 30 A, 24 W |
| Software: | SoMachine |
| Temperature Rating (Degrees F): | 32 to 122 deg F |
| Type: | Small Touch |
| Viewing Area: | 60 deg Left/Right/Bottom/40 deg Top |
| Country of origin: | CN |
| Material: | Polycarbonate/Polybutylene Terephthalate and Polyacrylic Acid |
| Memory: | 128 MB Flash NAND/128 kB Internal FRAM/128 MB Application DRAM |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 43211715 |
| UPC: | 00785901189923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1374.30 / Each
Quantity:
- Schneider Electric Square D Magelis SCU HMI Controller Panel, Small Touch, 24 VDC, 30 A, 24 W Power Source, Backlit LED Color TFT LCD Display, 5.7 in Display, 2 USB/COM1/CANopen Communication Ports, 320 x 240 pixel QVGA Display Resolution, SoMachine Software, Memory: 128 MB Flash NAND/128 kB Internal FRAM/128 MB Application DRAM, 16 Level Brightness, 60 deg Left/Right/Bottom/40 deg Top Viewing Area, 32 to 122 deg F, Polycarbonate/Polybutylene Terephthalate and Polyacrylic Acid, 76.22 mm L x 163 mm W x 129.4 mm H Dimensions
HMISCU8A5 Standards
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2;electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2;susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3;electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4;electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4;surge immunity test - test level: 2 kV (po;+/- 3.5 mm 5-9 Hz) IEC 60068-2-6;1 gn 9-150 Hz) IEC 60068-2-6;147 m/s² 11 ms on DIN rail)IEC 60068-2-27;294 m/s² 6 ms on panel mounting)IEC 60068-2-27SKU #2275814Part Number #HMISCU8A5UNSPSC43211715UPC00785901189923
