Part Number # HOM2150
SKU # 2452264
HOM2150
Schneider Electric HOM2150
Part Number # HOM2150
SKU # 2452264
Schneider Electric HOM2150 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HOM2150 |
| SKU #: | 2452264 |
| Amperage Rating: | 150 A |
| Dimensions: | 2.98 in L |
| Enclosure Type: | NEMA 1/2 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | 75 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Standard |
| Wire Size: | 4 AWG to 300 kcmil |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Mounting type: | Plug-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901065838 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric HOM2150
Brand: Schneider Electric
Part Number: HOM2150
Square D™ HomeLine™ Miniature Circuit Breaker, Standard, 120/240 VAC, 150 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, Terminal Screw Connection, 4 AWG to 300 kcmil Wire, NEMA 1/2 Enclosure, Plug-In Mounting, 75 deg C, 2.98 in L Dimensions
Additional Description: SQD -HOM2150 MINIATURE CIRCUIT BREAKER 120/240V 150A
Catalog Description: Mini circuit breaker, Homeline, 150A, 4 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
HOM2150 Application
For overload and short circuit protectionHOM2150 Item Features
- Easy plug on design with SE Homeline Loadcenters
HOM2150 Standards
Buy American Act Compliant|RoHS Compliant|UL File No. E6294|Federal Specification W-P-115B|NEC/CSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.govSKU #2452264Part Number #HOM2150UNSPSC39121603UPC00785901065838

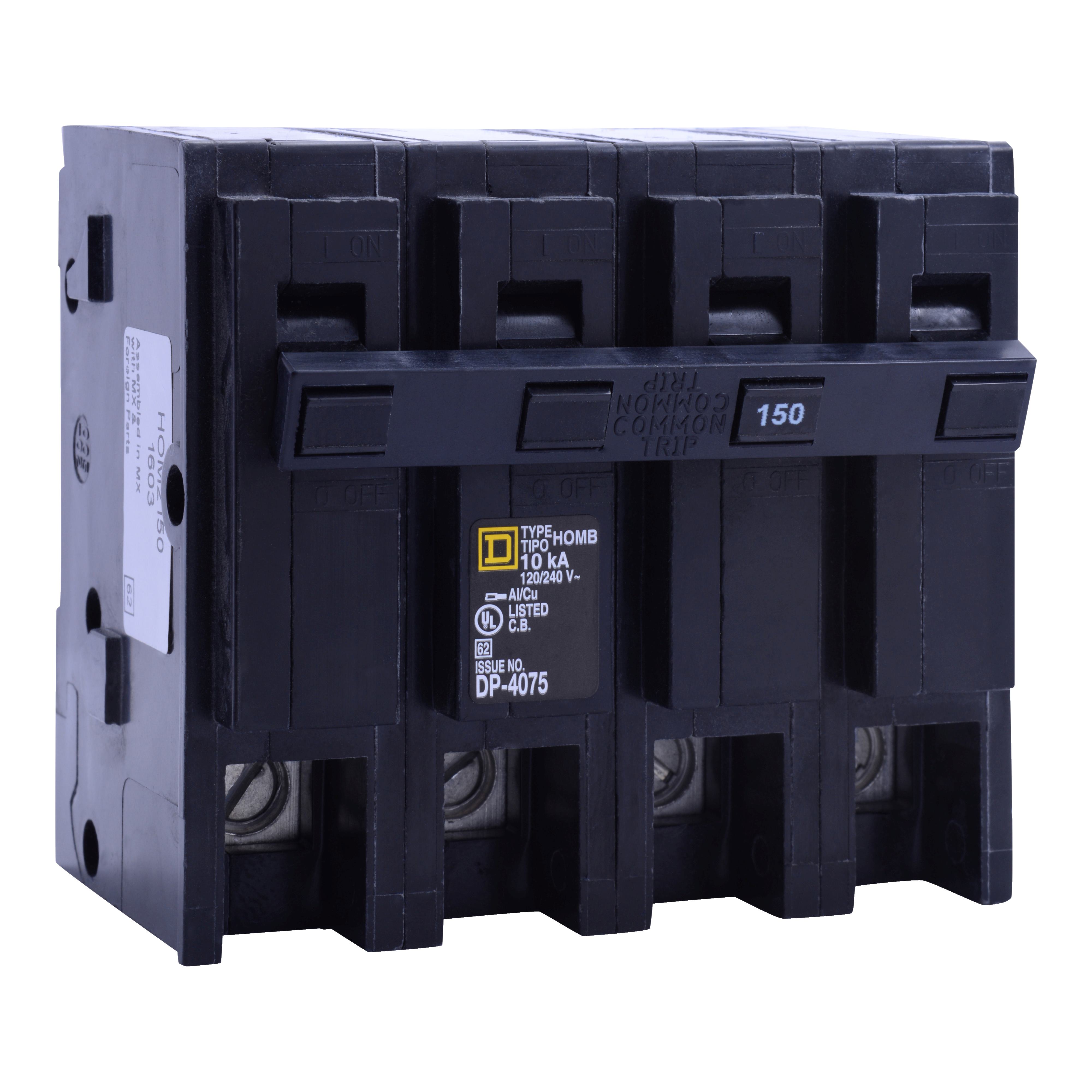

Image provided may only be a representation of final product and may include optional equipment
