Part Number # HU362AWCVW
SKU # 2444071

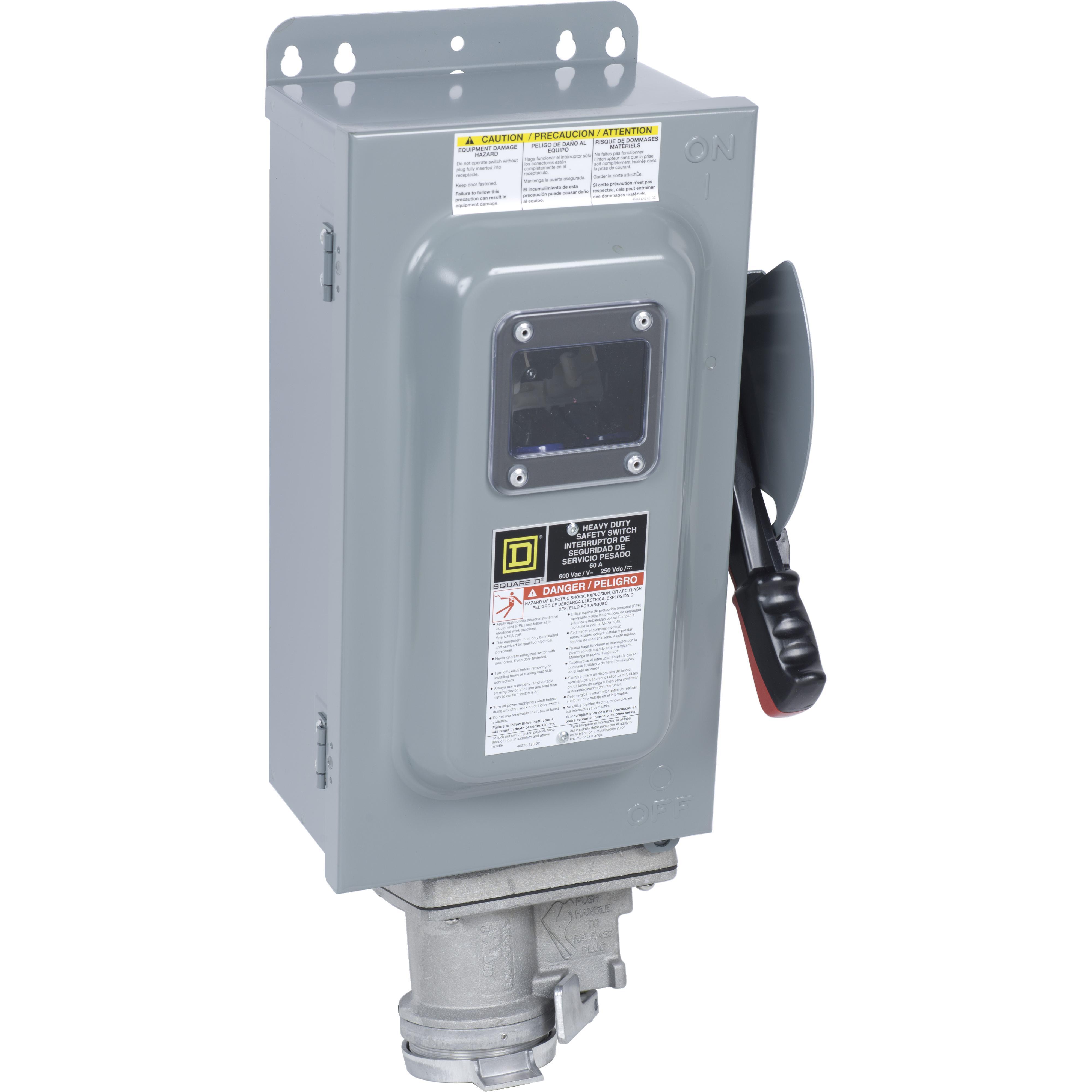

Image provided may only be a representation of
final product and may include optional equipment
HU362AWCVW
Schneider Electric HU362AWCVW
Part Number # HU362AWCVW
SKU # 2444071
Square D HU362AWCVW Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HU362AWCVW |
| SKU #: | 2444071 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Contact Form: | 3PST, TPST |
| Enclosure Type: | NEMA 12K |
| Finish: | Galvannealed/Painted |
| Horsepower: | 30 hp at 600 VAC 1-Phase, 60 hp at 600 VAC 3-Phase |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1/3 |
| Series: | F7 |
| Short Circuit Current Rating (kA): | 200 A |
| Temperature Rating (Degrees F): | -22 to 104 deg F |
| Terminal Type: | Lug |
| Type: | Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof |
| Country of origin: | US |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122218 |
| UPC: | 00785901208990 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric HU362AWCVW
Brand: Square D
Part Number: HU362AWCVW
Square D™ Heavy Duty Safety Switch, Dusttight Driptight Iceproof Non-Fusible Rainproof Sleetproof, Series: F7, 600 VAC/VDC, 60 A, 30 hp at 600 VAC 1-Phase, 60 hp at 600 VAC 3-Phase, 1/3, 3 Pole, 4 Wires, 200 A Short Circuit Current, TPST, Handle Actuator, NEMA 12K, Surface Mount, Lug Terminal, -22 to 104 deg F, Steel, Gray, Galvannealed/Painted
Additional Description: SQD -HU362AWCVW SW UNFUSED HD 60A/CR-HI RECEPTACLE/VIEW
Catalog Description: Safety switch, heavy duty, non fusible, 60A, 600VAC/DC, 3 poles, 60HP, NEMA 12K, Crouse-Hinds Arktite, viewing window
HU362AWCVW Application
Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor ApplicationsHU362AWCVW Item Features
- Visible blades for positive indication that switch is OFF
- Quick make/quick break operating mechanism
- Optional viewing window allows visual verification of blade position without opening door
- Red and black handle indicates the ON (red)/OFF (black) condition of the switch
- Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
- Handle lock-off provision for multiple padlocks OFF position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
- Spring reinforced plated copper fuse clips
- Viewing window
- https://www.youtube.com/embed/3j1msgeG034
HU362AWCVW Standards
Federal Specification WS-865c|UL 98 File No. E2875|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2444071Part Number #HU362AWCVWUNSPSC39122218UPC00785901208990
