Part Number # LA1KN11
SKU # 36636
LA1KN11

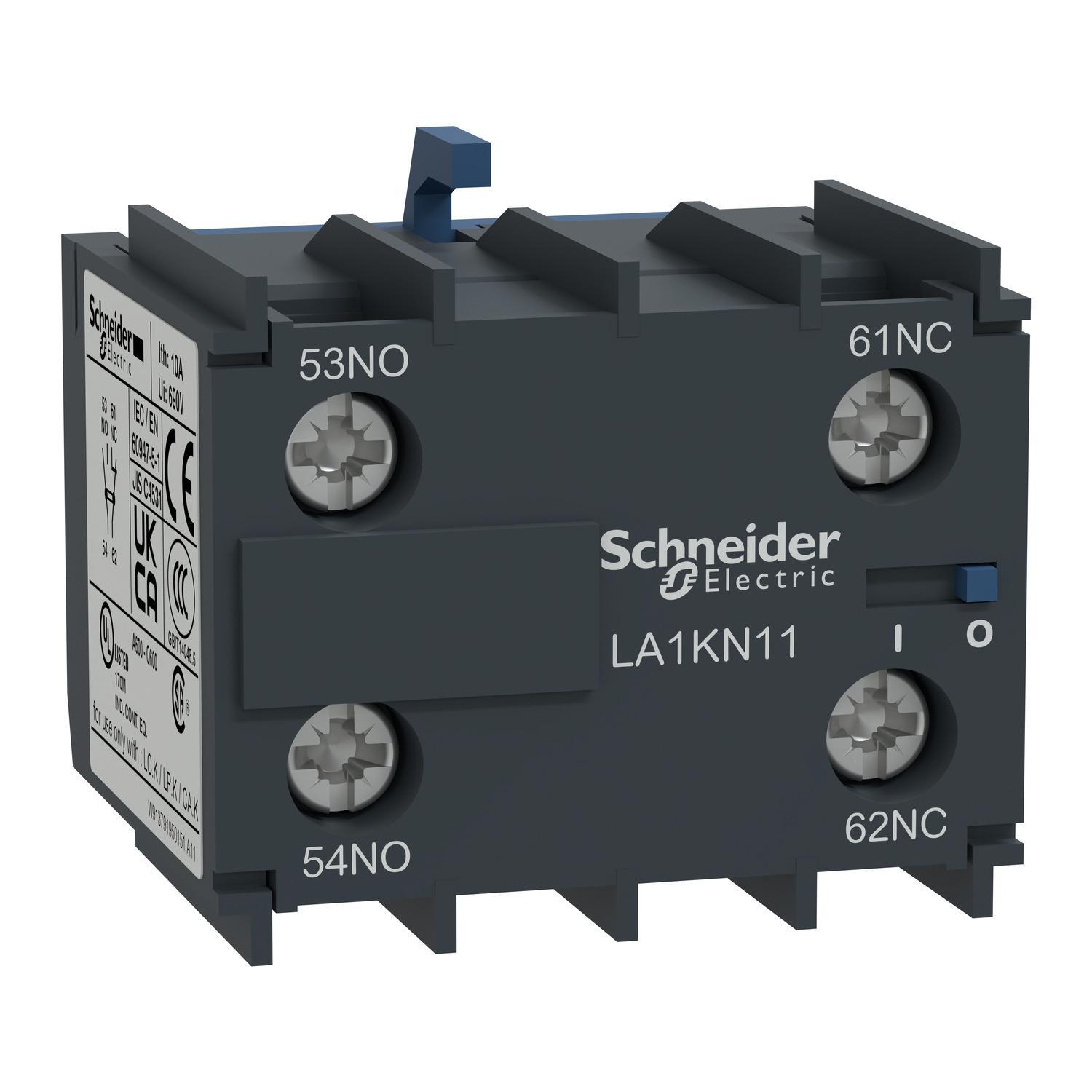

Schneider Electric LA1KN11 Tesys K Auxiliary Contact Block
Part Number # LA1KN11
SKU # 36636
$17.82 / Each
Schneider Electric LA1KN11 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LA1KN11 |
| SKU #: | 36636 |
| Dimensions: | 35 mm D |
| Environmental Conditions: | IP2X |
| Number of Contacts: | 1NO-1NC |
| Operating Temperature: | -25 to 50 deg C |
| Suitable For Use With: | TeSys LA1 Contactor |
| Type: | Instantaneous Normal Environment |
| UNSPSC: | 39121529 |
| UPC: | 00785901883678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.82 / Each
Quantity:
- Schneider Electric Square D TeSys K Auxiliary Contact Block, Instantaneous Normal Environment, Series: LA1, 690 V AC, 10 A, <=400 Hz Frequency, 1NO-1NC Contacts, Screw Clamp Tip, Front Clip-On Mounting, -25 to 50 deg C Operating, Environmental Conditions: IP2X, For Use With: TeSys LA1 Contactor, 35 mm D Dimensions
LA1KN11 Item Features
- Screw clamp terminal connection
LA1KN11 Standards
BS 5424|CCN NKCR|CE Certified|CSA File No. LR43364 Class 3211 02|ECCN: EAR99|IEC 60947|NF C 63-110|RoHS Compliant|UL File No. E164353|VDE 0106|VDE 0660SKU #36636Part Number #LA1KN11UNSPSC39121529UPC00785901883678
