Part Number # LADN11P
SKU # 2446680
Image Disclaimers Message
Brand: Schneider Electric
LADN11P

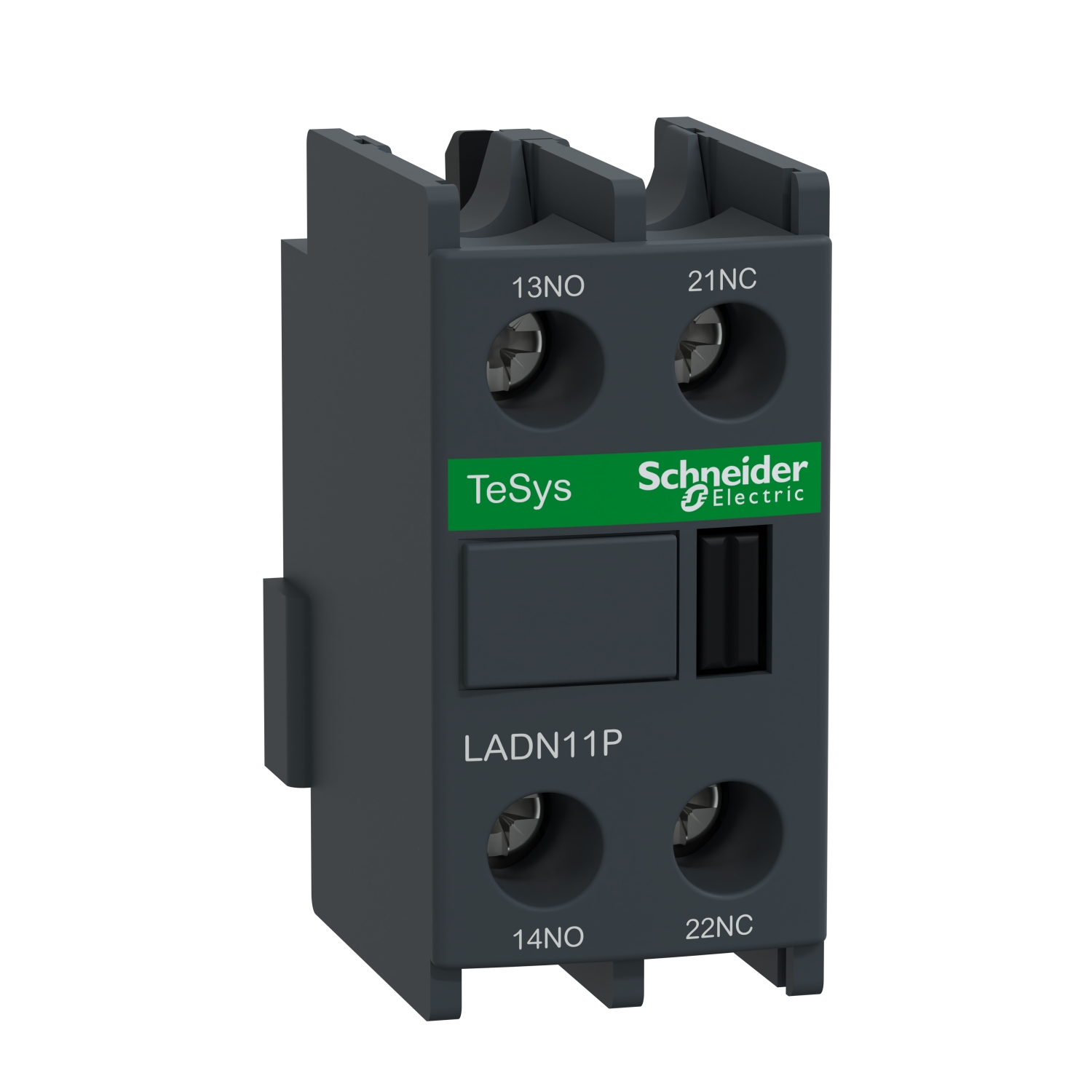

Schneider Electric LADN11P
Part Number # LADN11P
SKU # 2446680
$24.62 / Each
Schneider Electric LADN11P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LADN11P |
| SKU #: | 2446680 |
| Amperage Rating: | 0.1 to 6 A |
| Dimensions: | 1.89 in H x 1.02 in W x 1.65 in D |
| Environmental Conditions: | -60 to 80 deg C Storage Temperature deg C |
| Frequency Rating: | 400 Hz |
| Number of Contacts: | 1 NO + 1 NC |
| Operating Cycles: | 30 M cycles |
| Operating Temperature: | -5 to 60 deg C |
| Series: | TeSys |
| Type: | Auxiliary Contact |
| Color: | Dark Grey |
| Country of origin: | FR |
| Mounting type: | Front |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121522 |
| UPC: | 03389110383850 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$24.62 / Each
Quantity:
- Schneider Electric LADN11P, Auxiliary Contact, TeSys, 690 V AC, 0.1 to 6 A, 400 Hz Frequency, 1 NO + 1 NC Contacts, >10 MOhm Contact Resistance, Screw clamp Tip, Front Mounting, 30 M cycles Operating Cycles, -5 to 60 deg C Operating, Environmental Conditions: -60 to 80 deg C Storage Temperature , Dark grey, 1.89 in H x 1.02 in W x 1.65 in D Dimensions
LADN11P Item Features
- The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world
- They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts
- Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps
- Available at 100 kA on systems with circuit breakers, up to 480 volts and greater than 32 amps
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
LADN11P Standards
IECE|E CB Scheme UL|CSA CCC EAC EN/IEC 60947-5-1 UL|60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012|IECE|E CB SchemeUL|CSACCCE|AC|EN/IEC 60947-5-1UL|60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5EN 50012SKU #2446680Part Number #LADN11PUNSPSC39121522UPC03389110383850
