Brand: Schneider Electric
LC1D12P7

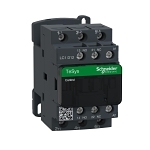

Schneider Electric LC1D12P7 Tesys D Iec Contactor
Part Number # LC1D12P7
SKU # 2218087
$141.56 / Each
Schneider Electric LC1D12P7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D12P7 |
| SKU #: | 2218087 |
| Coil Power Rating: | 10 hp at 575/600 VAC, 7.5/7.7 VA |
| Coil Voltage: | 230, 230/690 V AC, 300 V DC, 230/690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 25/60 A at 600 V AC, 10/60 A at 600 V AC, 25/60 A at 600 VAC, 10/60 A at 600 VAC |
| Dimensions: | 45 mm W x 84 mm D x 77 mm H, 77 mm H x 45 mm W x 86 mm D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -5 to 60, -5 to 60/-40 to 70 deg C |
| Series: | LC1D, TeSys™ D LC1D |
| Size: | 45/77/86 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Direct On-Line, Non-Reversing |
| Wattage: | 0.36/1.56 W |
| Connection type: | Screw Clamp |
| Country of origin: | ID |
| Mounting type: | Plate/Rail, Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901549741 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$141.56 / Each
Quantity:
- Schneider Electric Square D TeSys D IEC Contactor, Direct On-Line, Series: LC1D, 230/690 V AC, 300 V DC Coil, 12/25 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz Frequency, 0.36/1.56 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25/60 A at 600 VAC, 10/60 A at 600 VAC Contact, Screw Clamp Connection, 45/77/86 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 84 mm D x 77 mm H Dimensions
LC1D12P7 Application
Industry, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC1D12P7 Item Features
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter application
- New TeSys D green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- All contactors include built-in auxiliary contact
- All screw connection have IP20 finger safe terminals with both north American and international terminal markings
- Designed for perfect integration in control system
- Can be used to create motor starters for any type of application
LC1D12P7 Standards
BV Certified|CCC Certified|CSA C22.2 No. 14|DNV Certified|ECCN: EAR99|EN 60947-4-1|EN 60947-5-1|GL Certified|GoST-R Certified|Green Premium|IEC 60947-4-1|IEC 60947-5-1|Lloyds Register Certified|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RINA Certified|RoHS Compliant|UL 508|WEEE CompliantSKU #2218087Part Number #LC1D12P7UNSPSC39121529UPC00785901549741
