Brand: Schneider Electric

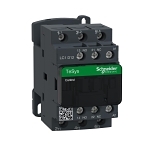

Schneider Electric LC1D12Z7 Tesys D Contactor
Part Number # LC1D12Z7
SKU # 2393227
$162.80 / Each
Schneider Electric LC1D12Z7 Key Features
Brand: Schneider Electric
Part Number # LC1D12Z7
SKU #2393227
Coil Power Rating: 7.5, 7.5 VA
Coil Voltage: 21, 21 VAC
Contact Configuration: 3NO
Contact Rating: 25/10, 25/10 A
Dimensions: 45 mm W x 86 mm D x 77 mm H
Enclosure Type: IP20
Frequency Rating: 25 to 400, 25 to 400 Hz
Number of Auxiliary Contacts: 1NO-1NC
Number of Poles: 3
Operating Cycles: 3600, 3600 Cycles
Operating Temperature: -5 to 60, -5 to 60 deg C
Series: LC1D
Terminal Type: Screw Clamp
Wattage: 0.36, 0.36 W
Connection type: Screw
Country of origin: FR
Mounting type: Surface
Manufacturer Name: Schneider Electric
UNSPSC: 39121529
UPC: 00785901292883
$162.80 / Each
- Schneider Electric Square D TeSys D Contactor, Series: LC1D, 21 VAC Coil, 25 A Maximum Load Current, 7.5 VA Coil, 3 Pole, 25 to 400 Hz Frequency, 0.36 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 25/10 A Contact, Screw Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -5 to 60 deg C Operating, Surface Mounting, 45 mm W x 86 mm D x 77 mm H Dimensions
LC1D12Z7 Application
For motor control and resistive loadLC1D12Z7 Item Features
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Control circuit flexibility
- Without built-in suppressor module
- https://www.youtube.com/embed/ZspiS_-OK5U
LC1D12Z7 Standards
ECCN: EAR99|Green Premium|REACH Compliant|RoHS Compliant|BV|CSA C22.2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-5-1|IEC 60947-4-1|IEC 60695-2-1|UL 508|IEC 60529|RINA|GOST|DNV|LROS|CCC|GL|UL 94|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.govSKU #2393227Part Number #LC1D12Z7UNSPSC39121529UPC00785901292883
