Part Number # LC1D188E7
SKU # 2462788
LC1D188E7

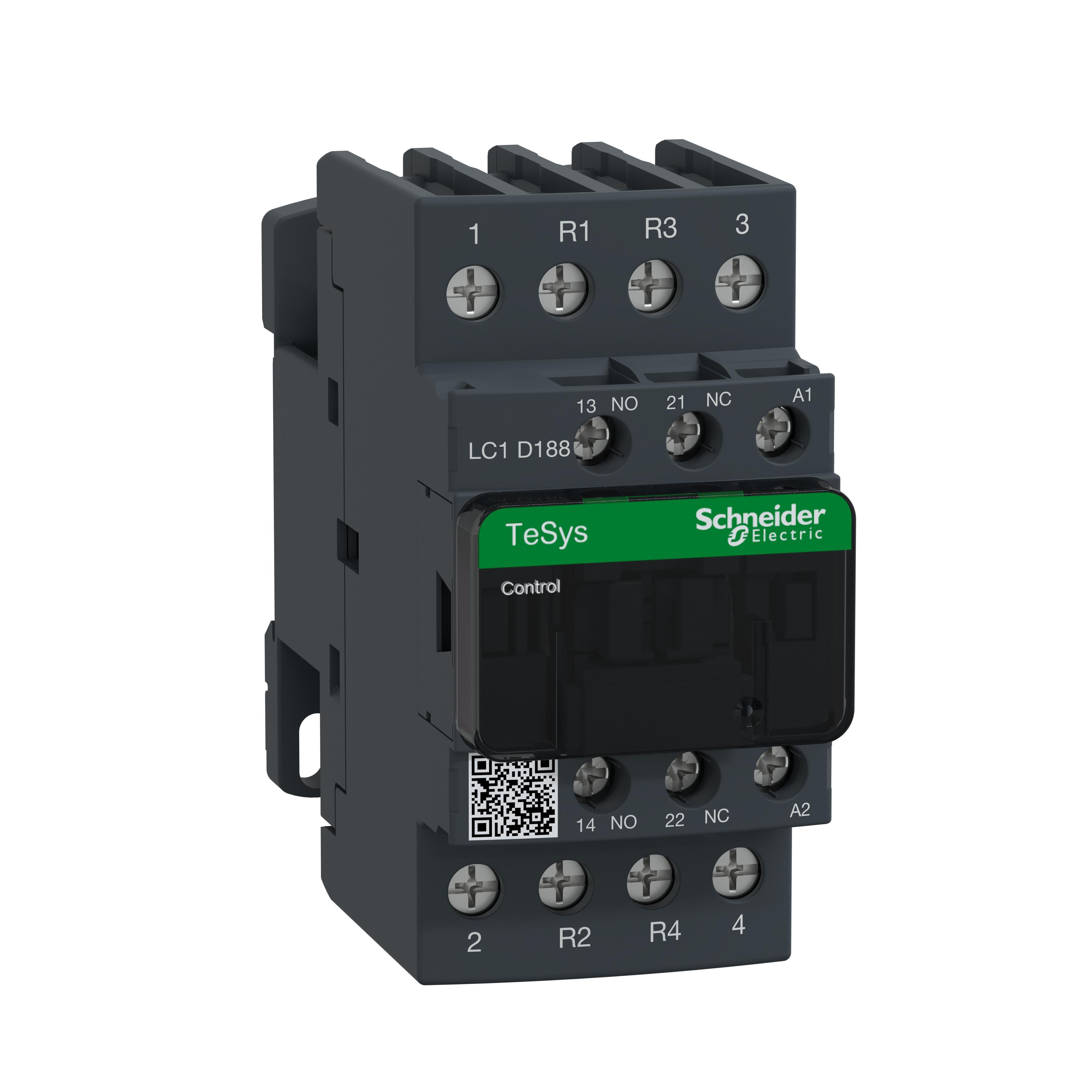

Schneider Electric LC1D188E7
Part Number # LC1D188E7
SKU # 2462788
Schneider Electric LC1D188E7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D188E7 |
| SKU #: | 2462788 |
| Contact Configuration: | 2NO-2NC (Time Delayed) |
| Dimensions: | 4.13 in H x 1.77 in W x 3.90 in D |
| Size: | 4.13 in H x 1.77 in W x 3.90 in D |
| Power factor: | 70 VA |
| UNSPSC: | 39121529 |
| UPC: | 03389110250107 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LC1D188E7
Brand: Schneider Electric
Part Number: LC1D188E7
Schneider Electric LC1D188E7, Contactor, LC1D Series, 48 V AC Coil, 32 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 2.5 W Wattage, 2 NO + 2 NC Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Power Factor: 70 , Screw clamp Connection, 4.13 in H x 1.77 in W x 3.90 in D Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles Operating Cycles, -40 to 140 deg F Operating, Front/Plate Rail Mounting, 4.13 in H x 1.77 in W x 3.90 in D Dimensions
Additional Description: SQD -LC1D188E7 (N) TESYS 4P CTR 32A AC-1 2NO 2NC 48VAC COIL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 32A resistive, 4 pole, 2 NO and 2 NC, 48VAC 50/60Hz coil, open style
LC1D188E7 Application
Resistive loadLC1D188E7 Item Features
- New modern look and feel of all machines
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
LC1D188E7 Standards
PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov|CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508|GL LROS (Lloyds register of shipping) DNV BV RINA UL CCC CSA GOST|GLLROS (Lloyds register of shipping)DNVBVRINAULCCCCSAGOSTSKU #2462788Part Number #LC1D188E7UNSPSC39121529UPC03389110250107
Image provided may only be a representation of final product and may include optional equipment
