Part Number # LC1D188G7
SKU # 2197337
Image Disclaimers Message
Brand: Schneider Electric
LC1D188G7

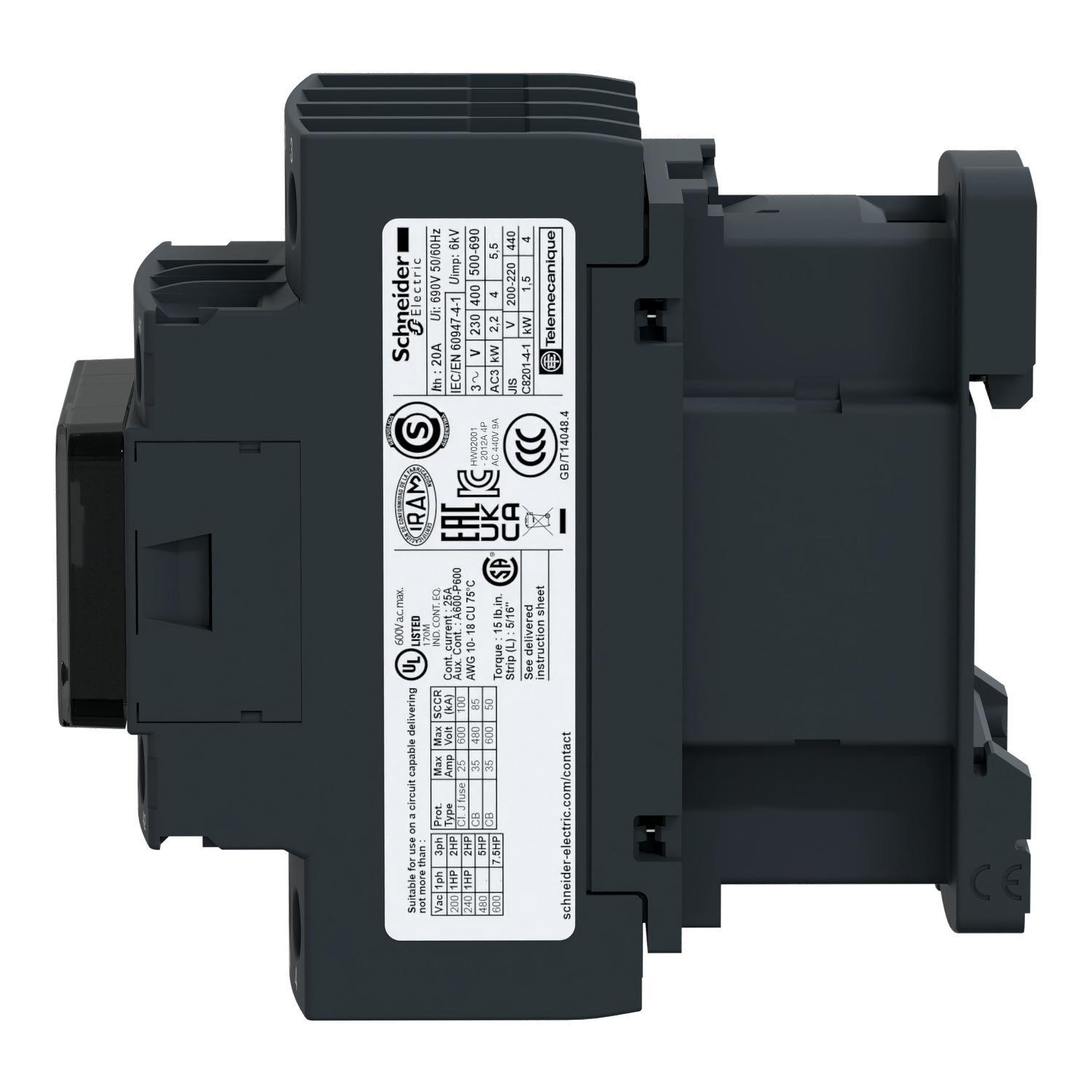

Schneider Electric LC1D188G7 Tesys D Iec Contactor
Part Number # LC1D188G7
SKU # 2197337
$192.73 / Each
Schneider Electric LC1D188G7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D188G7 |
| SKU #: | 2197337 |
| Coil Power Rating: | 70 VA Inrush, 7/7.5 VA Hold-In |
| Coil Voltage: | 120, 120/690 V AC, 300 V DC, 120/690 VAC, 300 VDC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | 32 A at 600 V AC, 32 A at 600 VAC |
| Dimensions: | 105 mm H x 45 mm W x 99 mm D, 45 mm W x 99 mm D x 105 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1 NO-1 NC, 1NO-1NC |
| Number of Poles: | 4 |
| Operating Cycles: | 15000000, 3600 Cycles/hr |
| Operating Temperature: | -4 to 70 deg C, -5 to 60 |
| Series: | D-Line LC1D |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Standard |
| Connection type: | Screw Clamp |
| Country of origin: | ID, MX |
| Mounting type: | Rail/Surface, Surface |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901610694 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$192.73 / Each
Quantity:
- Schneider Electric TeSys D IEC Contactor, Standard, Series: D-Line LC1D, 120/690 V AC, 300 V DC Coil, 32 A Maximum Load Current, 70 VA Inrush, 7/7.5 VA Hold-In Coil, 4 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO-2NC Contact Configuration, 1 NO-1 NC Auxiliary Contacts, 32 A at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, Screw Clamp Terminal, IP2X Enclosure, 3600 Cycles/hr Operating Cycles, -4 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 99 mm D x 105 mm H Dimensions
LC1D188G7 Application
Resistive Load ApplicationLC1D188G7 Item Features
- Without built-in bi-directional peak limiting diode suppressor coil technology
- 32 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current
- https://www.youtube.com/embed/vlEODblcQoo
LC1D188G7 Standards
CCC/CE Marked|CSA C22.2 No. 14 File No. LR43364 Class 3211 04|BV/GL/LROS/RINA Certified|DNV/GOST Approved|ECCN: EAR99|EN 60947-4-1/60947-5-1|IEC 60647-4/60947-4-1/60947-5-1/60529|RoHS Compliant|UL File No. E164862 NLDX/508|VDE 0106|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.SKU #2197337Part Number #LC1D188G7UNSPSC39121529UPC00785901610694
