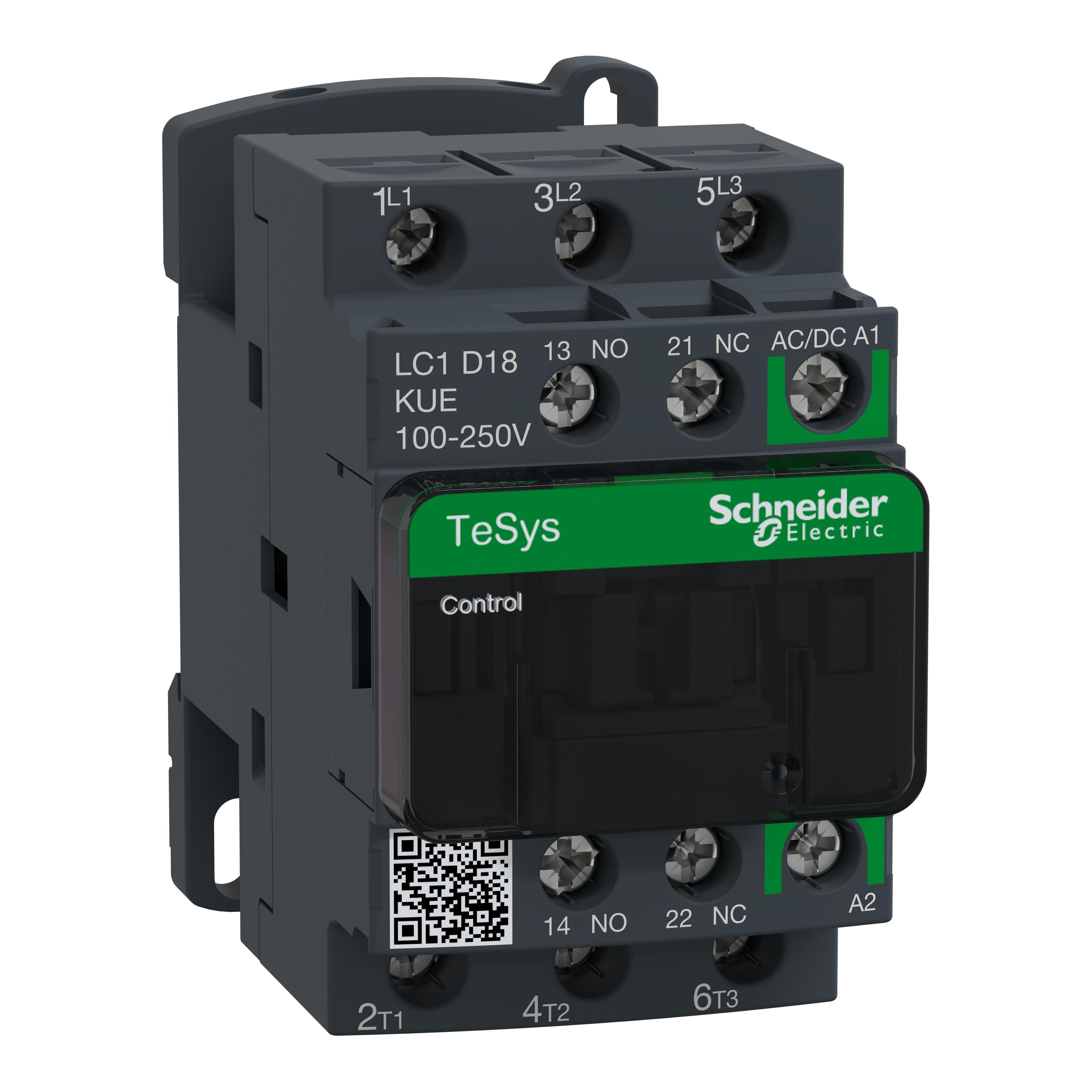

Schneider Electric LC1D18KUE Tesys D Contactor
Part Number # LC1D18KUE
SKU # 2366668
Schneider Electric LC1D18KUE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D18KUE |
| SKU #: | 2366668 |
| Coil Power Rating: | 15 hp at 575/600 VAC 3 ph |
| Coil Voltage: | 100 to 250 V AC/100 to 250 V DC, 100 to 250 VAC/100 to 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10 A at 140 deg F Signaling Circuit, 32 A at 140 deg F Power Circuit |
| Dimensions: | 1.77 in W x 3.39 in D x 3.03 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 140 deg F |
| Terminal Type: | Screw Clamp |
| Type: | 1/3 Phase Non-Reversing |
| Wattage: | 18 W |
| Country of origin: | CZ |
| Mounting type: | Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901965794 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LC1D18KUE Tesys D Contactor
Brand: Schneider Electric
Part Number: LC1D18KUE
Schneider Electric Square D TeSys D Contactor, 1/3 Phase Non-Reversing, 100 to 250 VAC/100 to 250 VDC Coil, 18 A Maximum Load Current, 15 hp at 575/600 VAC 3 ph Coil, 3 Pole, 25 to 400 Hz Frequency, 18 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10 A at 140 deg F Signaling Circuit, 32 A at 140 deg F Power Circuit Contact, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles/hr Operating Cycles, -40 to 140 deg F Operating, Rail/Surface Mounting, Gray/Green, 1.77 in W x 3.39 in
Additional Description: SQD -LC1D18KUE TeSys contactor-3P-AC3- <= 440V 18A
Catalog Description: IEC contactor, TeSys Deca Advanced, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil
LC1D18KUE Application
Motor Control and Resistive LoadLC1D18KUE Item Features
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
LC1D18KUE Standards
CCC Certified|CSA Certified|CSA C22.2 No. 60947-4-1|DNV-GL Certified|EAC Certified|ECCN: EAR99|EN/IEC 60947-4-1|EN/IEC 60947-5-1|LROS Certified|KC Certified|Green Premium|REACH Compliant|UL 60947-4-1|WEEE ListedSKU #2366668Part Number #LC1D18KUEUNSPSC39121529UPC00785901965794
