LC1D40A6EHE
Schneider Electric LC1D40A6EHE
Part Number # LC1D40A6EHE
SKU # 2463110
$351.26 / Each
Schneider Electric LC1D40A6EHE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D40A6EHE |
| SKU #: | 2463110 |
| Coil Power Rating: | 3; 5; 10; 30 |
| Coil Voltage: | 48 to 130 |
| Dimensions: | 122 mm H x 55 mm W x 120 mm D |
| Frequency Rating: | 25 to 400 |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Operating Temperature: | -4 to 60 , 60 to 70 with derating deg C |
| Series: | LC1 |
| Terminal Type: | Lugs-Ring |
| Wattage: | 5.4; 2.4 |
| Mounting type: | Plate/Rail |
| UNSPSC: | 39121529 |
| UPC: | 03606489493363 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$351.26 / Each
Quantity:
- Schneider Electric LC1D40A6EHE, Contactor, LC1, 48 to 130 Coil, 10; 60 Maximum Load Current, 3; 5; 10; 30 Coil, 3 Pole, 25 to 400 Frequency, 5.4; 2.4 Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Lugs-Ring Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 55 mm W x 120 mm D Dimensions
LC1D40A6EHE Application
Motor control, Resistive loadLC1D40A6EHE Item Features
- Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
LC1D40A6EHE Standards
WEEE Compliant|EAC|KC|DNV-GL|LROS (Lloyds register of shipping)|REACH Compliant|EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1|CCC Certified|CSA Certified|UL ListedSKU #2463110Part Number #LC1D40A6EHEUNSPSC39121529UPC03606489493363

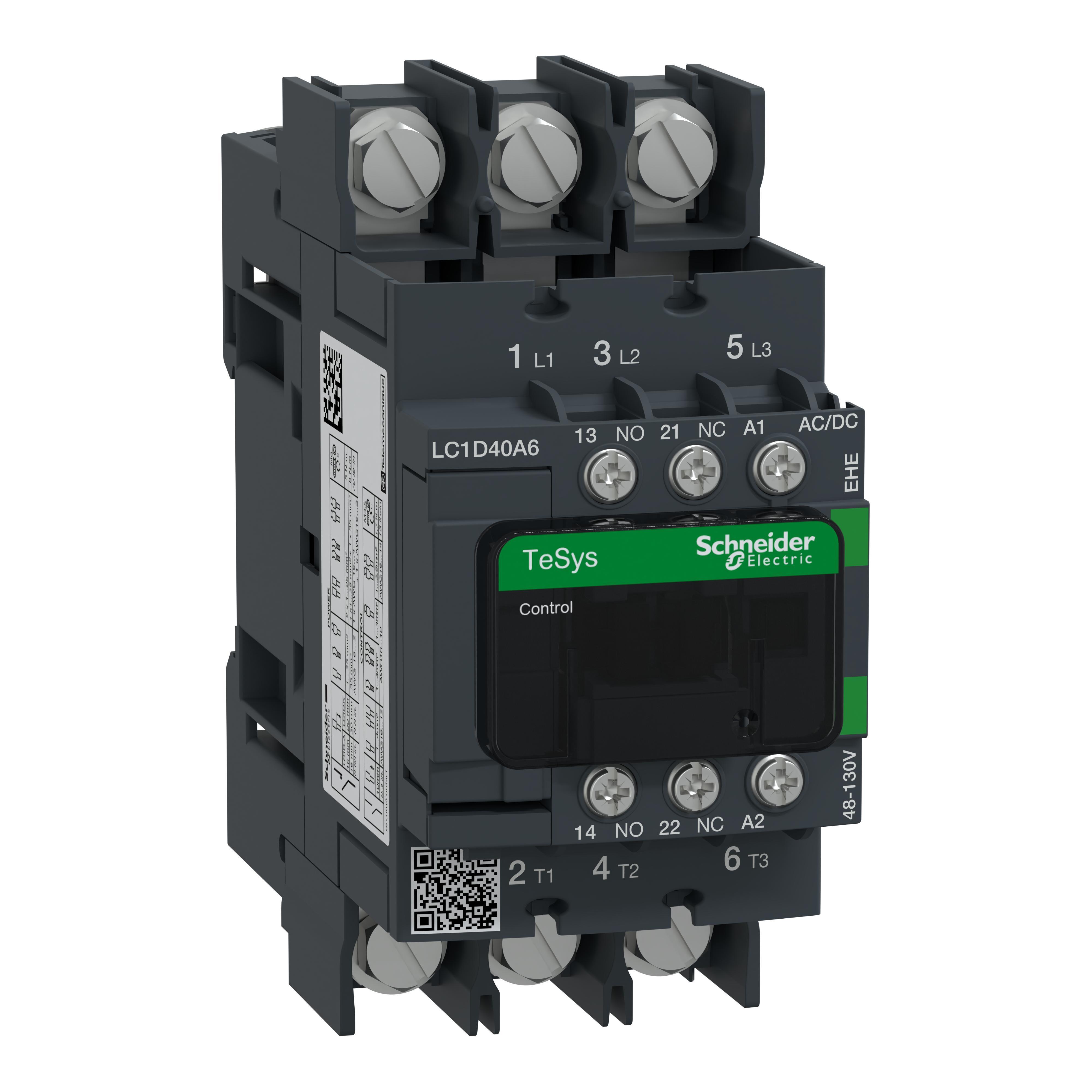

Image provided may only be a representation of final product and may include optional equipment
