Part Number # LC1D40AEHE
SKU # 2387966
Image Disclaimers Message
Brand: Schneider Electric
LC1D40AEHE

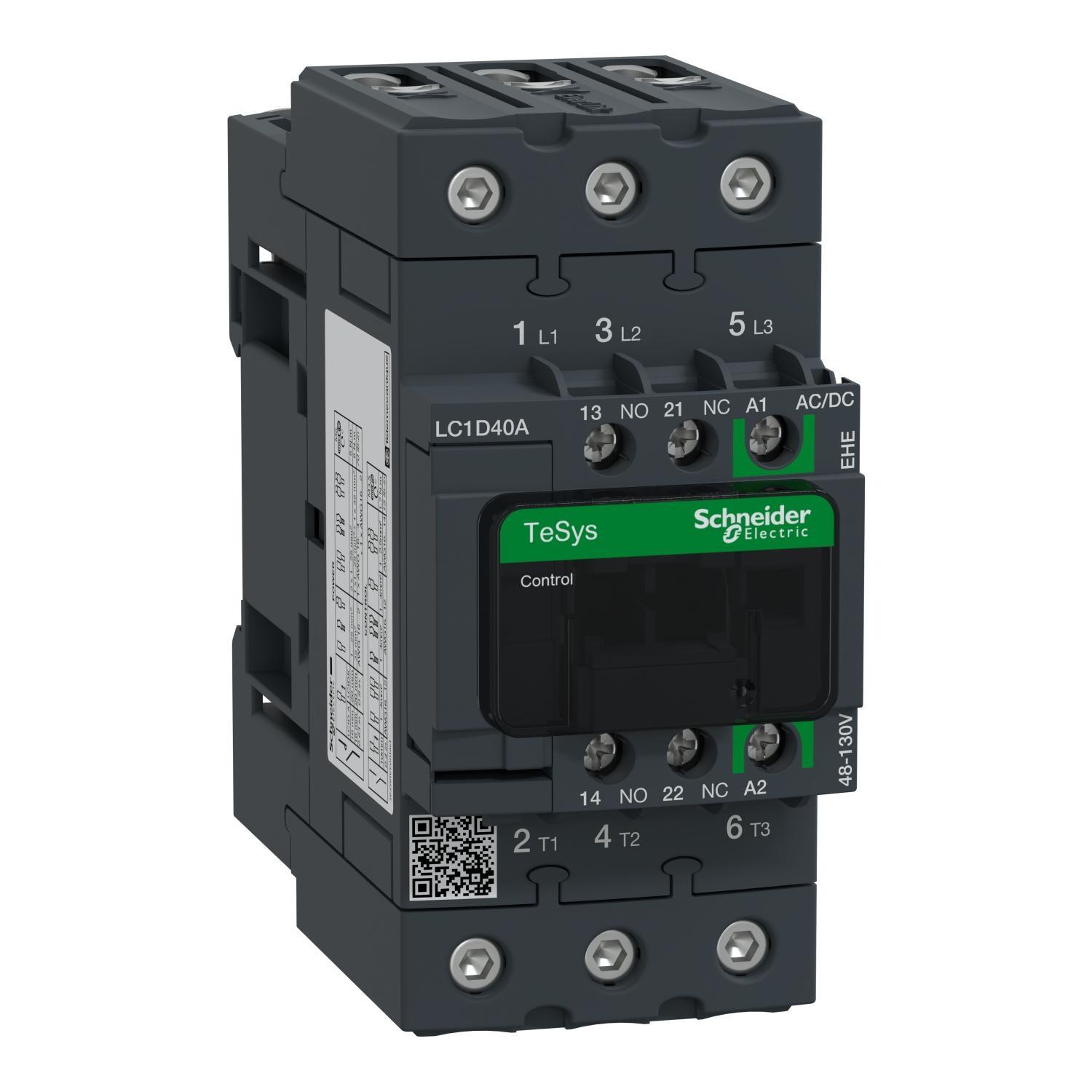

Schneider Electric LC1D40AEHE Contactor
Part Number # LC1D40AEHE
SKU # 2387966
$373.93 / Each
Schneider Electric LC1D40AEHE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D40AEHE |
| SKU #: | 2387966 |
| Coil Power Rating: | 1.4 VAC at 50/60 Hz |
| Coil Voltage: | 48 to 130 V AC/DC, 48 to 130 VAC/VDC |
| Contact Configuration: | 1NO-1NC/3NO |
| Contact Rating: | 10 A at 140 deg F Signalling Circuit, 60 A at 140 deg F Power Circuit |
| Dimensions: | 2.17 in W x 4.72 in D x 4.8 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 158 deg F |
| Series: | TeSys D, TeSys™ D |
| Terminal Type: | Screw Clamp |
| Wattage: | 5.4/2.4 W |
| Country of origin: | FR |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901765127 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$373.93 / Each
Quantity:
- Schneider Electric Contactor, Series: TeSys D, 48 to 130 V AC/DC Coil, 40 A Maximum Load Current, 1.4 VAC at 50/60 Hz Coil, 3 Poles, 25 to 400 Hz Frequency, 5.4/2.4 W Wattage, Mechanically Linked/Mirror Contact, 1NO-1NC/3NO Contact Configuration, 10 A at 140 deg F Signalling Circuit, 60 A at 140 deg F Power Circuit Contact, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -40 to 158 deg F Operating, DIN Rail/Surface Mounting, 2.17 in W x 4.72 in D x 4.8 in H Dimensions
LC1D40AEHE Application
For resistive load motor control applicationsLC1D40AEHE Item Features
- Rated 40A AC-3 18.5kW at 400V
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
LC1D40AEHE Standards
BV Certified|CCC Certified|CSA C22.2 14|DNV Certified|EN 60947-4-1/60947-5-1|GL Certified|GOST Certified|Green Premium Listed|IEC 60947-4-1/60947-5-1|LROS Certified|REACH Compliant|RINA Certified|RoHS Compliant|UL File No. 508|PROP65: This product can expose you to chemicals including, Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.SKU #2387966Part Number #LC1D40AEHEUNSPSC39121529UPC00785901765127
