Part Number # LC1D40AN7
SKU # 2395188
LC1D40AN7
Schneider Electric, LC1D40AN7, High Power Contactors, TeSys Deca, Series: LC1D, 690 VAC, 300 VDC Coil, 40 A Maximum Load Current, 140/160 W Inrush, 13/15 W Hold-In Coil, 3 Pole, 25, 400 Hz Frequency, 5.4, 2.4 W Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1NC + 1NO Auxiliary Contacts, Screw Clamp Connection, 3600 Cycles/hr Operating Cycles, -40 to 60 deg C Operating, Plate/Rail Mounting, 122 mm H x 55 mm W x 120 mm D Dimensions
Part Number # LC1D40AN7
SKU # 2395188
Schneider Electric LC1D40AN7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D40AN7 |
| SKU #: | 2395188 |
| Coil Power Rating: | 140/160 W Inrush, 13/15 W Hold-In |
| Coil Voltage: | 690 V AC, 300 V DC, 690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 122 mm H x 55 mm W x 120 mm D |
| Frequency Rating: | 25, 400 Hz |
| Number of Auxiliary Contacts: | 1NC + 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 60 deg C |
| Series: | LC1D |
| Terminal Type: | Screw Clamp |
| Type: | TeSys Deca |
| Wattage: | 5.4, 2.4 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR, ID |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389119408448 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric, LC1D40AN7, High Power Contactors, TeSys Deca, Series: LC1D, 690 VAC, 300 VDC Coil, 40 A Maximum Load Current, 140/160 W Inrush, 13/15 W Hold-In Coil, 3 Pole, 25, 400 Hz Frequency, 5.4, 2.4 W Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1NC + 1NO Auxiliary Contacts, Screw Clamp Connection, 3600 Cycles/hr Operating Cycles, -40 to 60 deg C Operating, Plate/Rail Mounting, 122 mm H x 55 mm W x 120 mm D Dimensions
Brand: Schneider Electric
Part Number: LC1D40AN7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 415 V AC 50/60 Hz coil
Additional Description: SQD -LC1D40AN7 TeSys 3P EVLK CTR 40A 18,5KW AC3 415VAC 40A IEC
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 40A, 30HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 415VAC 50/60Hz coil, open
LC1D40AN7 Application
For Resistive load and Motor controlLC1D40AN7 Standards
CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|IEC 60335-1|GOST|UL|CSA|CCCSKU #2395188Part Number #LC1D40AN7UNSPSC39121529UPC03389119408448

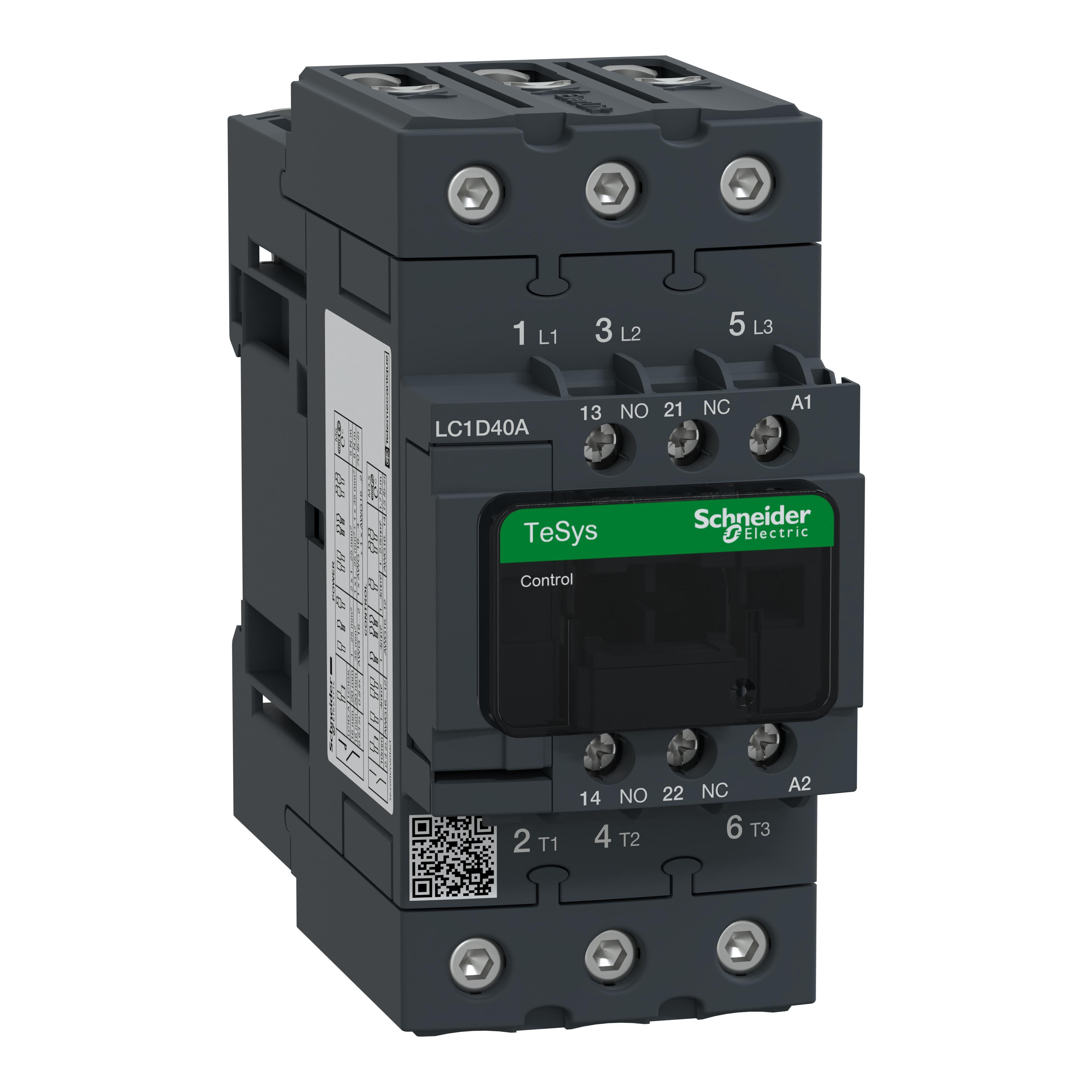

Image provided may only be a representation of final product and may include optional equipment
