Part Number # LC1D50A3BD
SKU # 2260322
Image provided may only be a representation of
final product and may include optional equipment
LC1D50A3BD

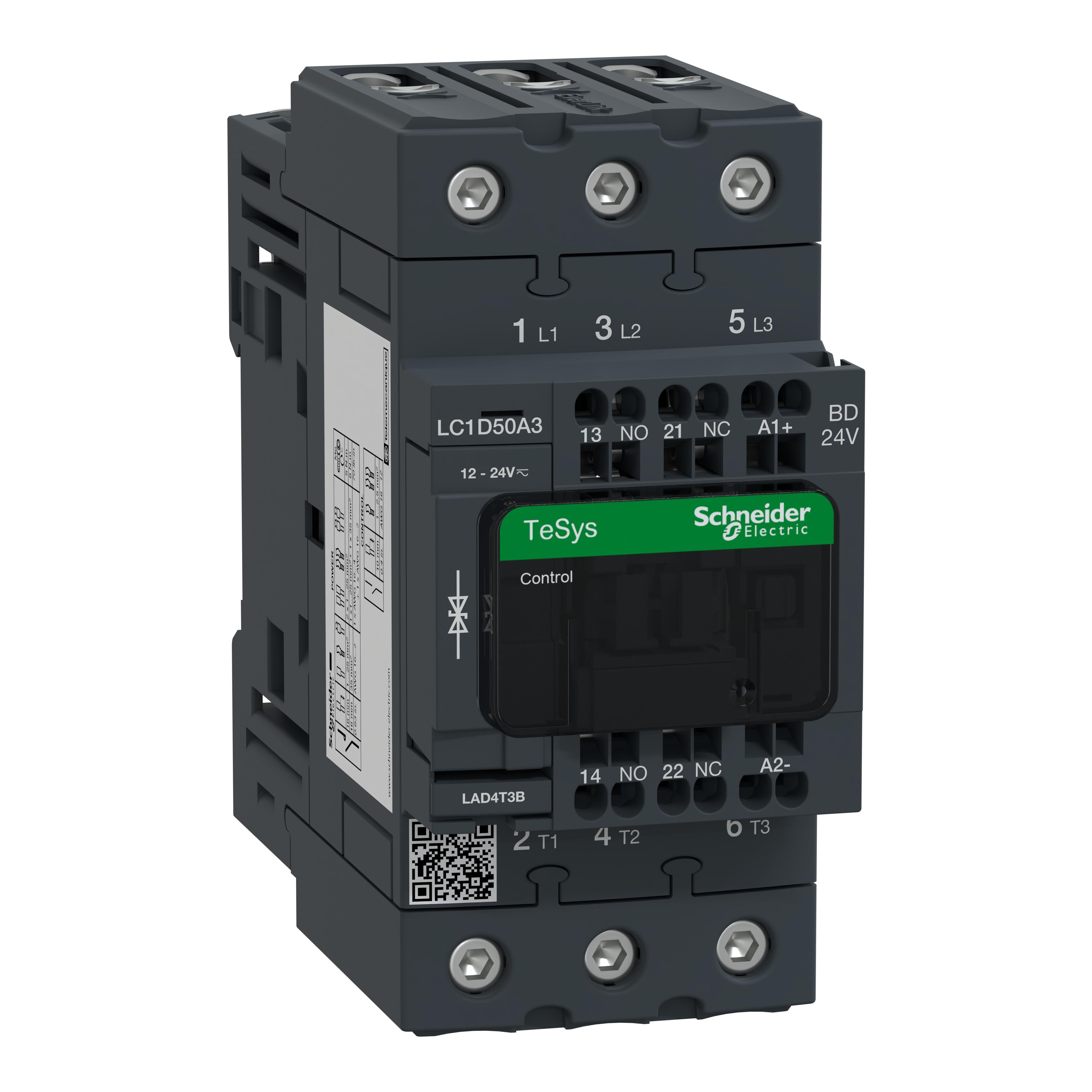

Schneider Electric LC1D50A3BD TeSys D Contactor With Front Cover
Part Number # LC1D50A3BD
SKU # 2260322
Schneider Electric LC1D50A3BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D50A3BD |
| SKU #: | 2260322 |
| Coil Power Rating: | 7.4 W |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 1NO-1NC/3NO |
| Contact Rating: | 10 A at 140 deg F Signalling Circuit, 80 A at 140 deg F Power Circuit |
| Dimensions: | 2.17 in W x 4.72 in D x 4.8 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 158 deg F |
| Series: | TeSys D |
| Terminal Type: | Spring Clamp |
| Wattage: | 3.7/9.6 W |
| Country of origin: | FR |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901940609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LC1D50A3BD TeSys D Contactor With Front Cover
Brand: Schneider Electric
Part Number: LC1D50A3BD
Schneider Electric,TeSys D 3P Everlink DC Contactor AC3 50A IEC,24 V DC,3 NO,3P,80 A at <= 60 ??C for power circuit-10 A at <= 60 ??C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,TeSys,TeSys D,plate-rail
Additional Description: SQD -LC1D50A3BD (N) TESYS 3P EVLK CTR 50A22KWAC3 24VDC SPRNG NON-CANCELABLE, NON-RETURNABLE 50A IEC AC3 50A IEC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 50A, 40HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style
LC1D50A3BD Application
For resistive load motor control applicationsLC1D50A3BD Item Features
- https://www.youtube.com/embed/COFeQr6wcKc
LC1D50A3BD Standards
BV Certified|CCC Certified|CSA C22.2 14|DNV Certified|EN 60947-4-1/60947-5-1|GL Certified|GOST Certified|Green Premium Listed|IEC 60947-4-1/60947-5-1|LROS Certified|REACH Compliant|RINA Certified|RoHS Compliant|UL File No. 508|PROP65: This product can expose you to chemicals including, Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.SKU #2260322Part Number #LC1D50A3BDUNSPSC39121529UPC00785901940609
