Part Number # LC1D50A6KUE
SKU # 2459231
LC1D50A6KUE
Schneider Electric LC1D50A6KUE
Part Number # LC1D50A6KUE
SKU # 2459231
$489.63 / Each
Square D (Schneider Electric) LC1D50A6KUE Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | LC1D50A6KUE |
| SKU #: | 2459231 |
| Coil Power Rating: | 3; 7.5; 15; 40 |
| Coil Voltage: | 100 to 250 |
| Contact Configuration: | 3NO |
| Dimensions: | 122 mm H x 55 mm W x 120 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -4 to 60 , 60 to 70 with derating deg C |
| Series: | LC1 |
| Terminal Type: | Lugs-Ring |
| Type: | Contactor |
| Wattage: | 9.6; 3.7 |
| Country of origin: | FR |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606489493400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$489.63 / Each
Quantity:
- Schneider Electric LC1D50A6KUE, Contactor, LC1, 100 to 250 Coil, 10; 80 Maximum Load Current, 3; 7.5; 15; 40 Coil, 3 Pole, 25 to 400 Frequency, 9.6; 3.7 Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Lugs-Ring Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 55 mm W x 120 mm D Dimensions
LC1D50A6KUE Application
Motor control Resistive loadLC1D50A6KUE Item Features
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed
- TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
LC1D50A6KUE Standards
WEEE Compliant|EAC|KC|DNV-GL|LROS (Lloyds register of shipping)|REACH Compliant|EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1|CCC Certified|CSA Certified|UL ListedSKU #2459231Part Number #LC1D50A6KUEUNSPSC39121529UPC03606489493400

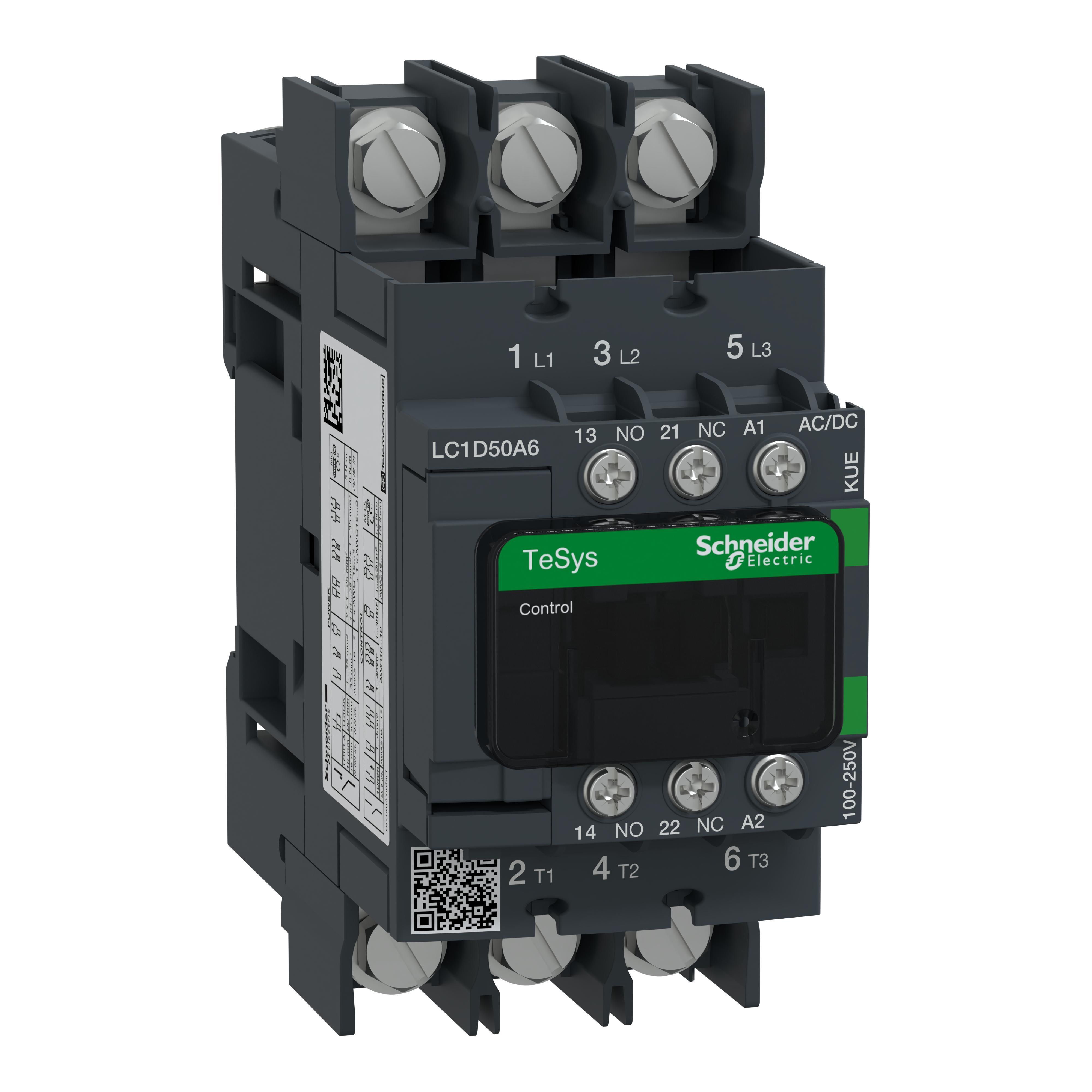

Image provided may only be a representation of final product and may include optional equipment
