LC1D50AKUE

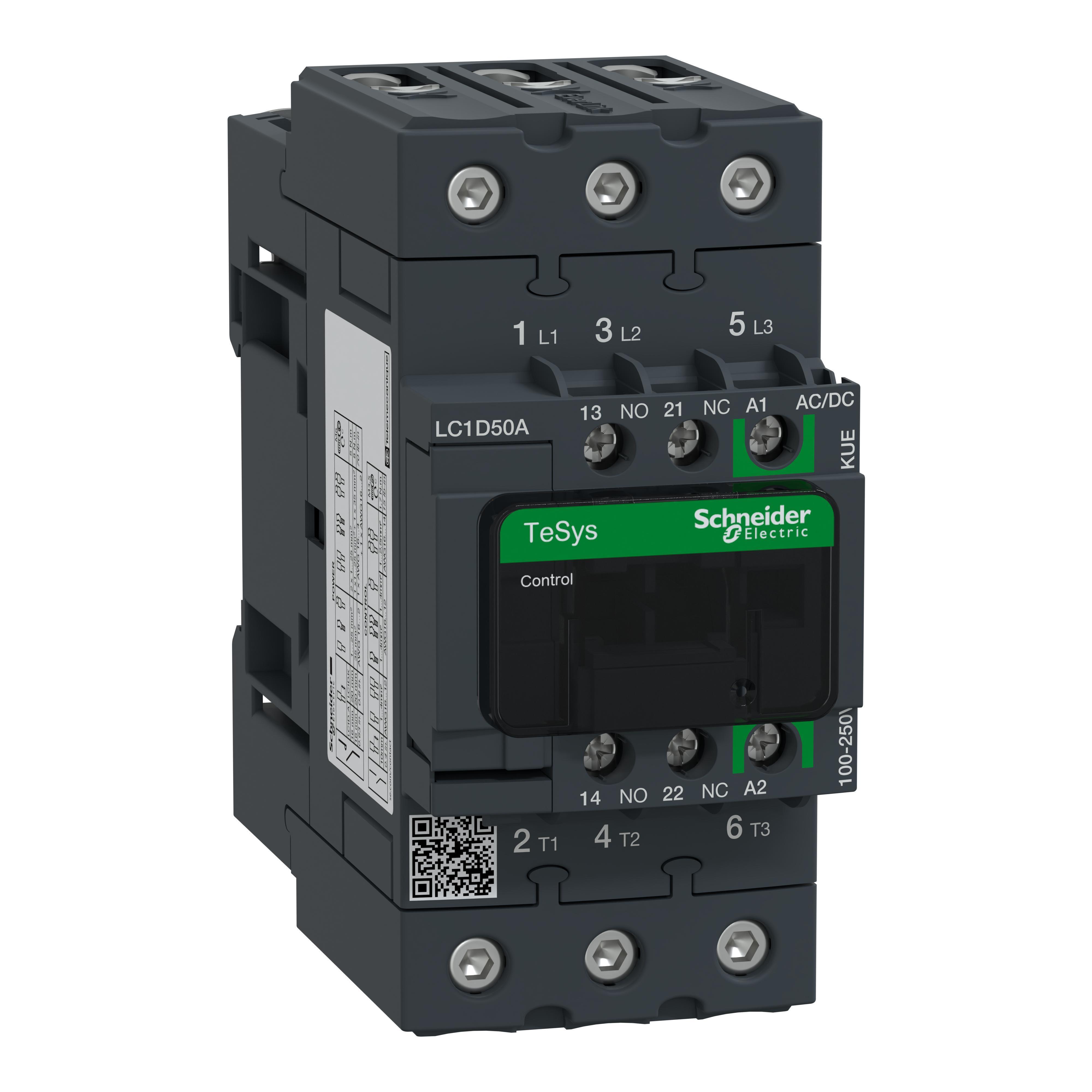

Schneider Electric LC1D50AKUE Tesys D Contactor
Part Number # LC1D50AKUE
SKU # 2374282
$425.77 / Each
Schneider Electric LC1D50AKUE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D50AKUE |
| SKU #: | 2374282 |
| Coil Power Rating: | 40 hp at 575/600 VAC 3 ph |
| Coil Voltage: | 100 to 250 VAC/100 to 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10 A at 140 deg F Signaling Circuit, 80 A at 140 deg F Power Circuit |
| Dimensions: | 2.17 in W x 4.72 in D x 4.8 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 140 deg F |
| Terminal Type: | Screw Clamp |
| Type: | 3 Phase |
| Wattage: | 14 W |
| Color: | Gray/Green |
| Country of origin: | FR |
| Mounting type: | Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901001706 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$425.77 / Each
Quantity:
- Schneider Electric Square D TeSys D Contactor, 3 Phase, 100 to 250 VAC/100 to 250 VDC Coil, 50 A Maximum Load Current, 40 hp at 575/600 VAC 3 ph Coil, 3 Pole, 25 to 400 Hz Frequency, 14 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10 A at 140 deg F Signaling Circuit, 80 A at 140 deg F Power Circuit Contact, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles/hr Operating Cycles, -40 to 140 deg F Operating, Rail/Surface Mounting, Gray/Green, 2.17 in W x 4.72 in D x 4.8 in H Dimensions
LC1D50AKUE Application
Motor Control and Resistive LoadLC1D50AKUE Item Features
- https://media.distributordatasolutions.com/schneider2/2020q4/documents/c6394e7c963755f3bc7eccd742579d1fcc60a3c4.mp4
LC1D50AKUE Standards
CCC Certified|CSA Certified|DNV-GL Certified|EAC Certified|ECCN: EAR99|KC Certified|LROS Certified|Green Premium|REACH Compliant|UL Listed|WEEE ListedSKU #2374282Part Number #LC1D50AKUEUNSPSC39121529UPC00785901001706
