Part Number # LC1D50AN7
SKU # 2395204
Image Disclaimers Message
Brand: Schneider Electric
LC1D50AN7

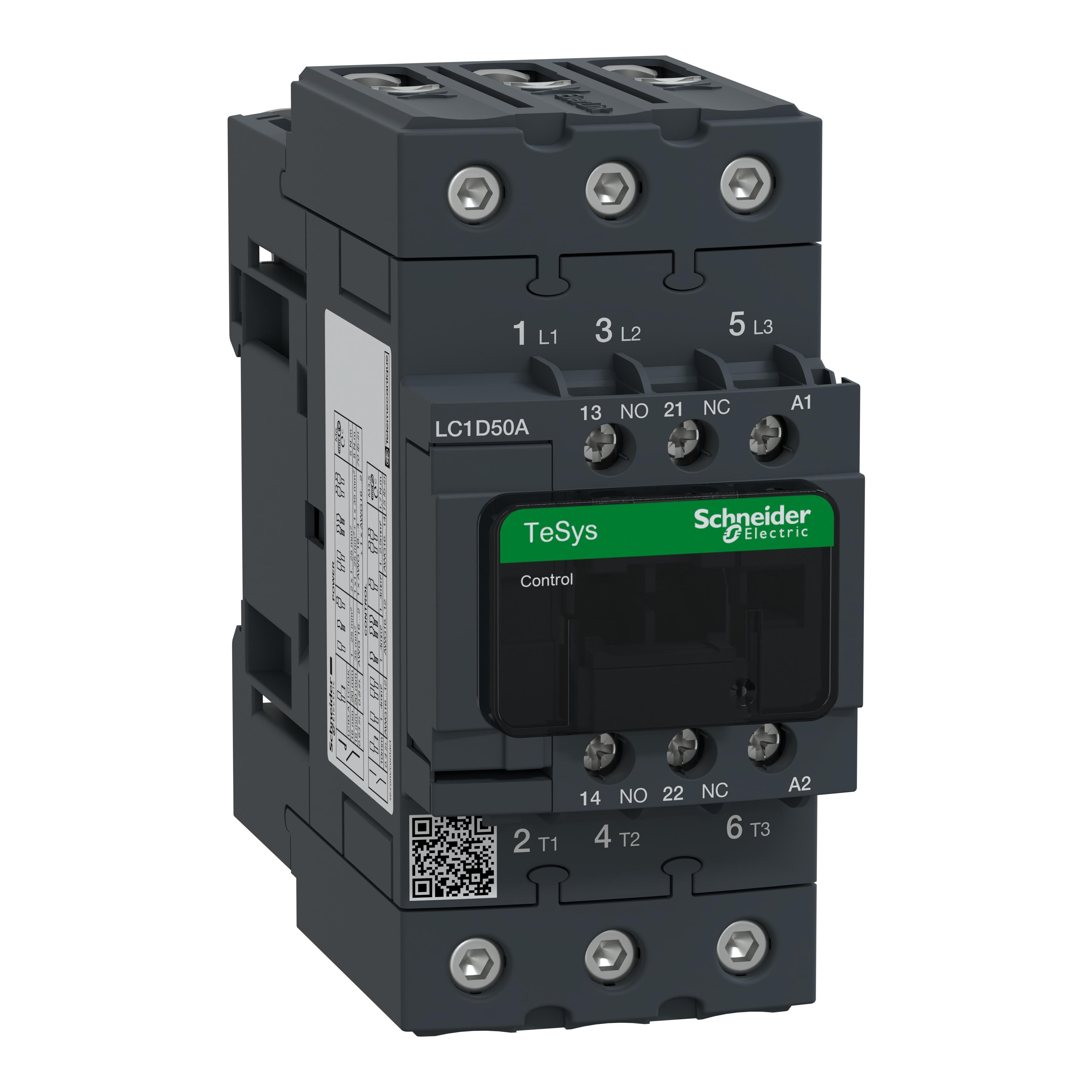

Schneider Electric LC1D50AN7 LC1D Contactor, 415 VAC V Coil, 50 A, 3NO Contact, 3 Poles
Part Number # LC1D50AN7
SKU # 2395204
$306.69 / Each
Schneider Electric LC1D50AN7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D50AN7 |
| SKU #: | 2395204 |
| Coil Power Rating: | 40 hp at 480 VAC |
| Coil Voltage: | 415 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 50 A at 480 VAC |
| Dimensions: | 4.80 in H x 2.17 in W x 4.72 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | LC1D |
| Terminal Type: | Screw Clamp |
| Wattage: | 3.7, 9.6 W |
| Connection type: | Screw |
| Country of origin: | ID |
| Mounting type: | DIN Rail/Plate |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389119408745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.69 / Each
Quantity:
- Schneider Electric, LC1D50AN7, Contactor, Series: LC1D, 415 VAC Coil, 50 A Maximum Load Current, 40 hp at 480 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3.7, 9.6 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 50 A at 480 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 140 deg F Operating, DIN Rail/Plate Mounting, 4.80 in H x 2.17 in W x 4.72 in D Dimensions
LC1D50AN7 Application
For Motor control, resistive loadLC1D50AN7 Standards
RoHS/REACh|CCC/EAC/Marine Standards|CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|IEC 60335-1|IEC|Mirror CertifiedSKU #2395204Part Number #LC1D50AN7UNSPSC39121529UPC03389119408745
