Part Number # LC1D50AQ7
SKU # 2395205
Image Disclaimers Message

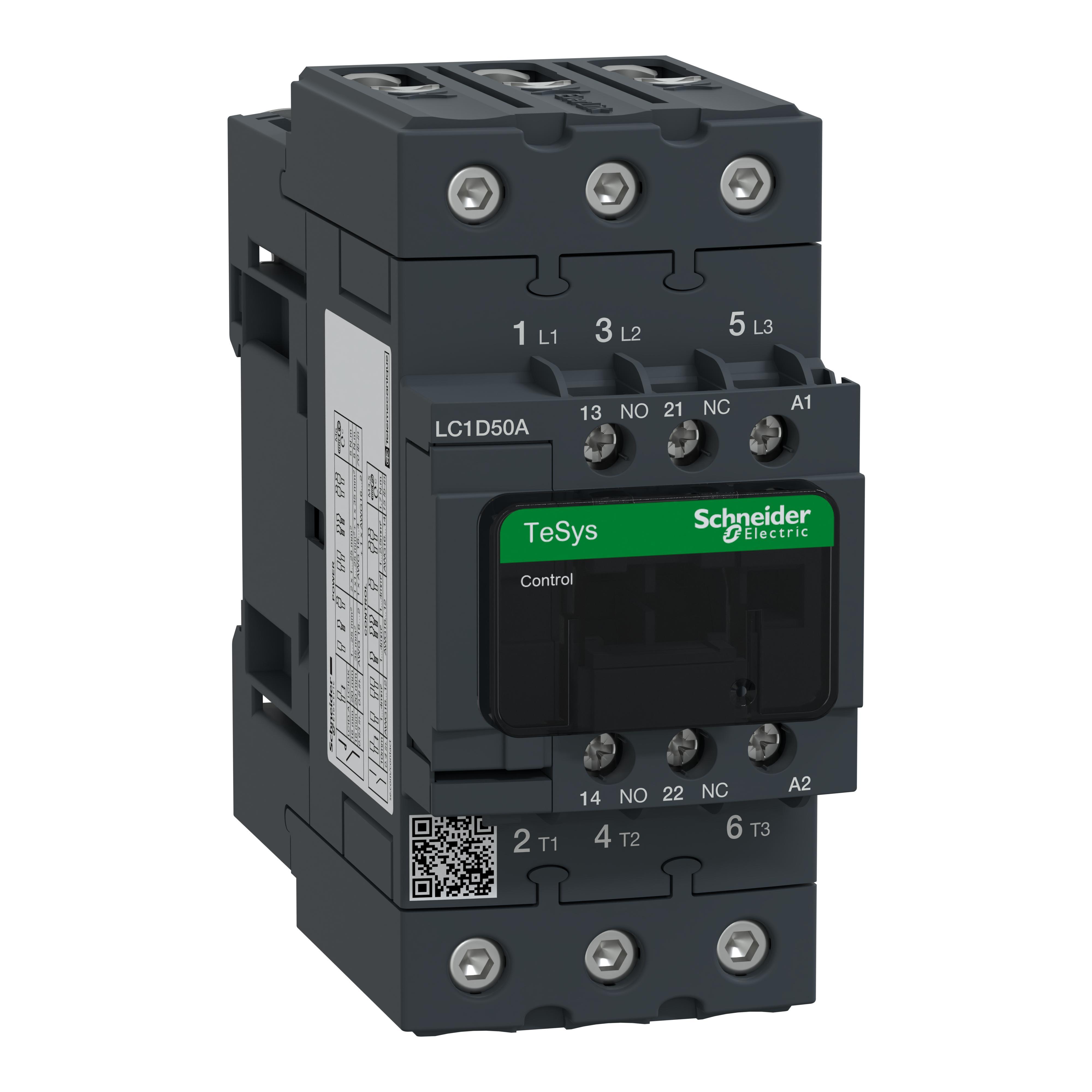

LC1D50AQ7
Schneider Electric, LC1D50AQ7, High Power Contactors, TeSys Deca, Series: LC1D, 690 VAC, 300 VDC Coil, 50 A Maximum Load Current, 140/160 W Inrush, 13/15 W Hold-In Coil, 3 Pole, 25, 400 Hz Frequency, 9.6, 3.7 W Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1NC + 1NO Auxiliary Contacts, Screw Clamp Connection, 3600 Cycles/hr Operating Cycles, -40 to 60 deg C Operating, Plate/Rail Mounting, 122 mm H x 55 mm W x 120 mm D Dimensions
Part Number # LC1D50AQ7
SKU # 2395205
$306.69 / Each
Schneider Electric LC1D50AQ7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D50AQ7 |
| SKU #: | 2395205 |
| Coil Power Rating: | 140/160 W Inrush, 13/15 W Hold-In |
| Coil Voltage: | 690 V AC, 300 V DC, 690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 122 mm H x 55 mm W x 120 mm D |
| Frequency Rating: | 25, 400 Hz |
| Number of Auxiliary Contacts: | 1NC + 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 60 deg C |
| Series: | LC1D |
| Terminal Type: | Screw Clamp |
| Type: | TeSys Deca |
| Wattage: | 9.6, 3.7 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR, ID |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389119408721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$306.69 / Each
Quantity:
- Schneider Electric, LC1D50AQ7, High Power Contactors, TeSys Deca, Series: LC1D, 690 V AC, 300 V DC Coil, 50 A Maximum Load Current, 140/160 W Inrush, 13/15 W Hold-In Coil, 3 Pole, 25, 400 Hz Frequency, 9.6, 3.7 W Wattage, Mechanically Linked/Mirror Contact, 3NO Contact Configuration, 1NC + 1NO Auxiliary Contacts, Screw Clamp Connection, 3600 Cycles/hr Operating Cycles, -40 to 60 deg C Operating, Plate/Rail Mounting, 122 mm H x 55 mm W x 120 mm D Dimensions
LC1D50AQ7 Application
For Resistive load and Motor controlLC1D50AQ7 Standards
CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|IEC 60335-1|UL|DNV|CCC|CSA|BV|LROS (Lloyds register of shipping)|GOST|GL|RINASKU #2395205Part Number #LC1D50AQ7UNSPSC39121529UPC03389119408721
