Part Number # LC1D65AK7
SKU # 2374079
Brand: Schneider Electric
LC1D65AK7
Schneider Electric LC1D65AK7 LC1D Contactor, 100 VAC V Coil, 65 A, 3NO Contact, 3 Poles
Part Number # LC1D65AK7
SKU # 2374079
$389.85 / Each
Schneider Electric LC1D65AK7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D65AK7 |
| SKU #: | 2374079 |
| Coil Power Rating: | 40 hp at 480 VAC |
| Coil Voltage: | 100 V AC, 100 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 65 A at 480 V AC, 65 A at 480 VAC |
| Dimensions: | 4.80 in H x 2.17 in W x 4.72 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | LC1D |
| Terminal Type: | Screw Clamp |
| Wattage: | 9.6, 6.3 W |
| Connection type: | Screw |
| Country of origin: | ID |
| Mounting type: | DIN Rail/Plate |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389119401517 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$389.85 / Each
Quantity:
Schneider Electric LC1D65AK7 LC1D Contactor, 100 VAC V Coil, 65 A, 3NO Contact, 3 Poles
Brand: Schneider Electric
Part Number: LC1D65AK7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 100 V AC 50/60 Hz coil
Additional Description: SQD -LC1D65AK7 (N) TeSys 3P EVLK CTR 65A 30KW AC3 100VAC NON-CANCELABLE, NON-RETURNABLE 65A IEC
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100VAC 50/60Hz coil, open
LC1D65AK7 Application
For Motor control, resistive loadLC1D65AK7 Standards
RoHS/REACh|CCC/EAC/Marine Standards|CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|IEC 60335-1|IEC|Mirror CertifiedSKU #2374079Part Number #LC1D65AK7UNSPSC39121529UPC03389119401517

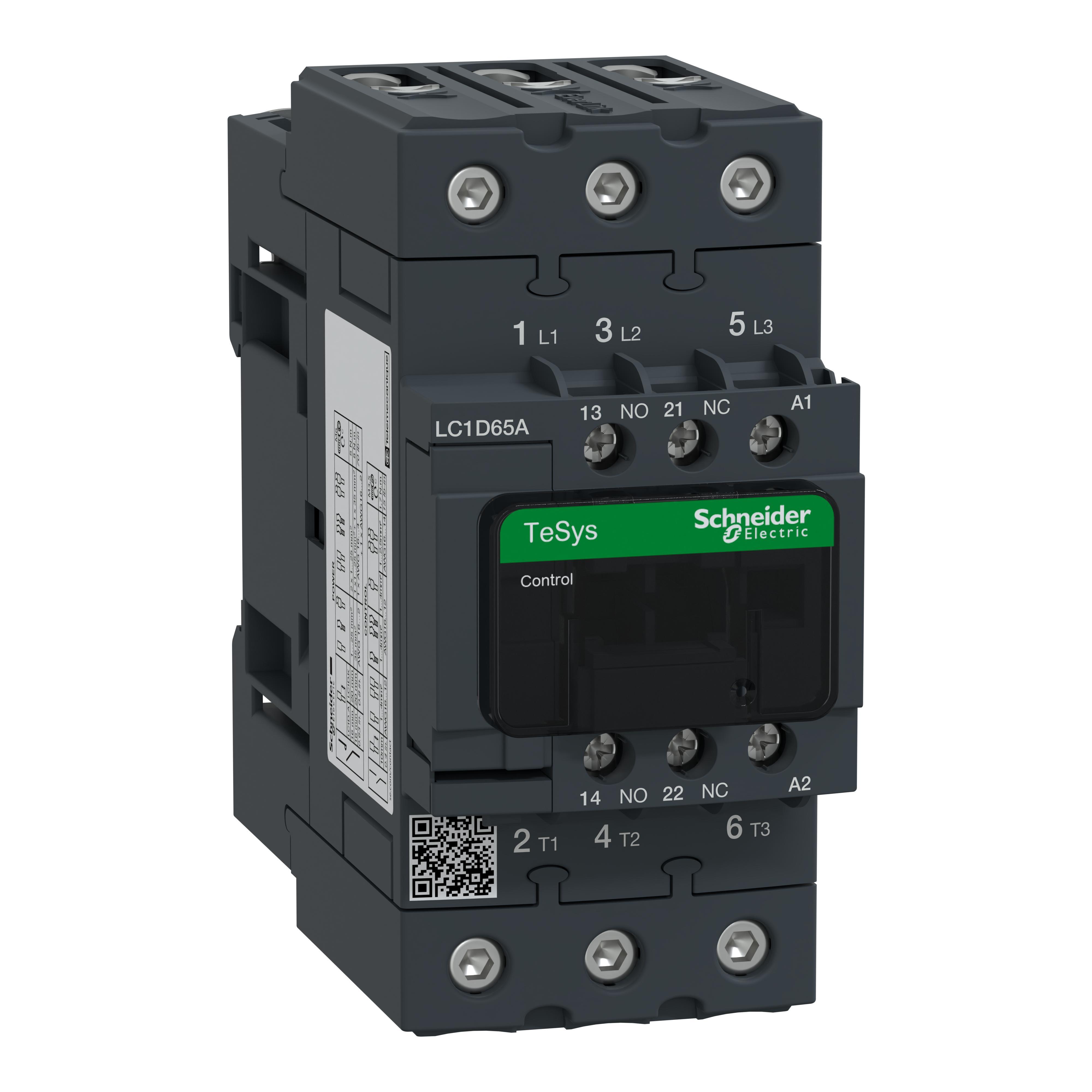

Image provided may only be a representation of final product and may include optional equipment
