Brand: Schneider Electric

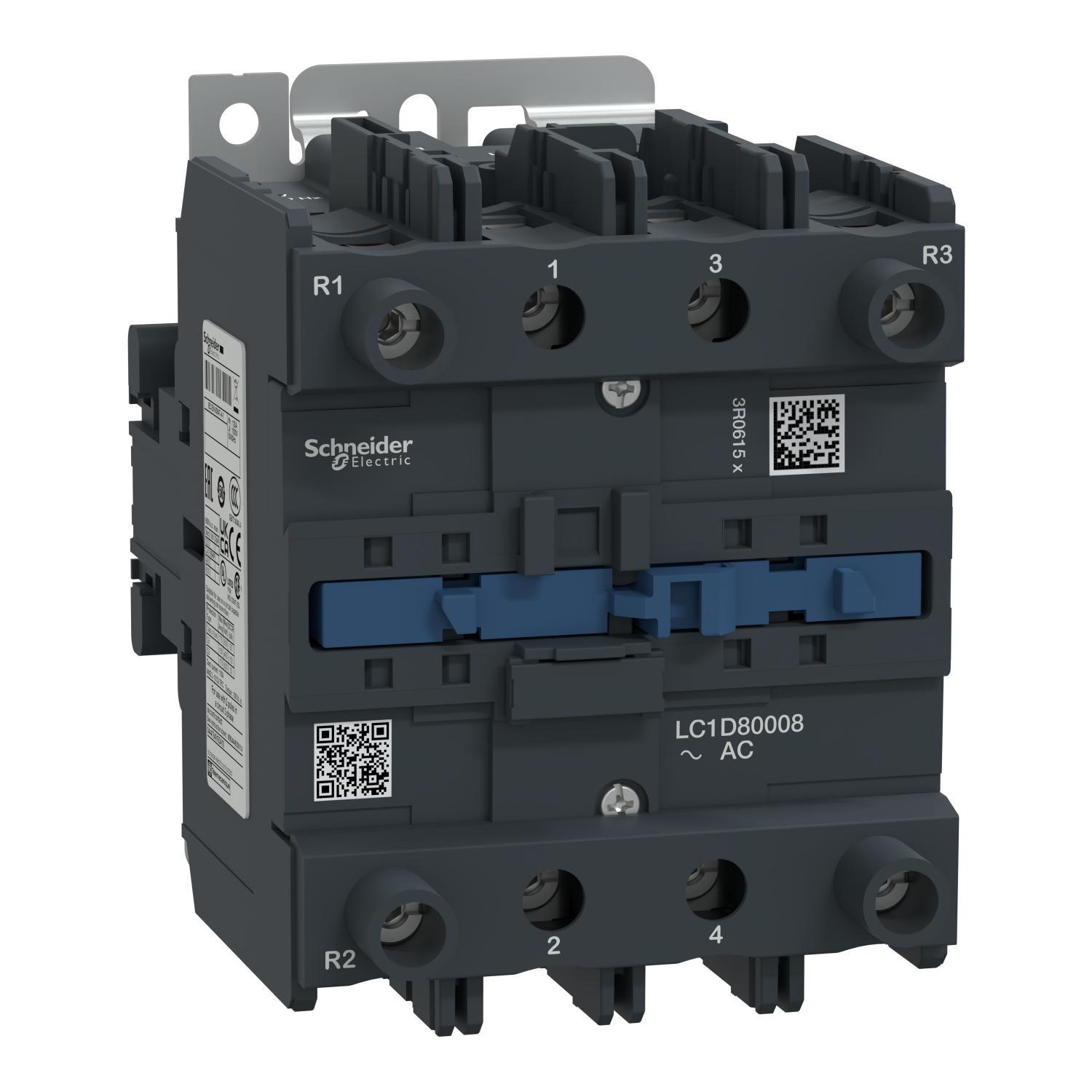

Schneider Electric LC1D80008M7 Iec Contactor
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric LC1D80008M7 Iec Contactor
Brand: Schneider Electric
Schneider Electric LC1D80008M7 Iec Contactor
Part #:LC1D80008M7
SKU #: 2119836
$518.73/EA
Key Features
Part #:LC1D80008M7
SKU #: 2119836
Brand: Schneider Electric
Coil Voltage: 220, 220 VAC
Contact Configuration: 2NO-2NC
Dimensions: 127 mm H x 96 mm W x 140 mm D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
$518.73/EA
- Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D green increase TeSys D range with a new electronic coil with upto 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption upto 50%
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger safe terminals with both north American and international terminal markings
- Designed for perfect integration in control systems
- Can be used to create motor starters for any type of application
- Without safety cover
- https://www.youtube.com/embed/e8UrRZljFg0
Specifications
Brand: Schneider Electric
Coil Voltage: 220, 220 VAC
Contact Configuration: 2NO-2NC
Dimensions: 127 mm H x 96 mm W x 140 mm D
Enclosure Type: Open
Frequency Rating: 50/60, 50/60 Hz
Number of Poles: 4
Operating Cycles: 3600, 3600 Cycles/hr
Operating Temperature: -5 to 60, -5 to 60 deg C
Series: TeSys™ D LC1D, TeSys� D LC1D
Terminal Type: Screw Clamp, Screw/Clamp
Type: Non-Reversing
Country of origin: CZ
Mounting type: Plate/Rail
Manufacturer Name: Schneider Electric
UNSPSC: 39121529
UPC: 00785901697664
Item FeaturesIndustry, Infrastructure, Building, Resistive Load and Motor Control Applications
Item Features
Item FeaturesRoHS Compliant|WEEE Compliant|REACH Compliant|Green Premium|CSA C22.2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|GoST-R Certified|RINA Certified|BV Certified|CCC Certified|DNV Certified|GL Certified|Lloyds Register Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
