Part Number # LC1D80ABNE
SKU # 2439319
Image Disclaimers Message
LC1D80ABNE

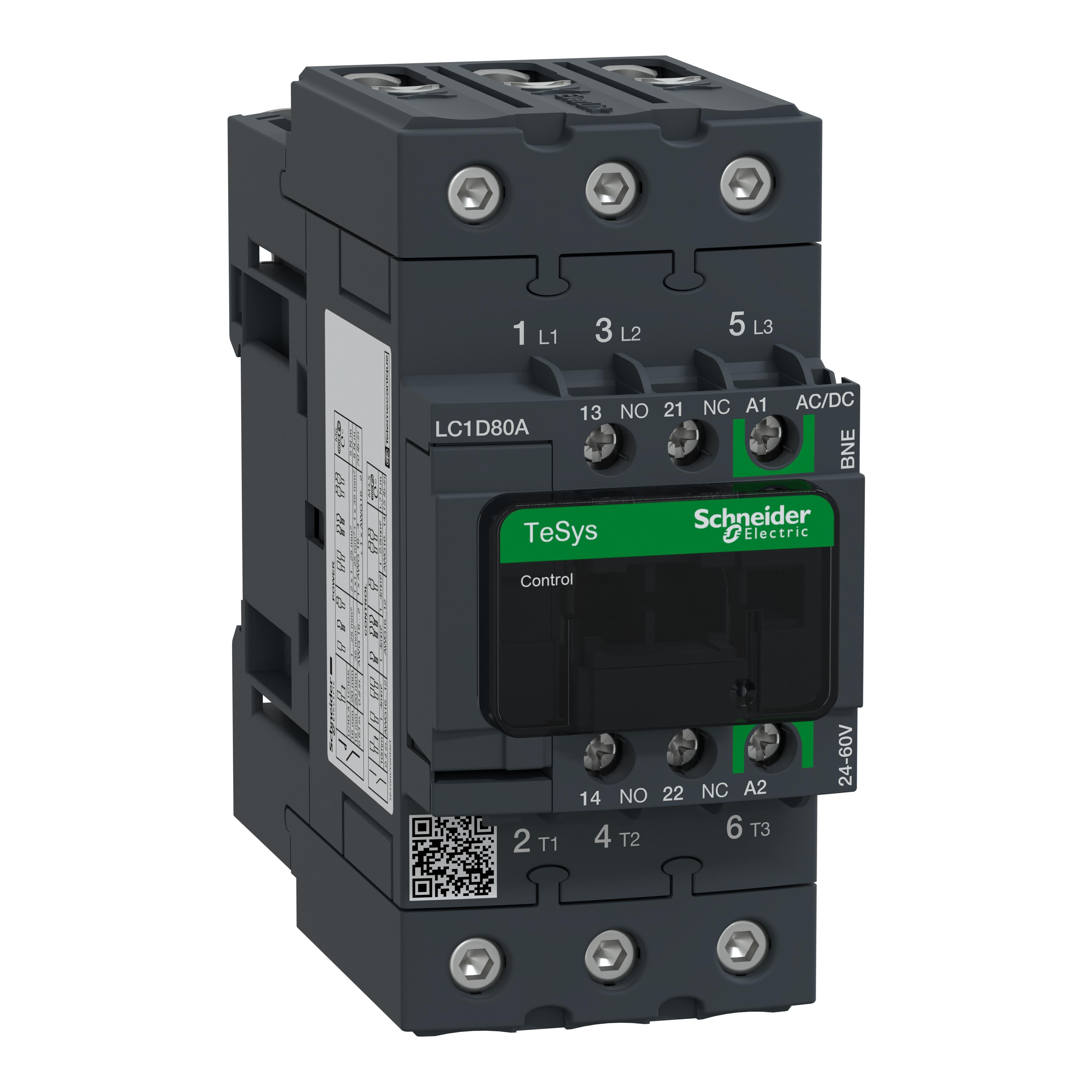

Schneider Electric LC1D80ABNE
Part Number # LC1D80ABNE
SKU # 2439319
$732.63 / Each
Schneider Electric LC1D80ABNE Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D80ABNE |
| SKU #: | 2439319 |
| Coil Power Rating: | 5; 10; 20; 40; 50 |
| Coil Voltage: | 24 to 60 |
| Contact Configuration: | 3NO |
| Dimensions: | 122 mm H x 55 mm W x 120 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 60, 60 to 70 with derating deg C |
| Series: | LC1F |
| Terminal Type: | Screw Clamp |
| Type: | Contactor |
| Wattage: | 9.6; 6.5 |
| Color: | Gray/Green |
| Country of origin: | FR |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606481312327 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$732.63 / Each
Quantity:
- Schneider Electric LC1D80ABNE, Contactor, LC1F, 24 to 60 Coil, 10; 80 Maximum Load Current, 5; 10; 20; 40; 50 Coil, 3 Pole, 25 to 400 Frequency, 9.6; 6.5 Wattage, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 60, 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 55 mm W x 120 mm D Dimensions
LC1D80ABNE Application
Resistive load, Motor controlLC1D80ABNE Item Features
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed
- TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
LC1D80ABNE Standards
WEEE Compliant|EAC|KC|DNV-GL|LROS (Lloyds register of shipping)|REACH Compliant|EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1|CCC Certified|CSA Certified|UL ListedSKU #2439319Part Number #LC1D80ABNEUNSPSC39121529UPC03606481312327
