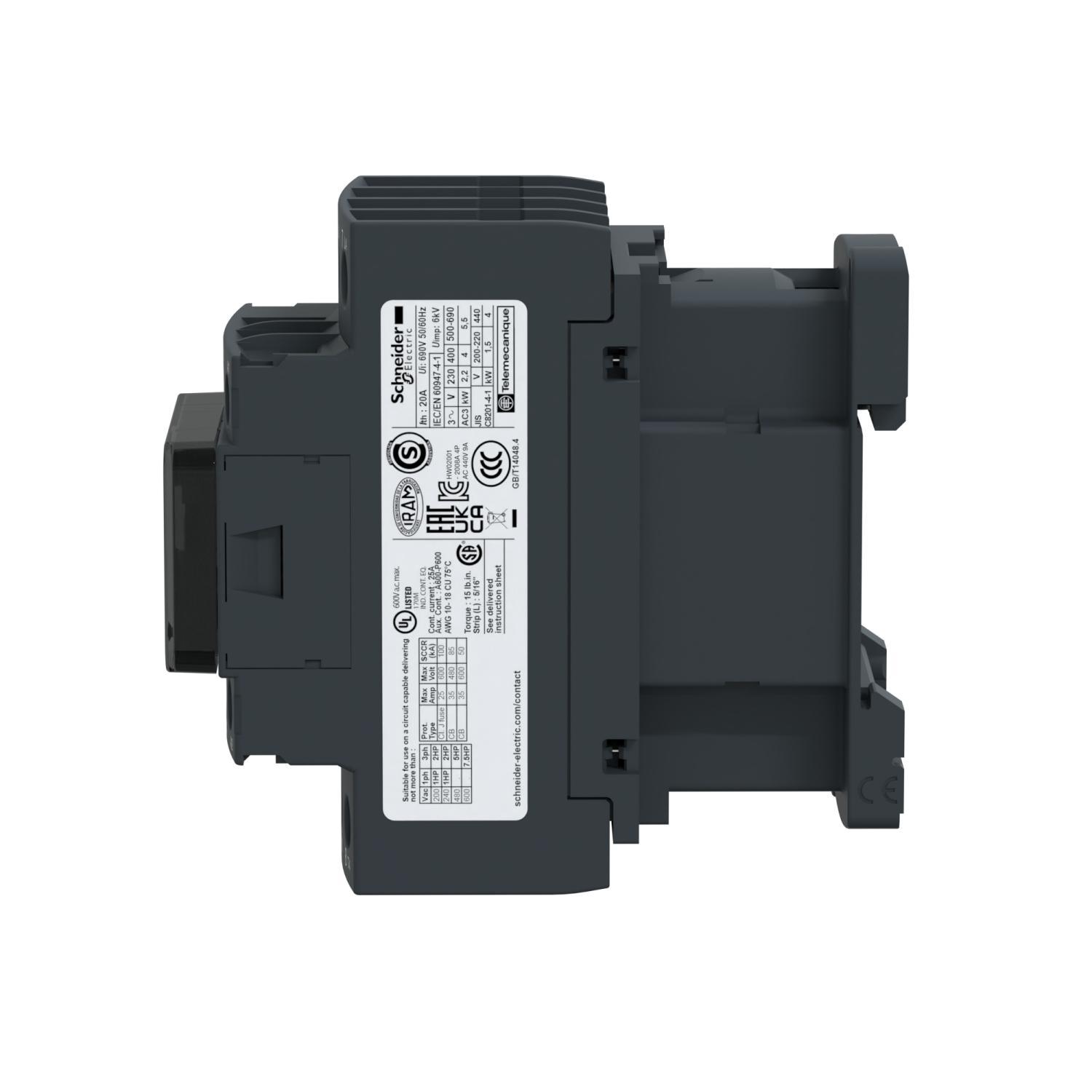

Schneider Electric LC1DT20BL Iec Contactor
Image Disclaimers Message
Schneider Electric LC1DT20BL Iec Contactor
Schneider Electric LC1DT20BL Iec Contactor
Part #:LC1DT20BL
SKU #: 2117230
Key Features
Part #:LC1DT20BL
SKU #: 2117230
Brand: Schneider Electric
Coil Voltage: 24, 24 VDC
Contact Configuration: 4NO
Dimensions: 85 mm H x 45 mm W x 99 mm D
Enclosure Type: Open
Frequency Rating: 25 to 400, 25 to 400 Hz
- Designed to control and provide overload protection to motors rated upto 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D green increase TeSys D range with a new electronic coil with upto 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption upto 50%
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger safe terminals with both north American and international terminal markings
- Designed for perfect integration in control systems
- Can be used to create motor starters for any type of application
Schneider Electric LC1DT20BL Iec Contactor
Schneider Electric Square D IEC Contactor, Non-Reversing, Series: TeSys D LC1D, 24 VDC Coil, 20 A Maximum Load Current, 4 Pole, 25 to 400 Hz Frequency, 4NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 85 mm H x 45 mm W x 99 mm D Dimensions
Additional Description: SQD -LC1DT20BL TeSys 4P CONTACTOR 20A AC-1 24VDC LC OPTIONS
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 20A resistive, 4 pole, 4 NO, low consumption 24VDC coil, open style
