Part Number # LC1DT25F7
SKU # 2145585
Image Disclaimers Message
LC1DT25F7

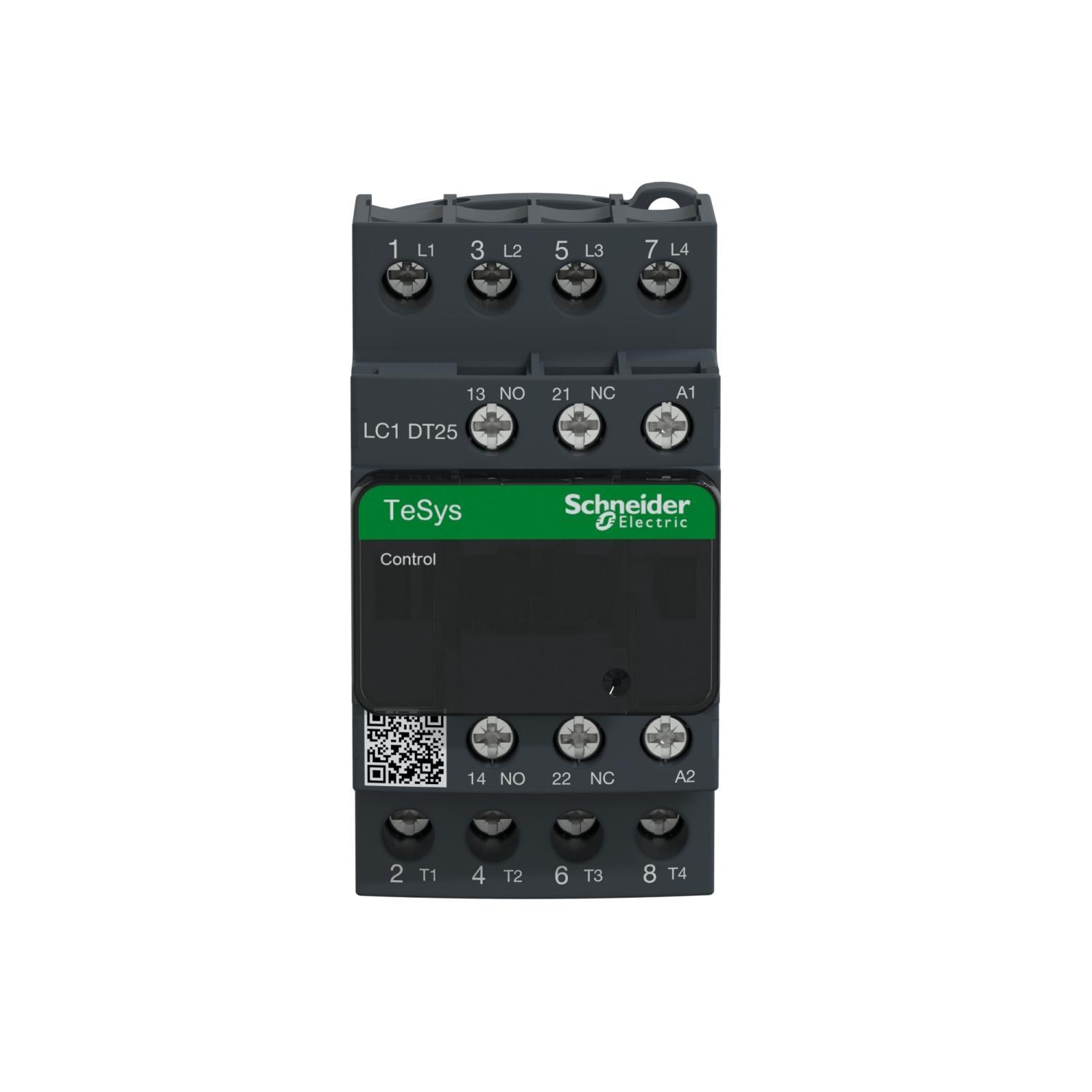

Schneider Electric LC1DT25F7 Tesys D Iec Contactor
Part Number # LC1DT25F7
SKU # 2145585
$158.23 / Each
Schneider Electric LC1DT25F7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1DT25F7 |
| SKU #: | 2145585 |
| Coil Power Rating: | 7.5/7.7 VA, 70 VA Inrush, 7.5/7 VA Hold-In |
| Coil Voltage: | 110, 110/690 V AC, 300 V DC, 110/690 VAC, 300 VDC |
| Contact Configuration: | 4NO |
| Contact Rating: | 10/60 A at 600 V AC, 25/60 A at 600 V AC, 10/60 A at 600 VAC, 25/60 A at 600 VAC, 25 A at 600 VAC |
| Dimensions: | 45 mm W x 92 mm D x 85 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 4 |
| Operating Cycles: | 15000000, 3600 Cycles/hr |
| Operating Temperature: | -5 to 60, -5 to 60/-40 to 70 deg C |
| Series: | LC1D |
| Size: | 45/85/92 mm |
| Terminal Type: | Screw Clamp |
| Type: | D-Line, LC1D D-Line |
| Wattage: | 1.56 W, 5.5 |
| Connection type: | Screw Clamp |
| Country of origin: | ID |
| Mounting type: | Rail/Surface, Surface |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901899617 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$158.23 / Each
Quantity:
- Schneider Electric Square D TeSys D IEC Contactor, D-Line, Series: LC1D, 110/690 V AC, 300 V DC Coil, 25 A Maximum Load Current, 7.5/7.7 VA Coil, 4 Pole, 50/60 Hz Frequency, 1.56 W Wattage, Non-Reversing Contact, 4NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 25/60 A at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, 45/85/92 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 92 mm D x 85 mm H Dimensions
LC1DT25F7 Application
Resistive Load ApplicationsLC1DT25F7 Item Features
- Without built-in suppressor module coil technology
- https://www.youtube.com/embed/ZspiS_-OK5U
LC1DT25F7 Standards
CCC Certified|CE Certified|CSA C22.2 File No. 14 File No. LR43364 Class 3211 04|CSA C22.2 No 14|CSA Certified|ECCN EAR99|EN 60947-4-1/60947-5-1|GOST|IEC 60529|IEC 60647-4/60529|IEC 60695-2-1|IEC 60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RINA|RoHS Compliant|UL 508|UL 94 Flammability|UL File No. E164862 CCN NLDX/508|UL ListedSKU #2145585Part Number #LC1DT25F7UNSPSC39121529UPC00785901899617
