Part Number # LC1DT40GD
SKU # 2448025

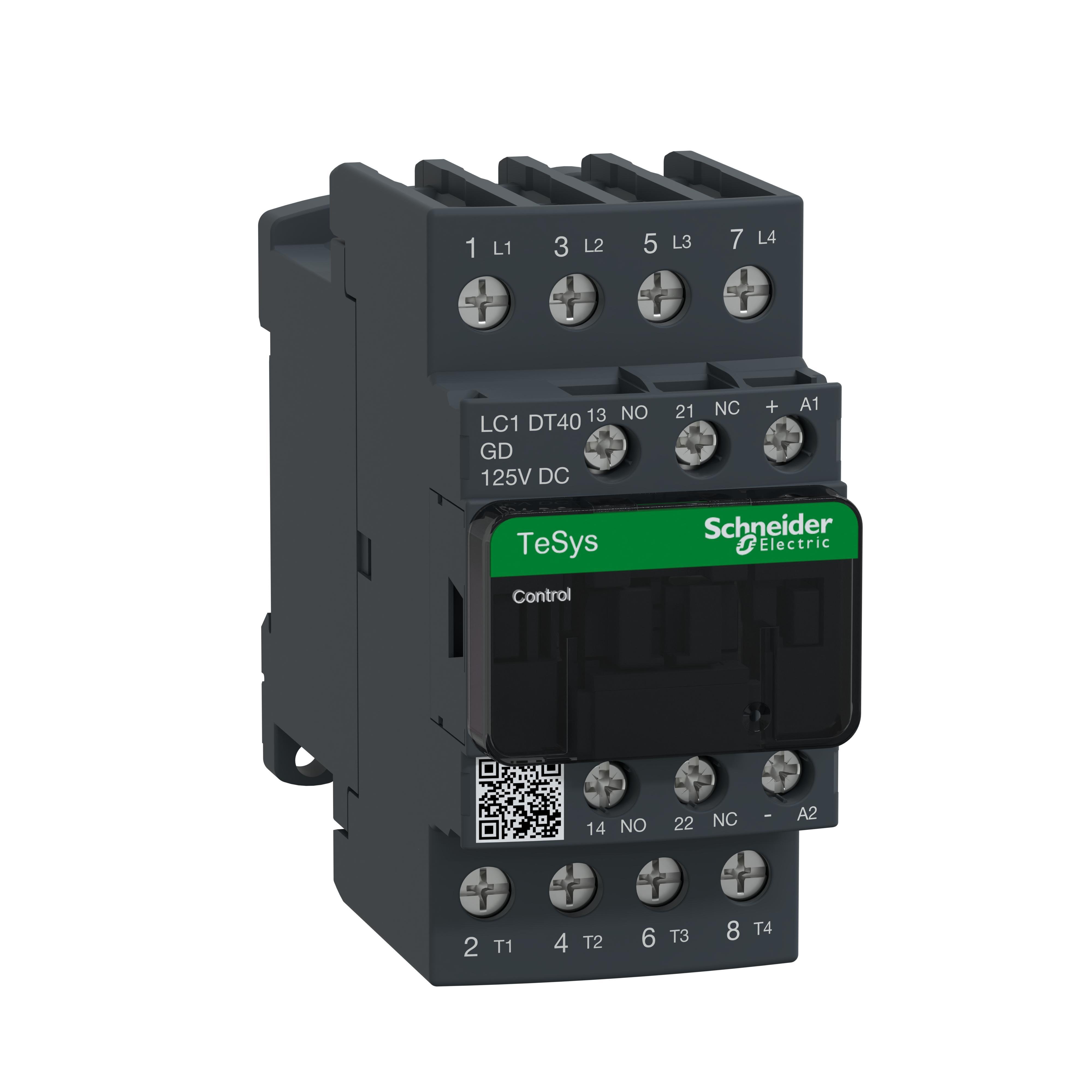

Image provided may only be a representation of
final product and may include optional equipment
LC1DT40GD
Schneider Electric LC1DT40GD
Part Number # LC1DT40GD
SKU # 2448025
$243.59 / Each
Schneider Electric LC1DT40GD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1DT40GD |
| SKU #: | 2448025 |
| Coil Power Rating: | 5.4 W |
| Coil Voltage: | 125 V DC, 125 VDC |
| Contact Configuration: | 4NO |
| Contact Rating: | 10/40 A |
| Dimensions: | 45 mm W x 107 mm D x 91 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 4 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -5 to 60 deg C |
| Series: | LC1D |
| Terminal Type: | Screw Clamp |
| Wattage: | 3.2 W |
| Connection type: | Screw |
| Country of origin: | FR |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389110330946 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$243.59 / Each
Quantity:
Schneider Electric LC1DT40GD
Brand: Schneider Electric
Part Number: LC1DT40GD
Schneider Electric,CONTACTOR 600VAC 40AMP IEC + OPTIONS,125 V DC,4 NO,40 A at <= 60 °C for power circuit-10 A at <= 60 °C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,TeSys,TeSys D,plate-rail
Additional Description: SQD -LC1DT40GD (N) TeSys CONTACTOR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 125VDC coil, open style
LC1DT40GD Application
For resistive loadLC1DT40GD Item Features
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Control circuit flexibility
- https://www.youtube.com/embed/ZspiS_-OK5U
LC1DT40GD Standards
ECCN: EAR99|Green Premium|REACH Compliant|RoHS Compliant|IEC 60695-2-1|GL|BV|LROS|CCC|DNV|IEC 60947-4-1|IEC 60947-5-1|CSA C22.2 No 14|EN 60947-5-1|EN 60947-4-1|UL 94|RINA|GOST|UL 508|IEC 60529|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.govSKU #2448025Part Number #LC1DT40GDUNSPSC39121529UPC03389110330946
