Part Number # LC1F1250
SKU # 2398366
Image Disclaimers Message
LC1F1250

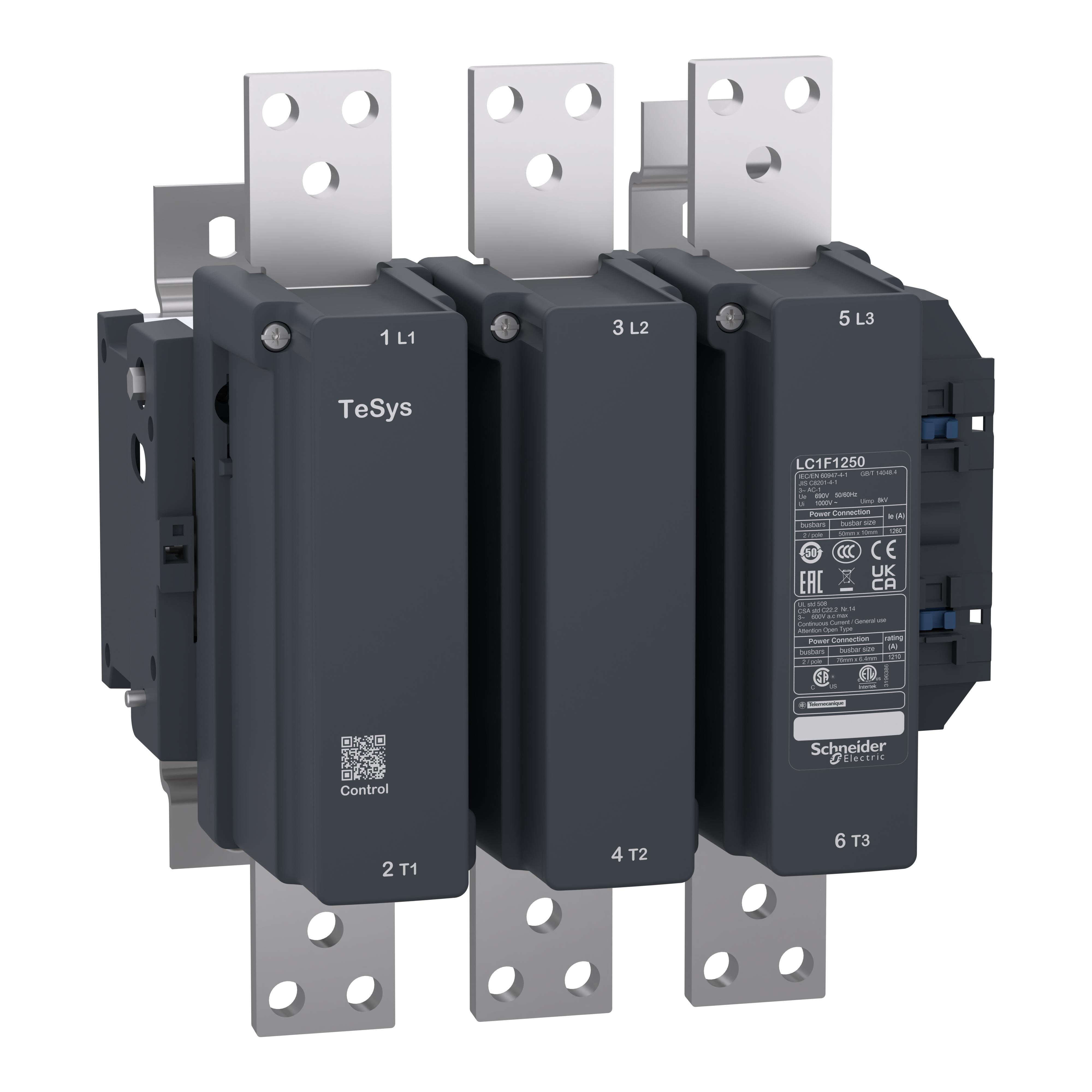

Schneider Electric LC1F1250, Contactor, LC1F Series, 110 to 600 VAC,28 to 250 VDC Coil, 1260 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 120 W Wattage, 3NO Contact Configuration, 1260 A Contact, Power Factor: 1420 to 1920 , Screw clamp Connection, 13.31 in H x 12.17 in W x 104 in D Size, Screw Clamp Terminal, 1200 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.31 in H x 12.17 in W x 10.04 in D Dimensions
Part Number # LC1F1250
SKU # 2398366
$8057.07 / Each
Schneider Electric LC1F1250 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1F1250 |
| SKU #: | 2398366 |
| Coil Voltage: | 110 to 600 V AC,28 to 250 V DC, 110 to 600 VAC,28 to 250 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 1260 A |
| Dimensions: | 13.31 in H x 12.17 in W x 10.04 in D |
| Frequency Rating: | 40 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 1200 Cycles |
| Operating Temperature: | 23 to 104 deg F |
| Series: | LC1F Series |
| Size: | 13.31 in H x 12.17 in W x 104 in D |
| Terminal Type: | Screw Clamp |
| Type: | Contactor |
| Wattage: | 120 W |
| Connection type: | Screw Clamp |
| Country of origin: | CZ |
| Mounting type: | Plate |
| Power factor: | 1420 to 1920 VA |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03606485242538 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8057.07 / Each
Quantity:
- Schneider Electric LC1F1250, Contactor, LC1F Series, 110 to 600 V AC,28 to 250 V DC Coil, 1260 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 120 W Wattage, 3NO Contact Configuration, 1260 A Contact, Power Factor: 1420 to 1920 , Screw clamp Connection, 13.31 in H x 12.17 in W x 104 in D Size, Screw Clamp Terminal, 1200 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.31 in H x 12.17 in W x 10.04 in D Dimensions
LC1F1250 Application
Resistive loadLC1F1250 Item Features
- The TeSys F contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Solid State Overload Relays
- They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection
- They also include the following features Isolated N.C. trip contact, N.O. alarm contact
- Manual reset button
- Rotary dial for adjustable current settings with tamper resistant window
- Test trip button
- Momentary stop button and trip indicator
- Resistive load contactor application
- 8 kV uimp rated impulse withstand voltage
- III overvoltage category
- 3000 A 104 deg F (40 deg C) - 3 min5200 A 104 deg F (40 deg C) - 30 s4000 A 104 deg F (40 deg C) - 1 min2000 A 104 deg F (40 deg C) - 10 min8000 A 104 deg F (40 deg C) - 10 s icw rated short-time withstand current
- 0.12 mOhm - Ith 1260 A 50 Hz average impedance
- 1000 V IEC 60947-4-1 1500 V VDE 0110 group C ui rated insulation voltage
- 40 to 80 ms closing with LX1/LX9 coil100 to 200 ms opening with LX1/LX9 coil60 to 70 ms closing with LX4 coil40 to 50 ms opening with LX4 coil operating time
- 1 Mcycles mechanical durability
- TH protective treatment
LC1F1250 Standards
CB;UL;CSA;CQC;CE;UKCA;CCC;IEC 60947-1;EN 60947-1;JIS C8201-4-1;EN 60947-4-1;IEC 60947-4-1SKU #2398366Part Number #LC1F1250UNSPSC39121529UPC03606485242538
