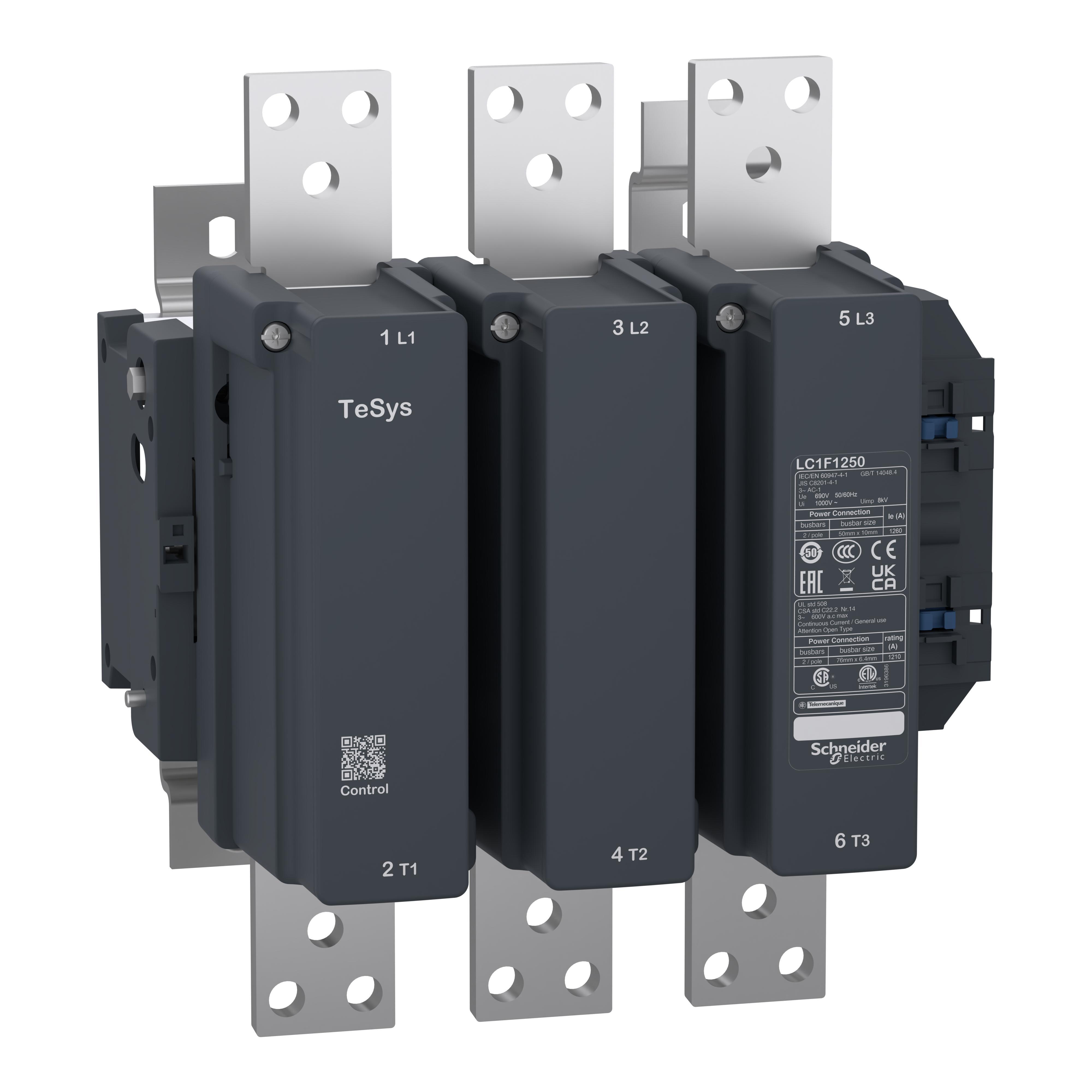

Schneider Electric LC1F1250F7
Part Number # LC1F1250F7
SKU # 2466299
LC1F1250F7
Schneider Electric LC1F1250F7
Part Number # LC1F1250F7
SKU # 2466299
$8439.76 / Each
Square D (Schneider Electric) LC1F1250F7 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | LC1F1250F7 |
| SKU #: | 2466299 |
| Coil Voltage: | 110 V AC |
| Contact Configuration: | 3NO |
| Contact Rating: | 1260 A |
| Dimensions: | 13.31 in H x 12.17 in W x 10.04 in D |
| Frequency Rating: | 40 to 400 Hz |
| Operating Cycles: | 1200 Cycles |
| Operating Temperature: | 23 to 104 deg F |
| Series: | LC1F Series |
| Size: | 13.31 in H x 12.17 in W x 104 in D |
| Type: | Contactor |
| Wattage: | 120 W |
| Country of origin: | CZ |
| Mounting type: | Plate |
| Power factor: | 1650 VA |
| UNSPSC: | 39121529 |
| UPC: | 03606485242552 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8439.76 / Each
Quantity:
- Schneider Electric LC1F1250F7, Contactor, LC1F Series, 110 V AC Coil, 1260 A Maximum Load Current, 3 Pole, 40 to 400 Hz Frequency, 120 W Wattage, 3NO Contact Configuration, 1260 A Contact, Power Factor: 1650 , Screw clamp Connection, 13.31 in H x 12.17 in W x 104 in D Size, Screw Clamp Terminal, 1200 cycles Operating Cycles, 23 to 104 deg F Operating, Plate Mounting, 13.31 in H x 12.17 in W x 10.04 in D Dimensions
LC1F1250F7 Application
Resistive loadLC1F1250F7 Item Features
- High durability - 600 cycles/hour for operating rate
- High reliability - environments tolerance up to 55C
- Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
LC1F1250F7 Standards
CB;UL;CSA;CQC;CE;UKCA;CCC;EN 60947-1;IEC 60947-1;IEC 60947-4-1;JIS C8201-4-1;EN 60947-4-1SKU #2466299Part Number #LC1F1250F7UNSPSC39121529UPC03606485242552
Image provided may only be a representation of final product and may include optional equipment
