LC2D096BL

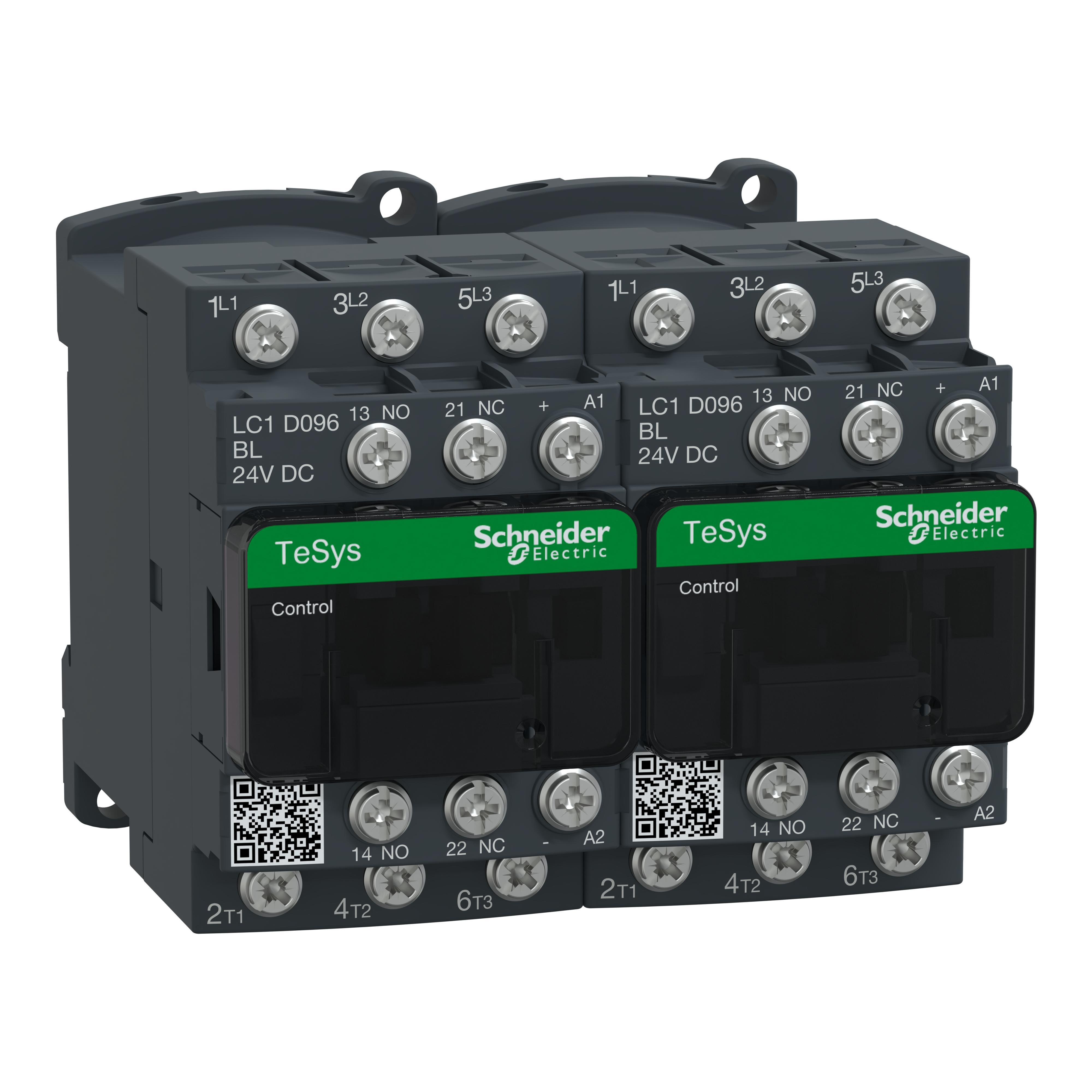

Schneider Electric LC2D096BL Tesys D Iec Contactor
Part Number # LC2D096BL
SKU # 2324311
$361.07 / Each
Schneider Electric LC2D096BL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D096BL |
| SKU #: | 2324311 |
| Coil Power Rating: | 7-1/2 hp at 575 to 600 VAC |
| Coil Voltage: | 24/690 V AC, 300 V DC, 24/690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 77 mm H x 90 mm W x 95 mm D |
| Enclosure Type: | Open |
| Frequency Rating: | 25 to 400, 25 to 400 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -20 to 60, -20 to 60 deg C |
| Series: | LC2D |
| Terminal Type: | Lugs Ring Tongue |
| Type: | Mechanical Reversing |
| Country of origin: | FR |
| Mounting type: | Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901548690 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$361.07 / Each
Quantity:
- Schneider Electric TeSys D IEC Contactor, Mechanical Reversing, Series: LC2D, 24/690 V AC, 300 V DC Coil, 9/25 A Maximum Load Current, 7-1/2 hp at 575 to 600 VAC Coil, 3 Pole, 25 to 400 Hz Frequency, 3NO Contact Configuration, 2 Auxiliary Contacts, Lugs Ring Tongue Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -20 to 60 deg C Operating, Rail/Surface Mounting, 77 mm H x 90 mm W x 95 mm D Dimensions
LC2D096BL Application
Industries, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC2D096BL Item Features
- AC, DC, low consumption DC control circuit
- TeSys D contactors have been designed for perfect integration in control systems
- They can be used to create motor starters for any type of application
- 24 VDC, power circuit, 690 VAC at 25 to 400 Hz power circuit, 300 VDC
- 1/2 hp at 115 VAC 60 Hz 1-phase, 1 hp at 230/240 VAC 60 Hz 1-phase, 2 hp at 200/208 VAC 60 Hz 3-phase, 2 hp at 230/240 VAC 60 Hz 3-phase, 5 hp at 460/480 VAC 60 Hz 3-phase, 7-1/2 hp at 575/600 VAC 60 Hz 3-phase, built-in bidirectional peak limiting diode suppressor
- https://www.youtube.com/embed/ZspiS_-OK5U
LC2D096BL Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCASKU #2324311Part Number #LC2D096BLUNSPSC39121529UPC00785901548690
