Part Number # LC2D09JL
SKU # 2395247
Image Disclaimers Message
LC2D09JL

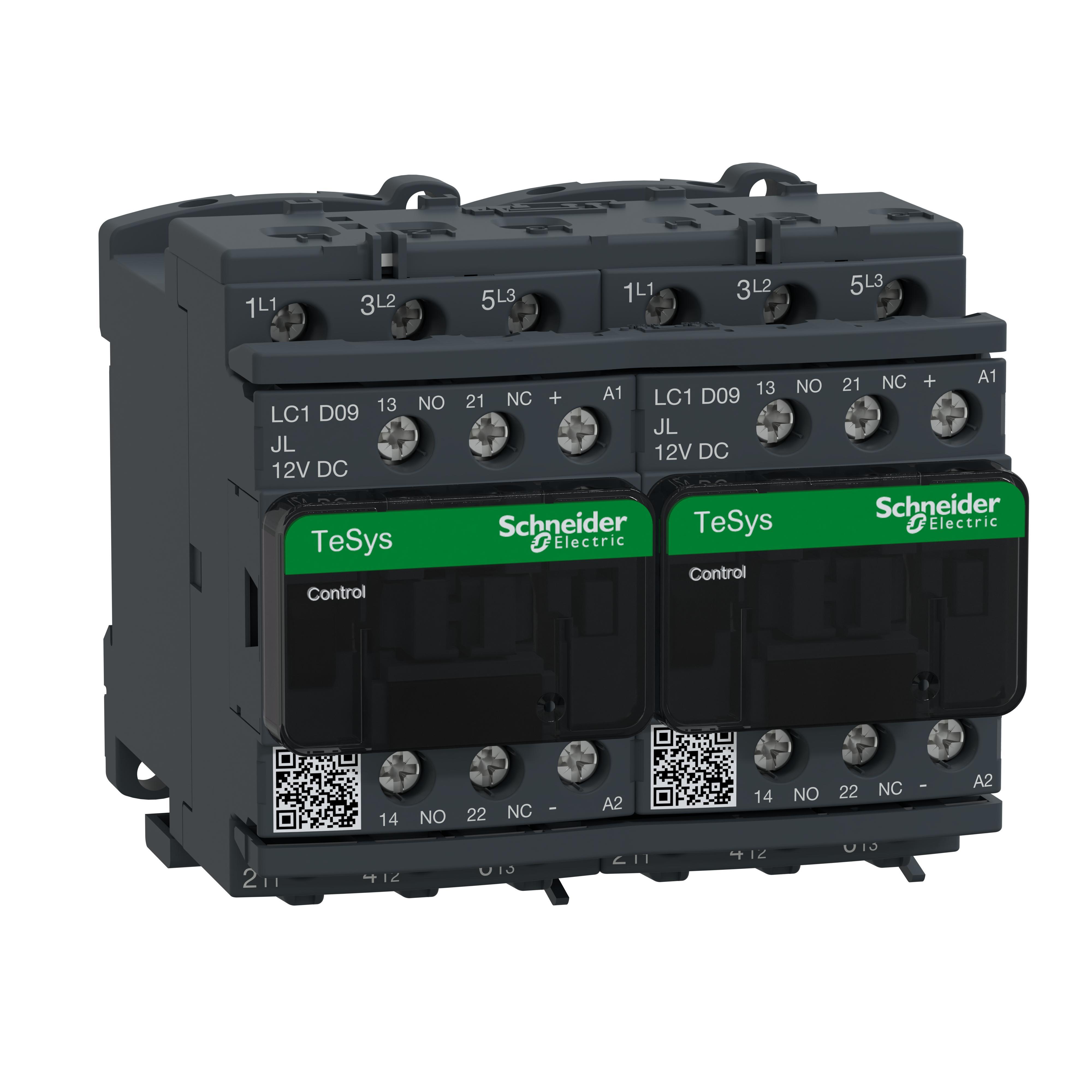

Schneider Electric LC2D09JL, Reversing Contactor, LC2D Series, 12 VDC Coil, 9 to 25 A Maximum Load Current, 115 VAC,230/240 VAC,200/208 VAC,230/240 VAC,460/480 VAC,575/600 VAC Coil, 3 Pole, 400 Hz Frequency, 0.2 W Wattage, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Power Factor: 5.5 , Screw clamp Connection, 33 in H x 3.54 in W x 3.74 in D Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles Operating Cycles, -40 to 140 deg F Operating, Front/Plate Rail Mounting, 3.03 in H x 3
Part Number # LC2D09JL
SKU # 2395247
$318.94 / Each
Schneider Electric LC2D09JL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D09JL |
| SKU #: | 2395247 |
| Coil Power Rating: | 115 VAC,230/240 VAC,200/208 VAC,230/240 VAC,460/480 VAC,575/600 VAC |
| Coil Voltage: | 12 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 3.03 in H x 3.54 in W x 3.74 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 400 Hz |
| Number of Auxiliary Contacts: | 1 NO + 1 NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 140 deg F |
| Series: | LC2D Series |
| Size: | 33 in H x 3.54 in W x 3.74 in D |
| Terminal Type: | Screw Clamp |
| Type: | Reversing Contactor |
| Wattage: | 0.2 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Mounting type: | Front/Plate Rail |
| Power factor: | 5.5 kW |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389110541441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$318.94 / Each
Quantity:
- Schneider Electric LC2D09JL, Reversing Contactor, LC2D Series, 12 VDC Coil, 9 to 25 A Maximum Load Current, 115 VAC,230/240 VAC,200/208 VAC,230/240 VAC,460/480 VAC,575/600 VAC Coil, 3 Pole, 400 Hz Frequency, 0.2 W Wattage, 3NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Power Factor: 5.5 , Screw clamp Connection, 33 in H x 3.54 in W x 3.74 in D Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles Operating Cycles, -40 to 140 deg F Operating, Front/Plate Rail Mounting, 3.03 in H x 3.54 in W x 3.74 in D Dimensions
LC2D09JL Item Features
- The TeSys D contactors and overload relays are the largest selling line of contactors and starters in the world
- They offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D Green contactor simplify your maintenance services with 90% less references needed.TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Three levels of ratings: Available at 100 kA on systems with fuses, up to 600 volts
- Available at 65 kA on systems with circuit breakers, up to 480 volts and up to 32 amps
- Available at 100 kA on systems with circuit breakers, up to 480 volts and greater than 32 amps
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
LC2D09JL Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCASKU #2395247Part Number #LC2D09JLUNSPSC39121529UPC03389110541441
